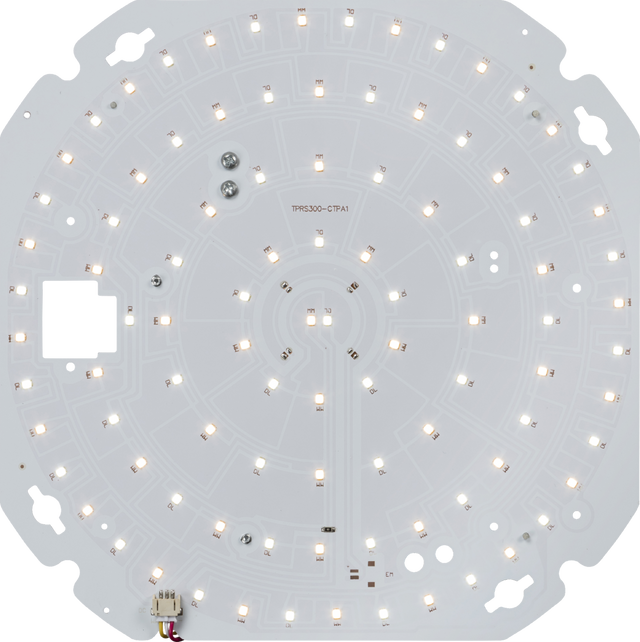

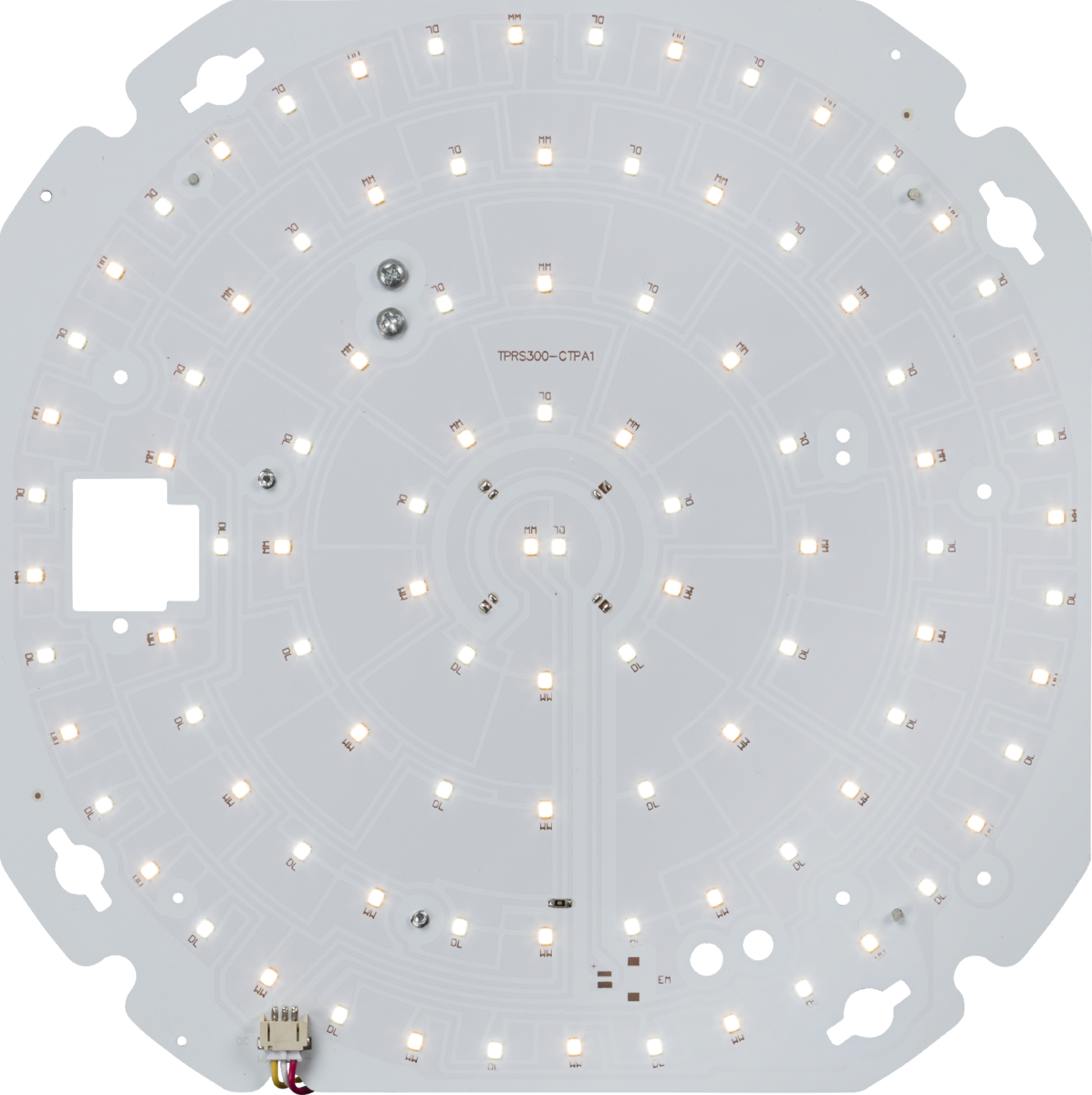

TENAX 230V CCT Adjustable LED Gear Tray
About this product
About this product
Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays.
- 3000K/4000K/5700K adjustable
- 10W/15W/20W adjustable
- Push-fit terminals with loop-in-loop-out capabilities
- Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor, with daylight sensor, emergency with a daylight sensor
Please note that casing is not included and must be purchased separately.
£
13
69
RRP: £15.19
Save £1.50
FAST delivery by Order within
Technical Details
Specifications
Class
II
IP Rating
IP20
Construction
Aluminium
Primary Voltage
230V 50Hz

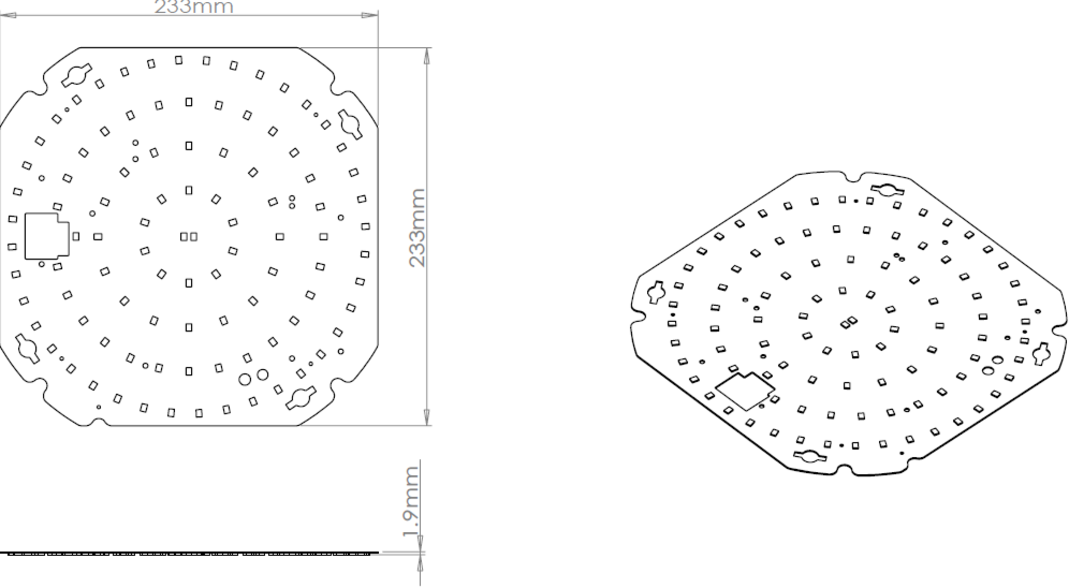

Dimensions
Width
235 mm
Length
235 mm
Projection
28 mm
Lamp
L70B50
40,000
Dimmable
No
Beam Angle
120
Lamp Technology
SMD LED
Energy Rating (Class) post 2021 SLR
D
Driver
Driver Type
Constant Current
Photometric
CCT
3000/4000/5700 K
CRI
>85
Lumens
1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm
Wattage
10/15/20
Light Colour
CCT
Efficacy (Light source)
151/147/141 lm/W
Specifications
| Class | II |
|---|---|
| IP Rating | IP20 |
| Construction | Aluminium |
| Primary Voltage | 230V 50Hz |
Dimensions
| Width | 235 mm |
|---|---|
| Length | 235 mm |
| Projection | 28 mm |
Lamp
| L70B50 | 40,000 |
|---|---|
| Dimmable | No |
| Beam Angle | 120 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | D |
Driver
| Driver Type | Constant Current |
|---|
Photometric
| CCT | 3000/4000/5700 K |
|---|---|
| CRI | >85 |
| Lumens | 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm |
| Wattage | 10/15/20 |
| Light Colour | CCT |
| Efficacy (Light source) | 151/147/141 lm/W |
