Product Overview & Key Benefits

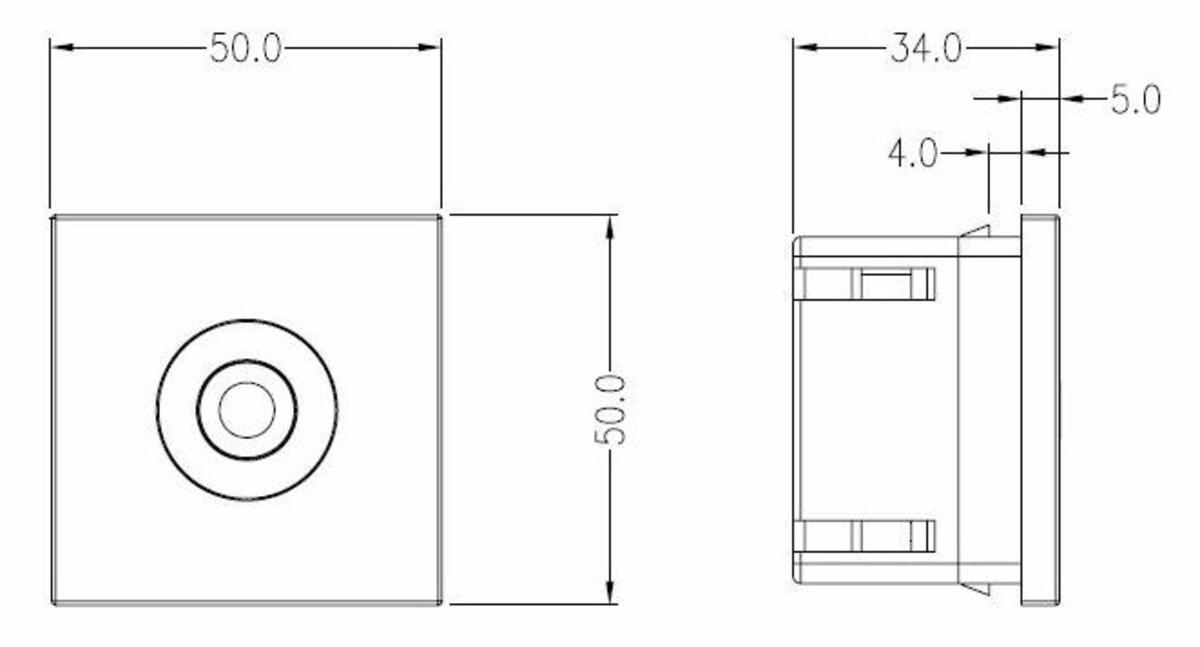

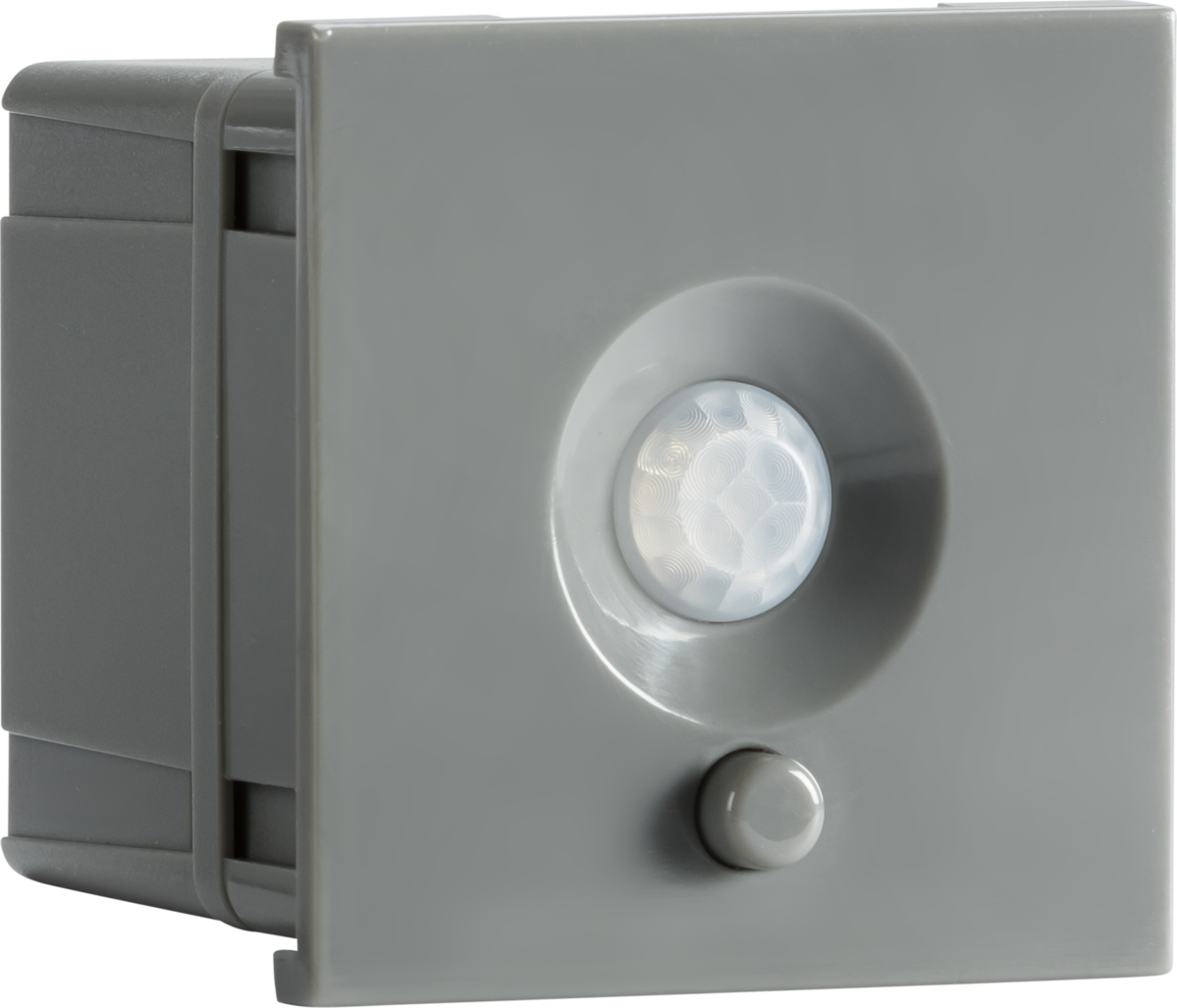

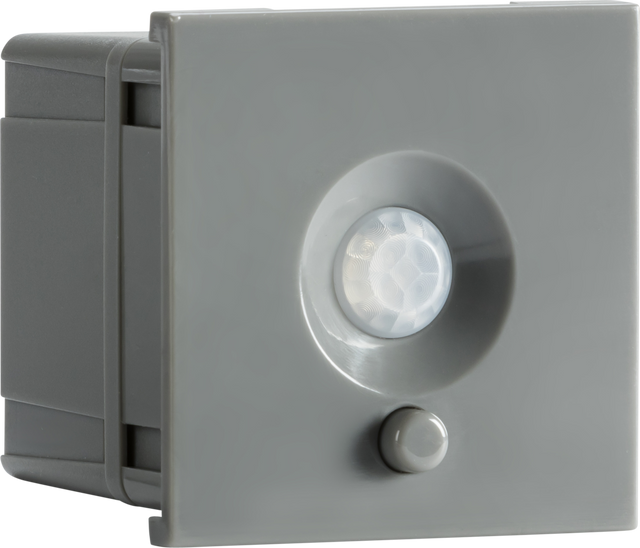

The 120° PIR Sensor Module is designed for efficient and reliable infrared detection. This module, perfect for residential and commercial use, offers an override function that allows users to manually activate the device while maintaining energy efficiency. With a sleek grey finish, it fits seamlessly into euro modular frames of 50 x 50 mm and caters to various lighting applications, specifically optimised for LED installations.

Technical Specifications & Product Details

• Voltage:220-240V 50Hz
• Loading Capacity:Max. 100W LED and 200W Incandescent
• Operation Type:Passive Infrared
• Adjustable Time Setting:Pre-set to 3 minutes
• Field of Detection:120°
• Detection Range:Up to 5m
• Override Function:Manual switch to toggle between AUTO and ON modes
• Back Box Compatibility:Requires a 47mm back box
• Sensitivity:Lux sensitive with fixed time operation
• Wiring Requirement:Live and Neutral wiring must be connected
• Weight:0.07 kg
• IP Rating:IP20
• Material:Constructed from durable polycarbonate

Ideal Uses & Applications

Commonly used in various settings, the 120° PIR Sensor Module is ideal for:

• Home automation systems
• Commercial spaces such as offices and retail
• Hospitality environments, providing safety and convenience
• Energy-efficient lighting solutions in homes and businesses

Energy Efficiency & Cost Savings

This PIR Sensor Module aids in reducing energy consumption significantly. By activating lights only when necessary, users can potentially save up to 50% on electricity costs. Its compatibility with LED loads also enhances overall energy savings, making it an eco-friendly choice in lighting control.
