Knightsbridge: EMEXITL, IP20 LED Emergency Exit Sign, 230V, Arrow Up Legend, 4W, White, Maintained/Non-Maintained
About this product
The LED emergency exit sign offers dual mounting options and a unique hanger and hinge system for wall or ceiling installations. Designed with safety in mind, it supports a minimum illumination time of up to 3 hours during power outages, ensuring clearly marked escape routes.
- Suitable for wall and ceiling mounting with a unique hanger and hinge system.
- Supplied as standard with Arrow Up legend.
- Maintained or non-maintained operation available.
- Powered by a reliable LiFePO4 battery.
- Custom legends available (sold separately).
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | White |
| IP Rating | IP20 |
| Construction | Polycarbonate |
| Primary Voltage | 230V 50Hz |

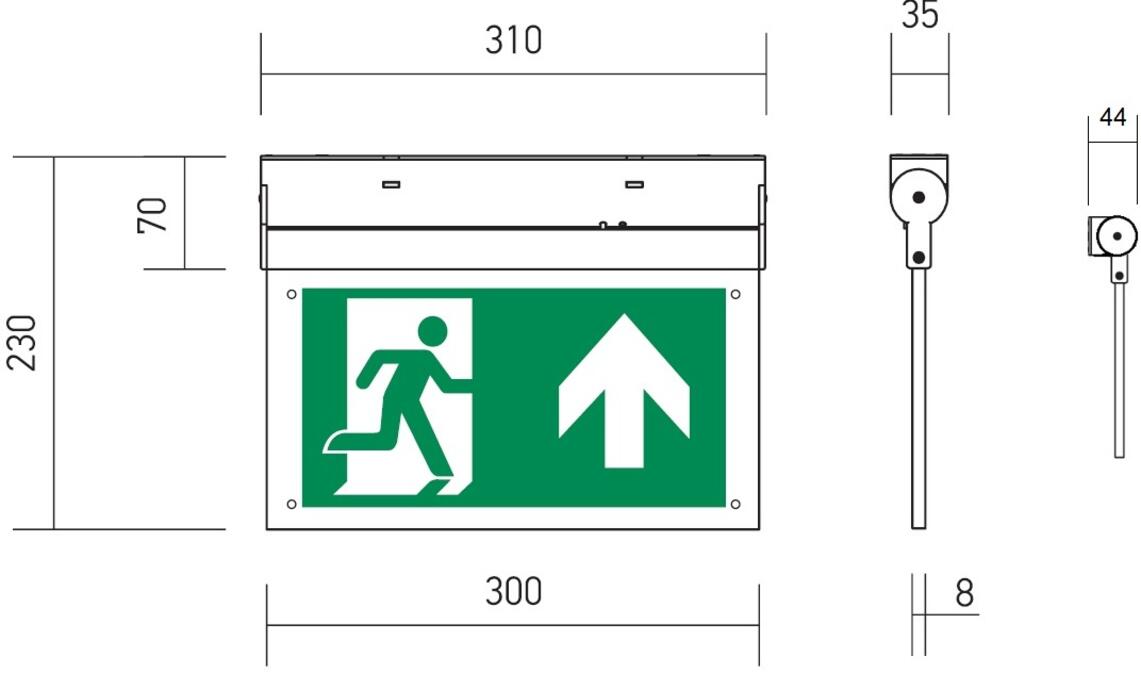

Dimensions
| Width | 35 mm |
|---|---|
| Height | 230 mm |
| Length | 310 mm |
| Projection | 44 mm |
Lamp
| Dimmable | No |
|---|---|
| Beam Angle | 110 |
| Lamp Included | Yes |
| Lamp Technology | SMD LED |
Luminaire
| Emergency | Maintained / Non-maintained (not Switched) |
|---|
Photometric
| CCT | 6000 K |
|---|---|
| CRI | >80 |
| Lumens | 90 lm |
| Wattage | 4 |
| Light Colour | Daylight |
| Photometric IES | EMEXITL.LDT |
| Photometric LDT | EMEXITL - EM mode.ldt |
| Lumens (Em. mode) | 48 lm |
| Efficacy (Light source) | 25 lm/W |
| Max Viewing Distance (Em. Sign) | 20 m |
LED Emergency Exit Sign with Arrow Up Legend features
