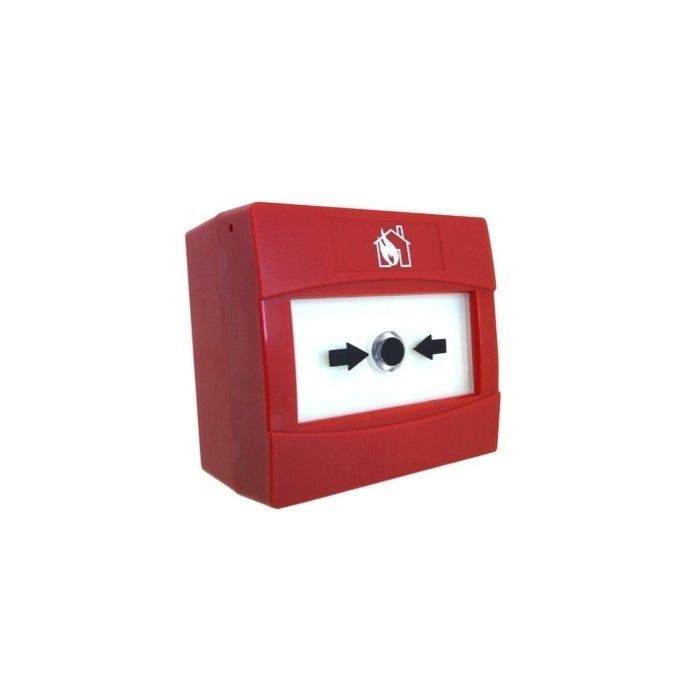

C-Tec CA470 CAST Addressable Manual Call Point Red
The C-Tec CA470 is a high-quality addressable manual call point designed for use with C-TEC's XFP & ZFP 'CAST' protocol Addressable Fire Panels.
- LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13.
- Surface or flush mountable for flexible installation options.
- Onboard short-circuit loop isolator for enhanced system reliability.
- Smooth-action resettable element mimics the feel of breaking glass.
- Red LED alarm ring that illuminates the call point face upon activation.
- Photoluminescent operating window remains visible for up to 5 minutes.
- 5mA typical alarm current (370µA typical quiescent @ 22-40V DC).
- IP42 rated (IP67 rated version also available, order code CA47067).
- Multiple colour options available including yellow, green, blue, and white.
Ideal for both domestic DIY and commercial applications, ensuring fast response in emergency situations.
-
Download
- C-Tec CA470
Specifications
ITM002033
C-Tec
Addressable Call Point
22-40 V DC
370 µA
5 mA
0.18 kg
Dimensions
87 mm
88 mm
62 mm
Specifications
ITM No. | ITM002033 |
---|---|
Manufacturer | C-Tec |
Product Type | Addressable Call Point |
Operating Voltage | 22-40 V DC |
Quiescent Current | 370 µA |
Alarm Current | 5 mA |
Weight | 0.18 kg |
Dimensions
Width | 87 mm |
---|---|
Height | 88 mm |
Depth | 62 mm |
C-Tec CA470 CAST Addressable Manual Call Point Red features

C-Tec CA470 CAST Addressable Manual Call Point, Red, IP42 Rated, Universal Mounting, CA470
