CASA Active 10" Subwoofer (300W)
About this product
CASA Active Sub Cabinets

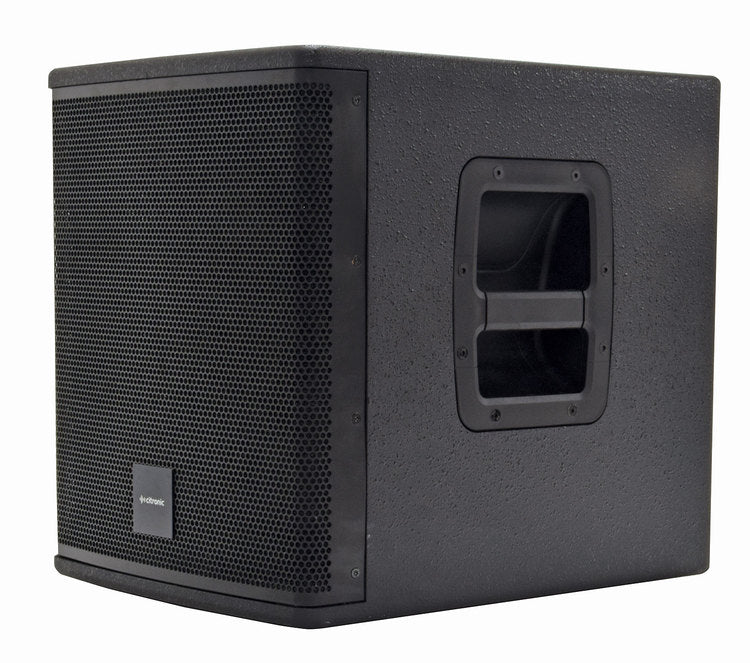

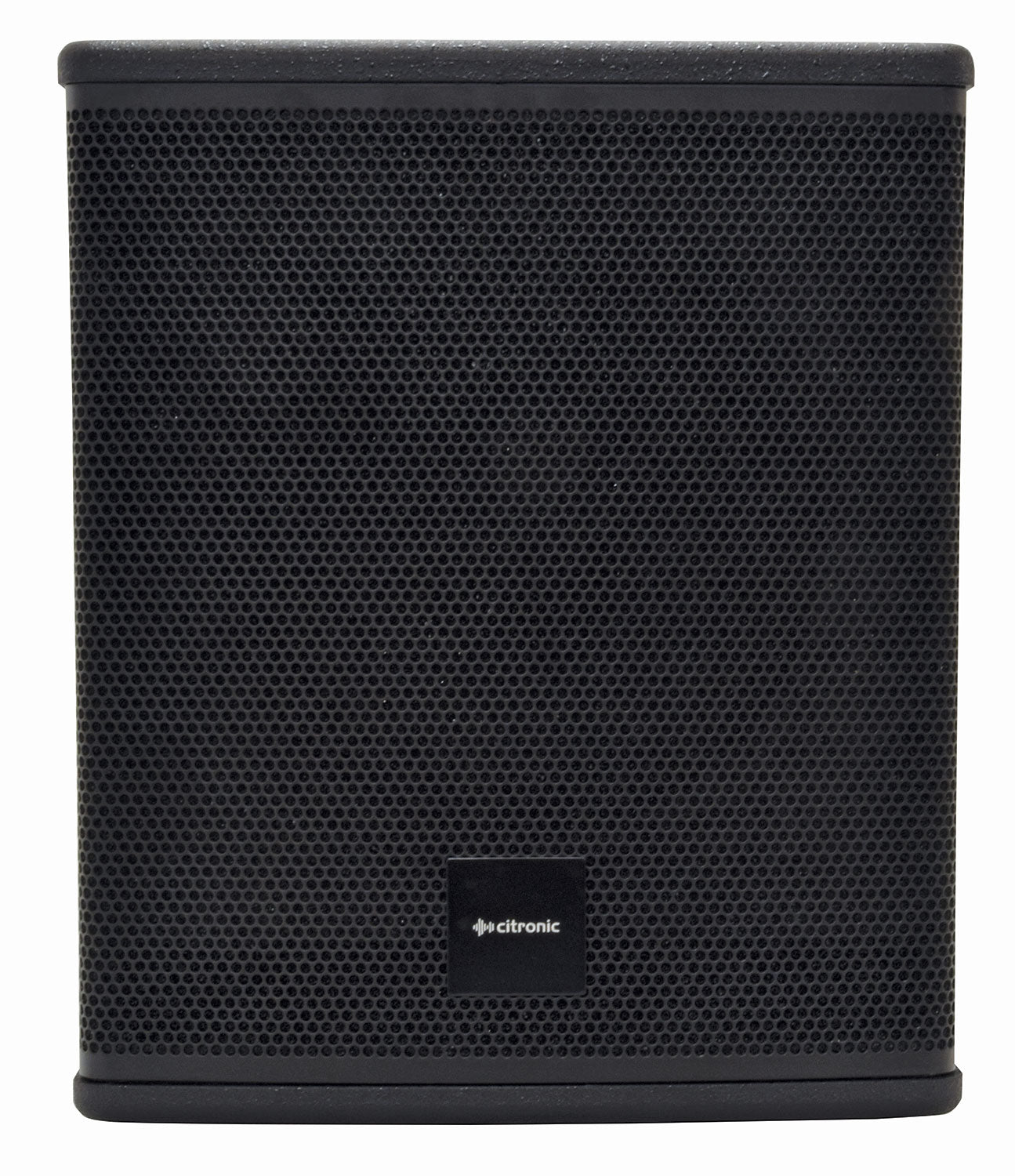

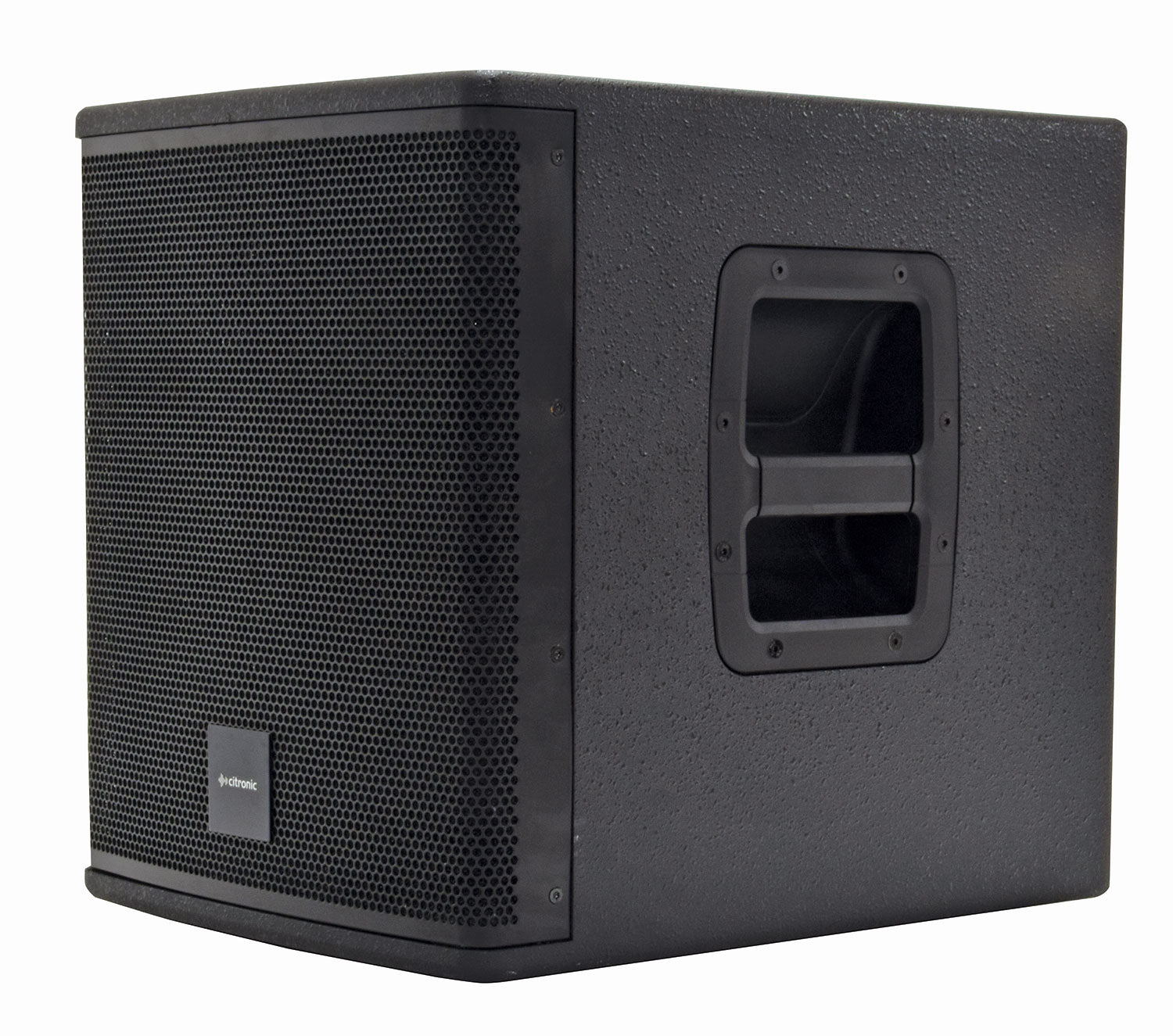

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and a 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system.

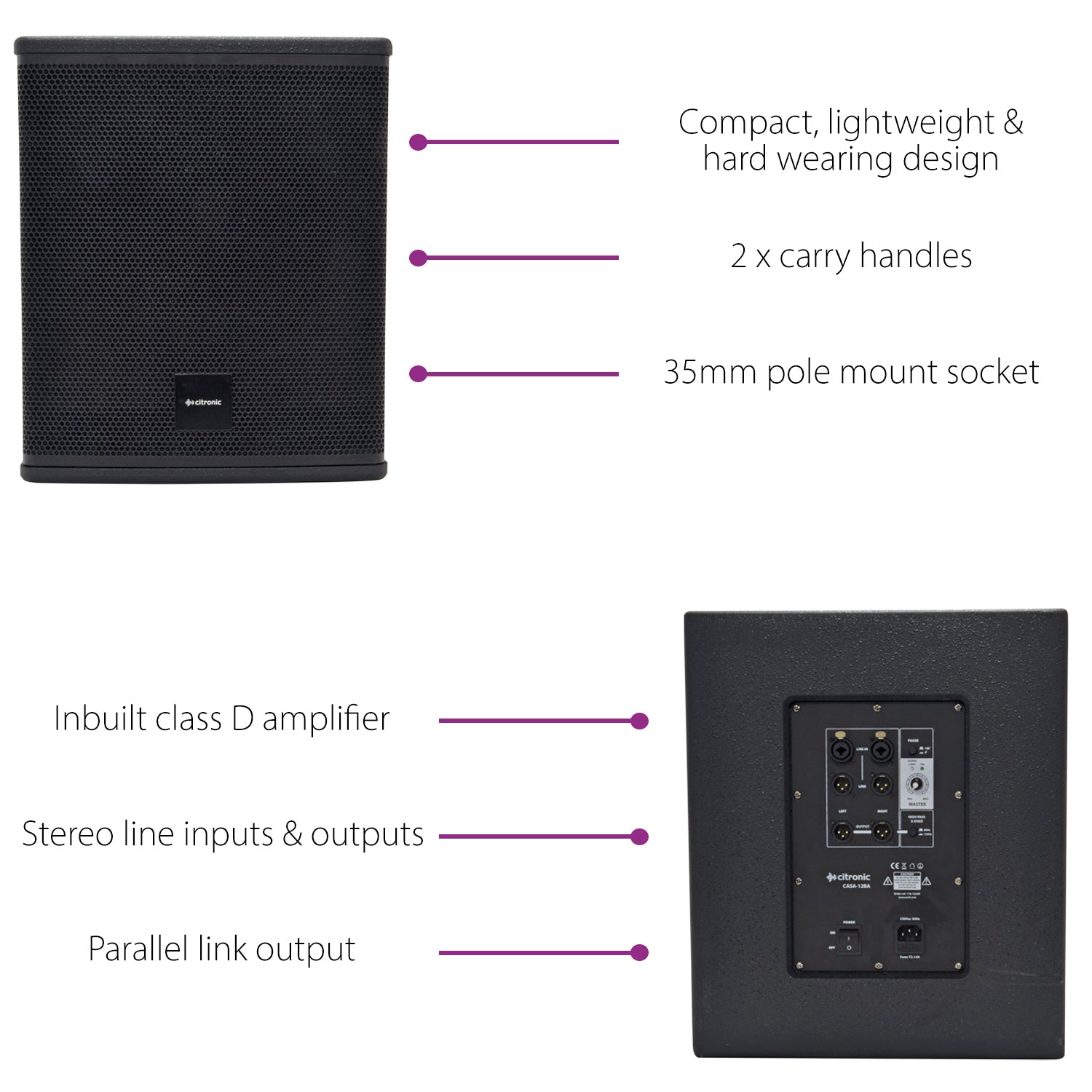

- Compact and lightweight design
- 15mm MDF cabinet with polyurea finish
- 2 x side carry handles
- 35mm pole mount socket

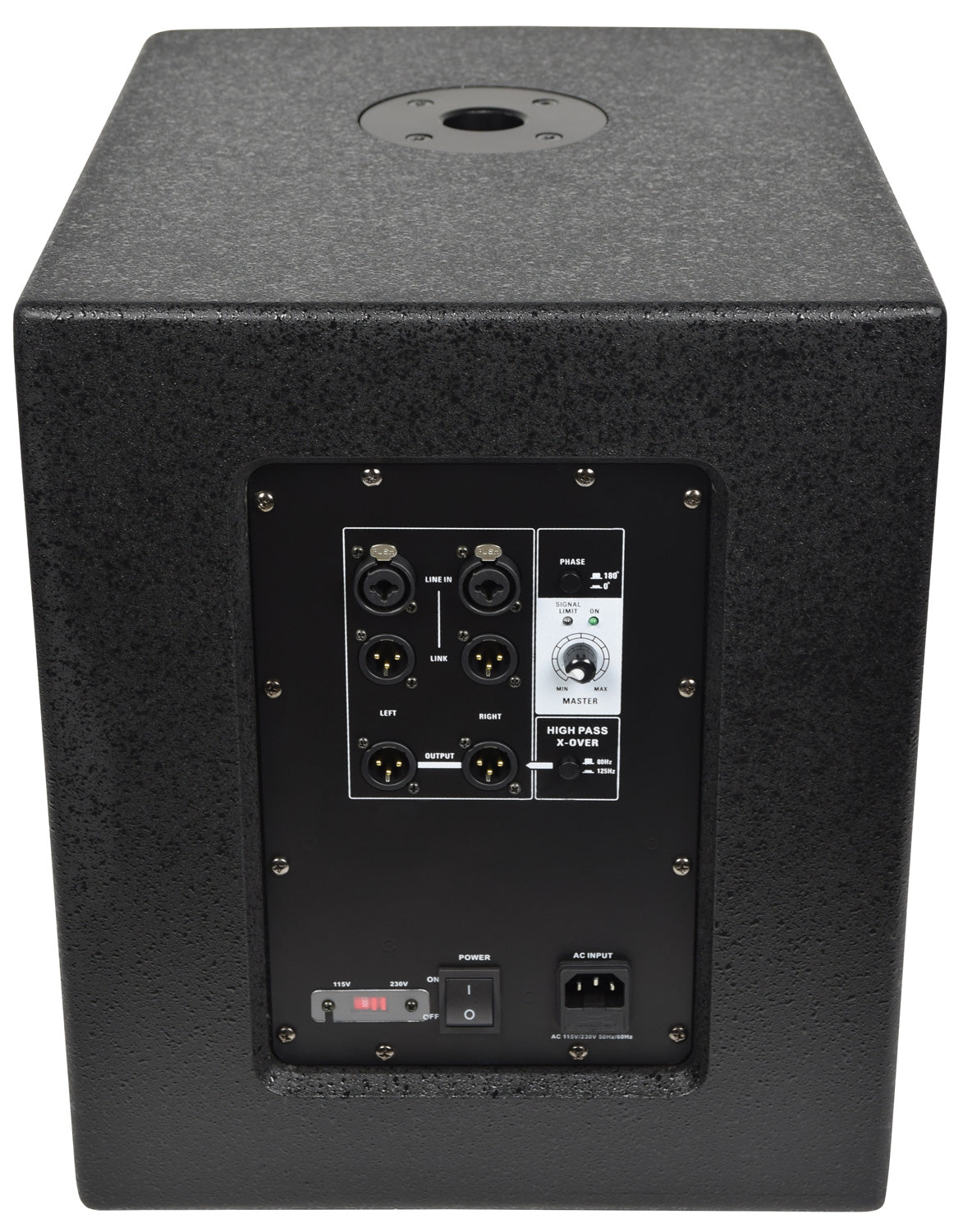

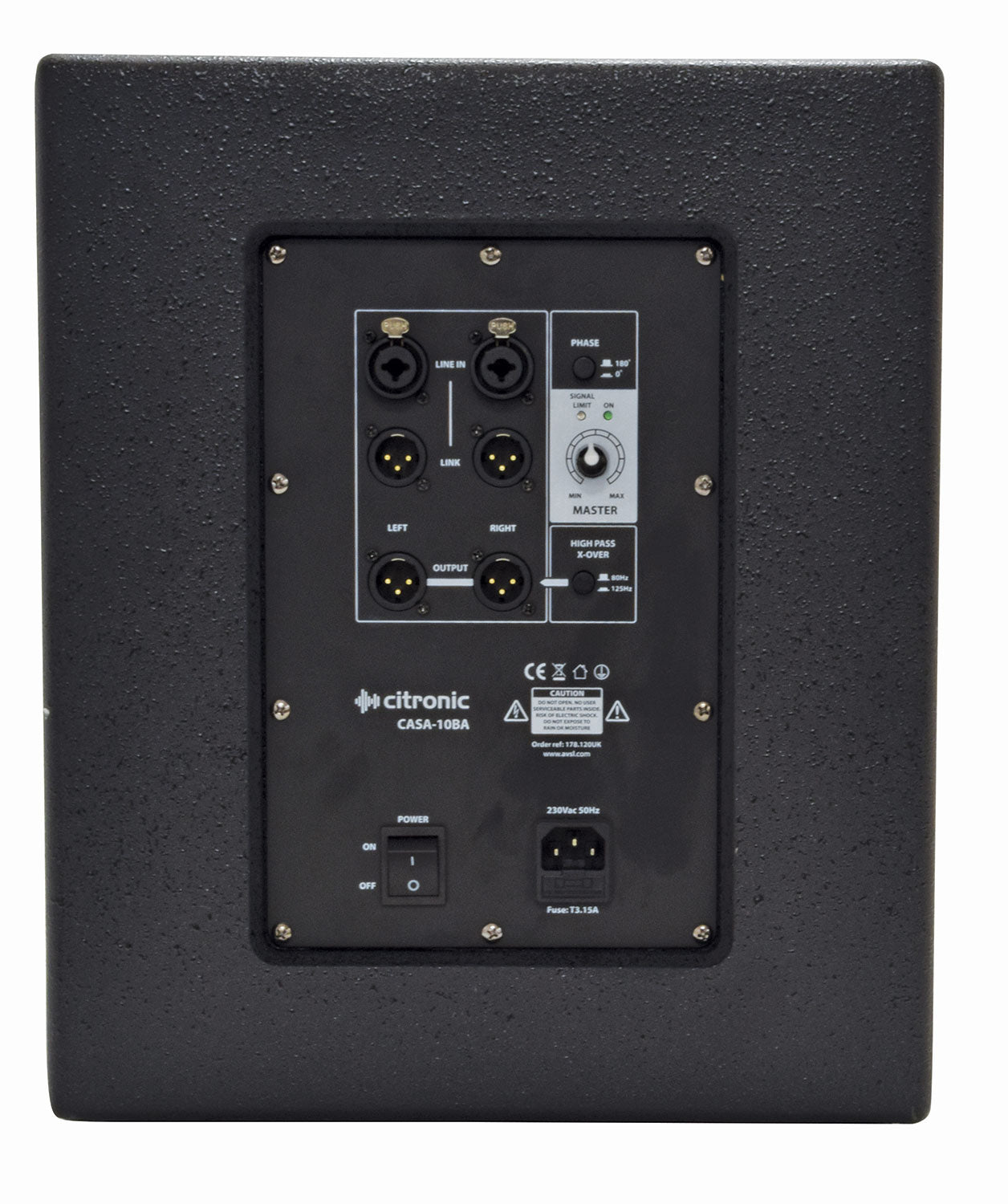

The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
Specifications
Specifications
| Weight | 16.23 kg |
|---|---|
| SPL max. | 120.0 dB |
| Output Power (RMS) | 300W |
| Peak Output | 1000W |
| Frequency Response | 60 - 150 Hz |
| Construction | 15mm MDF with durable texture paint finish |
| Line Inputs | L+R balanced XLR |
| Line Outputs | L+R balanced XLR & L+R link XLR |
| Power Supply | 230 Vac, 50 Hz (IEC) |
| Sub Driver | 250 mm (10") |
| Voice Coil | 50 mm (2") |
| Controls | Output level, phase switch, high pass x-over (output) |
CASA Active Sub Cabinets, 10", 300W, 178.120UK
