Citronic: 178.741UK, CUBA Full Range Wooden PA Cabinet, 10", 270W, White, 12.5 kg
About this product
CUBA Full Range Wooden PA Cabinets

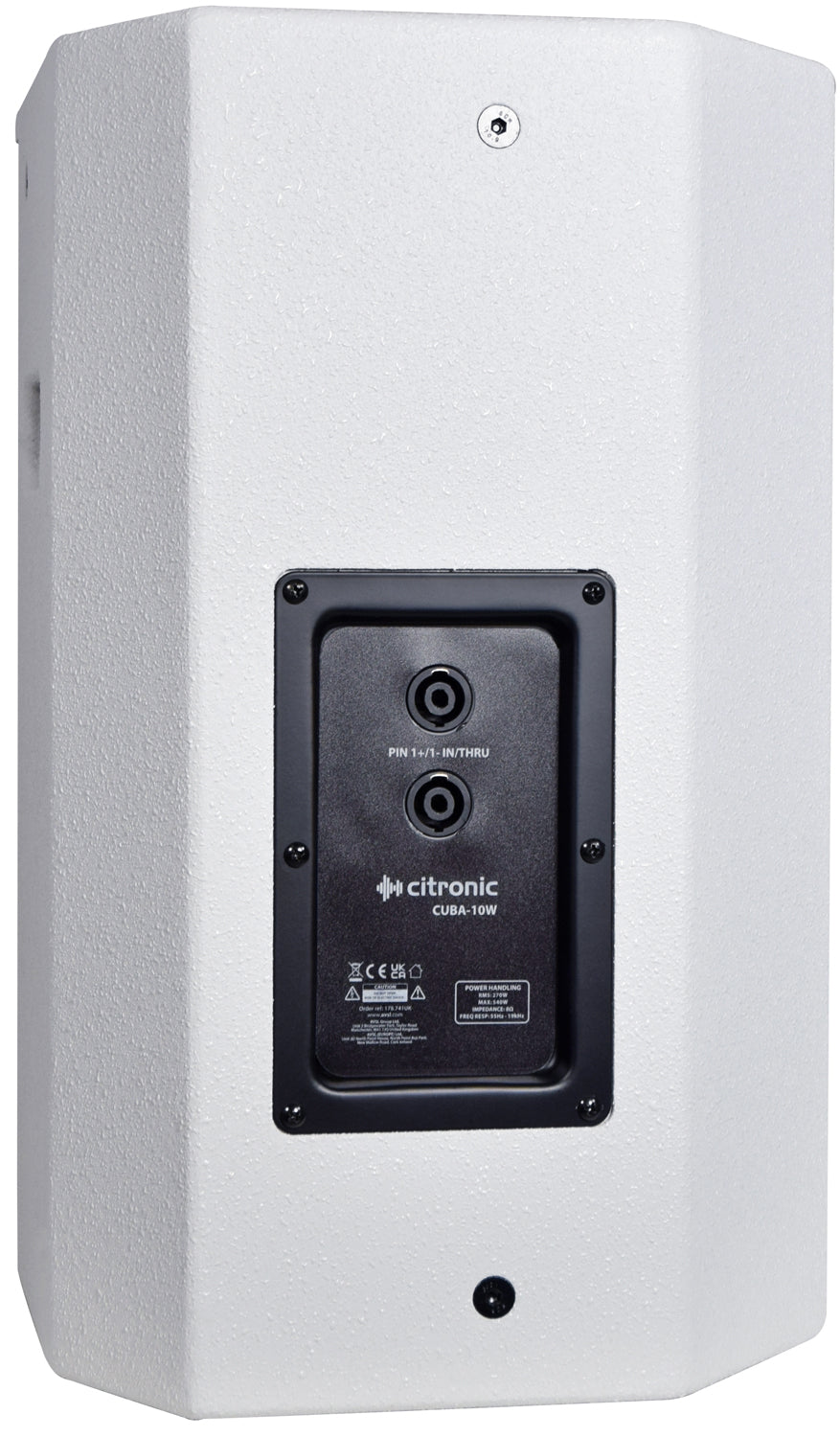

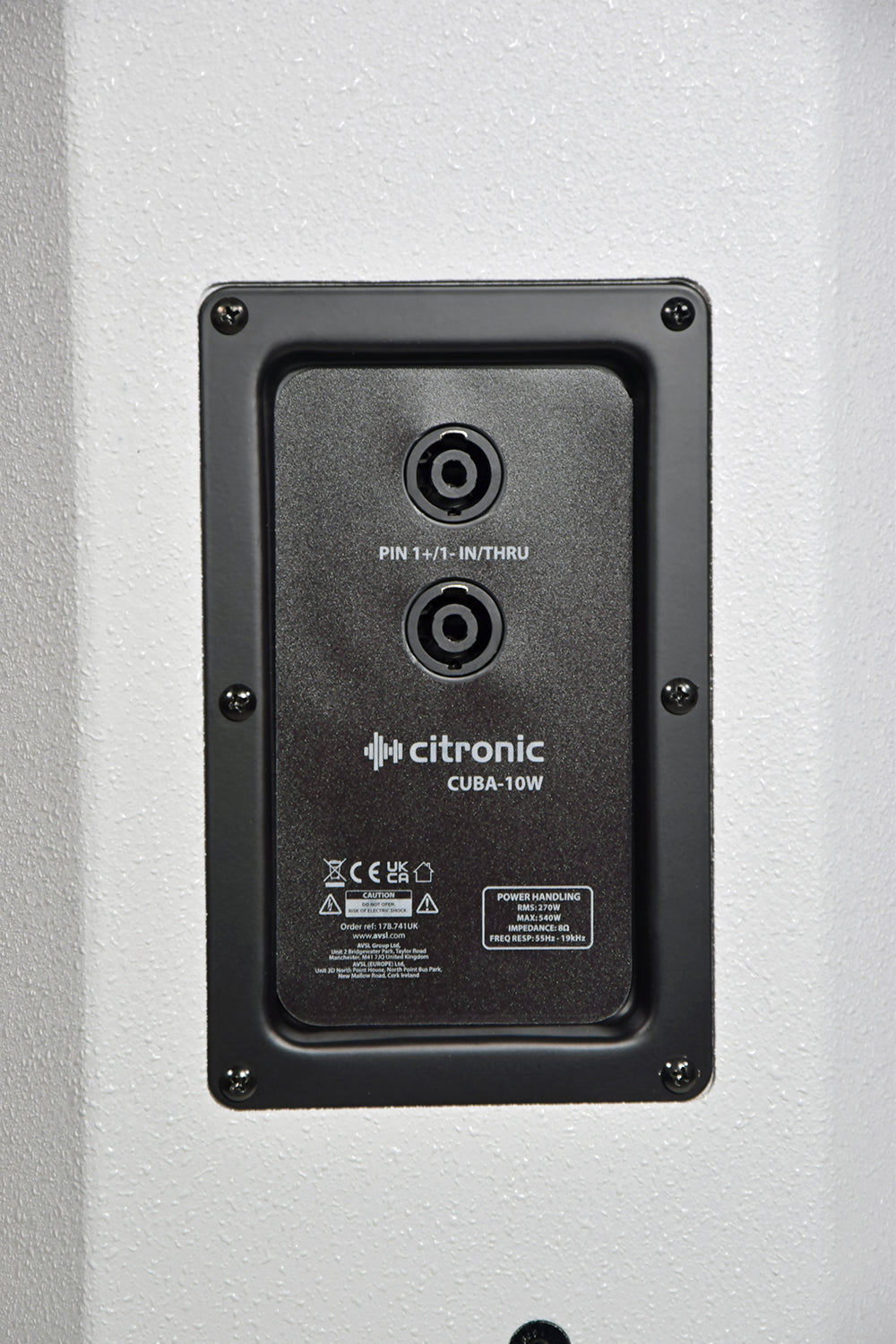

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying; multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
- Hard-wearing polyurea cabinet coating

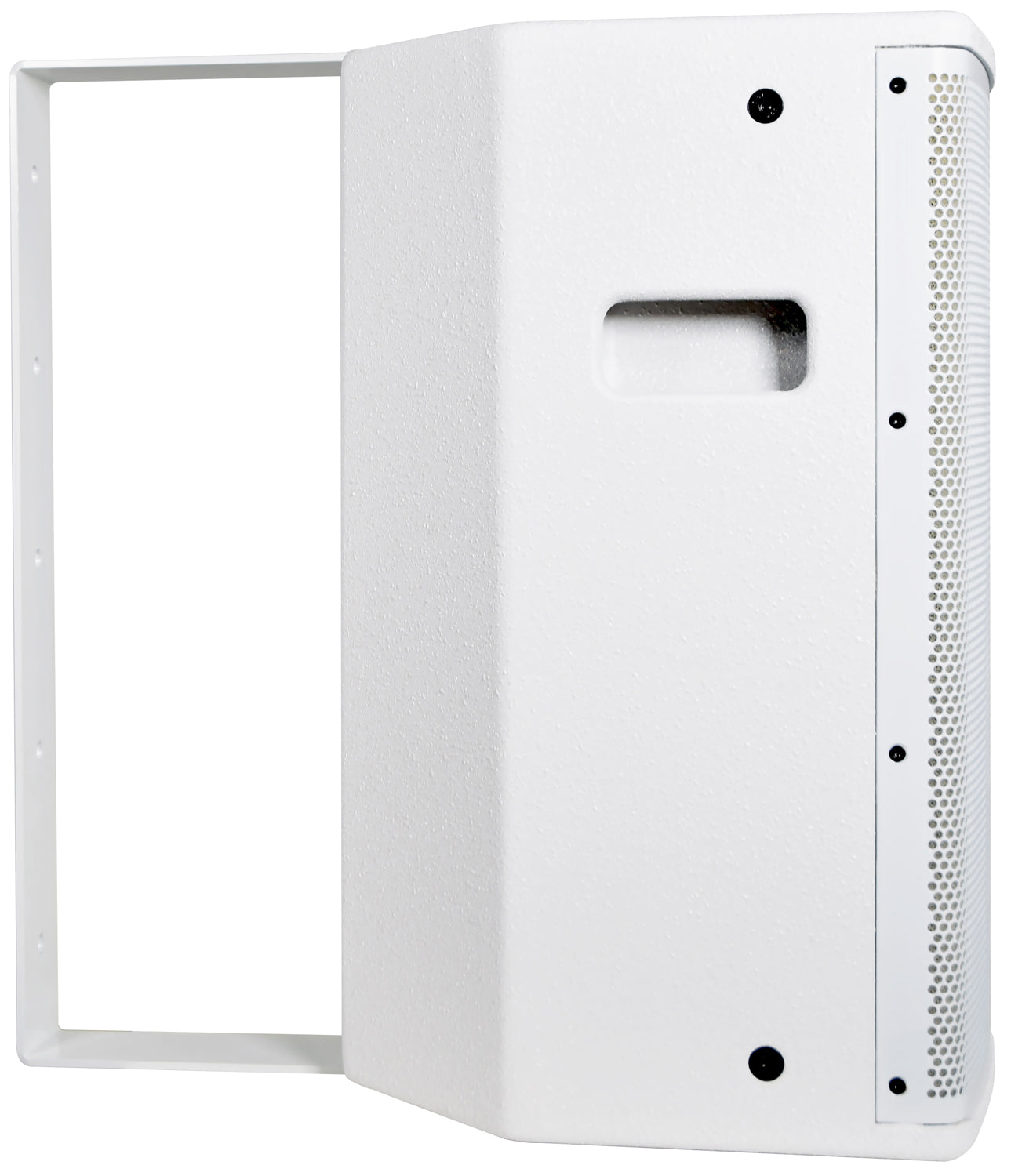

- CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers
Specifications
Specifications
| Input | 2 x parallel SPK socket |
|---|---|
| Colour | White |
| Weight | 12.5 kg |
| Max. SPL | 122.5 dB |
| HF driver | 35mmØ (1.35") Ti compression driver |
| Impedance | 8 Ohms |
| Voice coil | 50mmØ (2") |
| Main driver | 250mmØ (10") |
| Sensitivity | 95 dB |
| Construction | Polyurea coated MDF + powder-coated steel grille |
| HF dispersion | 100°/50° x 55° |
| Frequency response | 60 Hz-20 kHz |
| Power handling : max | 540 W |
| Power handling : rms | 270 W |
CUBA 10" Passive Speaker Cabinet - White features
