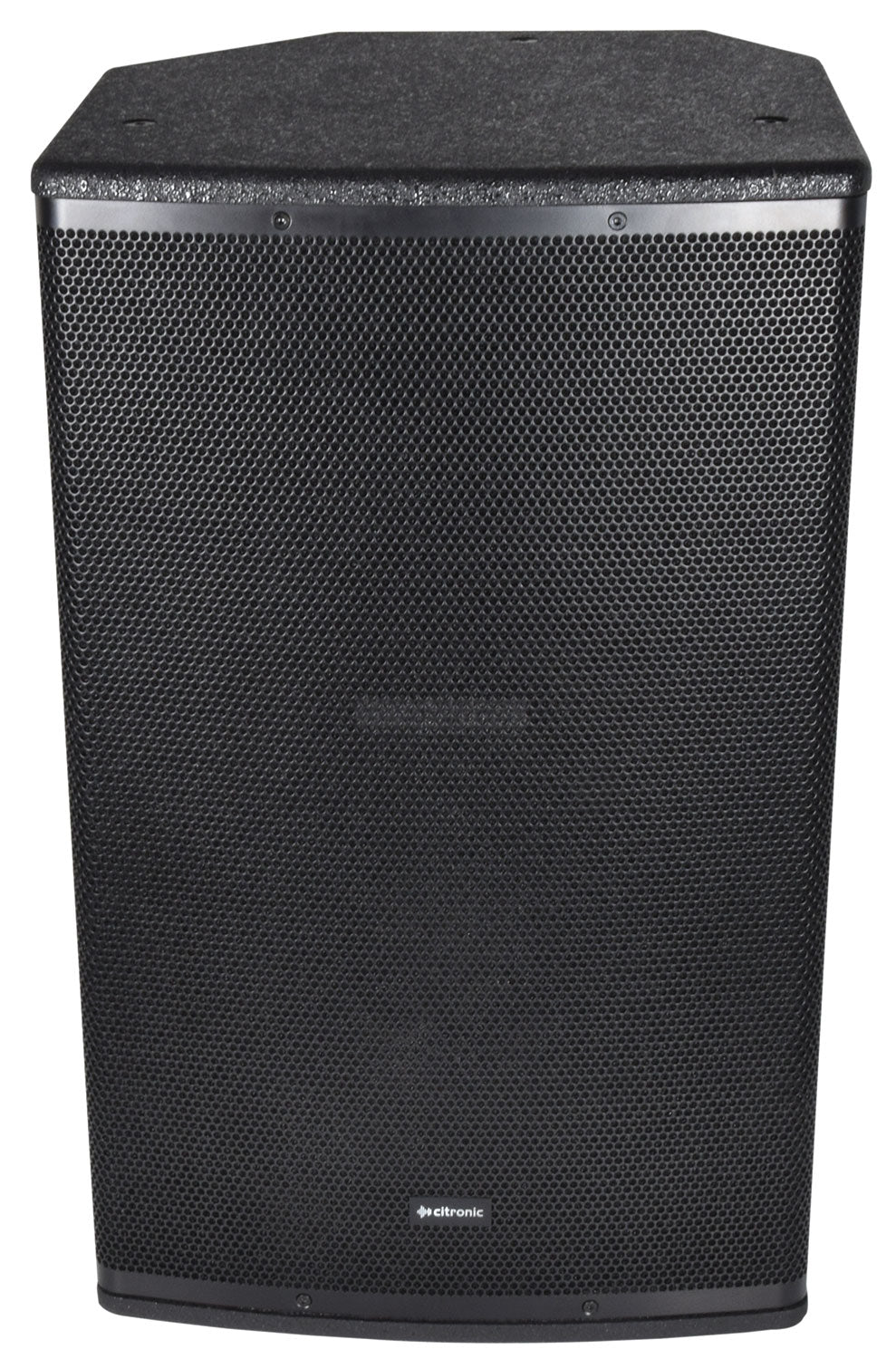

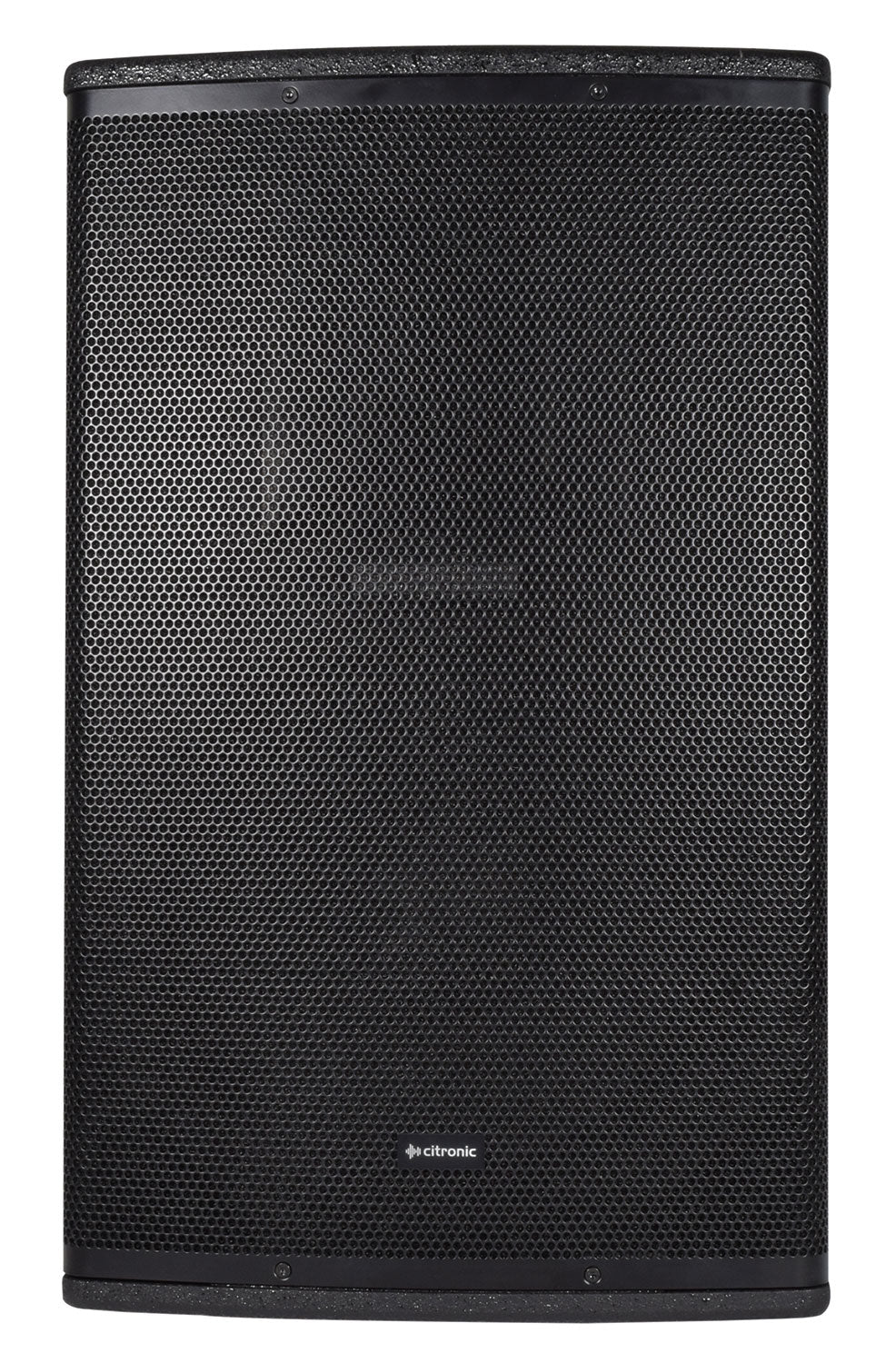

Citronic: 178.713UK, CUBA Full Range Wooden PA Cabinet, 12 Inch, 400W, Black
About this product
CUBA Full Range Wooden PA Cabinets

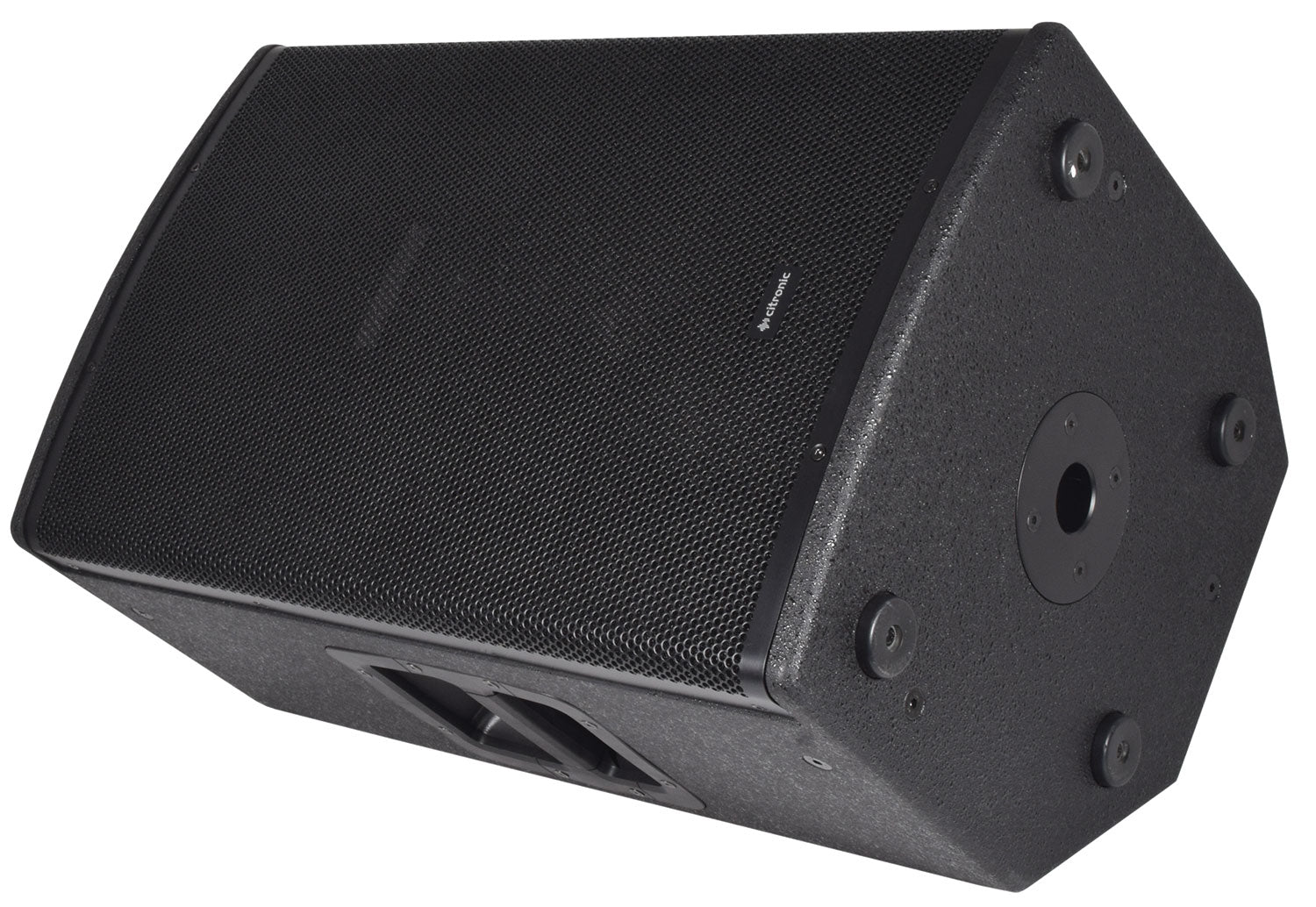

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel features 2 parallel inputs for Speakon connection, enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
- Hard-wearing polyurea cabinet coating
- CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers
Specifications
Specifications
| Input | 2 x parallel SPK socket |
|---|---|
| Colour | Black |
| Weight | 18.0 kg |
| Max. SPL | 123.0 dB |
| HF Driver | 35mmØ (1.35") Ti compression driver |
| Impedance | 8 Ohms |
| Voice Coil | 64mmØ (2.5") |
| Main Driver | 300mmØ (12") |
| Sensitivity | 98 dB |
| Construction | Polyurea coated MDF + powder-coated steel grille |
| HF Dispersion | 90° x 60° |
| Frequency Response | 45Hz-20kHz |
| Power Handling Max | 800 W |
| Power Handling RMS | 400 W |
CUBA Full Range Wooden PA Cabinets (400W, Black) features
