Mercury - 100U 75 Ohms Foam Filled Coaxial Cable, CCA Braid, 100m, 808.151UK

£ 42 49

(Incl. VAT) RRP: £49.18

100U Coaxial Cable (75 Ohm, 100m)
About this product

100U 75 Ohms Foam Filled Coaxial Cable - CCA Braid

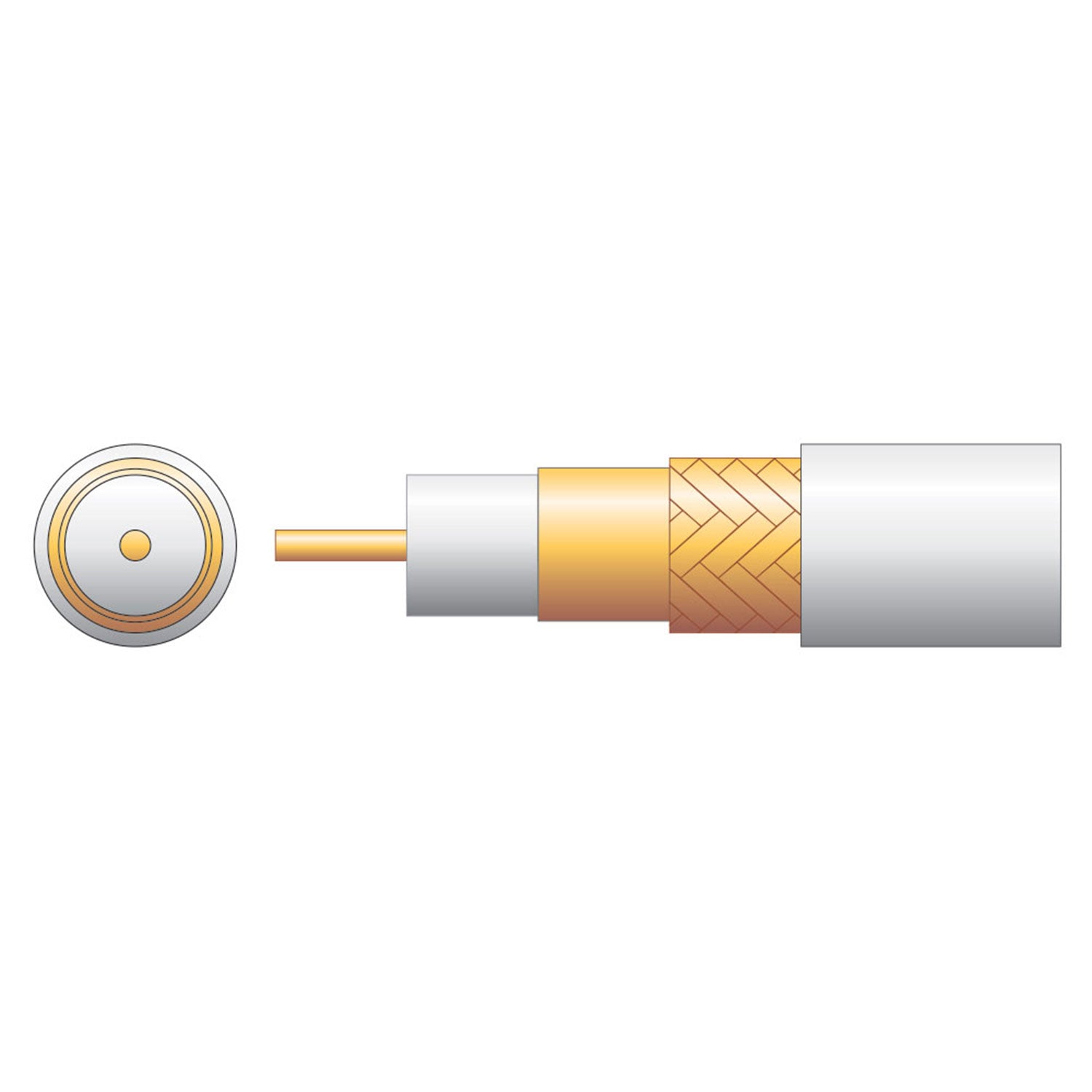

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

Solid OFC conductor
Foam filled PE dielectric
Copper foil screen
CCA braid
Supplied in 100m or 250m reel with metric cut markers

Download

£ 42 49

FAST delivery by Order within

Ships from United Kingdom

14 days returns or replacements

Secure payment transactions

Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME

Why add a product care plan:

Full breakdown support
Full replacement if we can't repair your product within 10 days
All parts, labour and callouts included if necessary
Extended manufacturer warranty with faster turn arounds
Excludes accidental & cosmetic damages

By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk

WME Care

Technical Details

Specifications

CSA
0.79 mm²

Braid
64 x 0.12 mm

Colour
White

Length
100 m

Screen
Copper foil

Weight
4 kg

Impedance
75 Ohms

Dielectric
4.6 mm foam PE

Capacitance
54 pF/m

Braid material
CCA

Velocity factor
83%

Cable diameter
6.6 mm

Conductor diameter
1 mm

Conductor material
Solid OFC

Attenuation @ 5MHz
1.8 dB max./100 m

Attenuation @ 50MHz
4.7 dB max./100 m

Attenuation @ 100MHz
6.6 dB max./100 m

Attenuation @ 200MHz
9.7 dB max./100 m

Attenuation @ 400MHz
14.6 dB max./100 m

Attenuation @ 860MHz
19.6 dB max./100 m

Return loss 5-400MHz
28 dB min./100 m

Attenuation @ 1000MHz
21.6 dB max./100 m

Attenuation @ 1750MHz
29.1 dB max./100 m

Attenuation @ 2150MHz
32.7 dB max./100 m

Return loss 450-1000MHz
24 dB min./100 m

Return loss 1000-2150MHz
18 dB min./100 m

Specifications

CSA	0.79 mm²
Braid	64 x 0.12 mm
Colour	White
Length	100 m
Screen	Copper foil
Weight	4 kg
Impedance	75 Ohms
Dielectric	4.6 mm foam PE
Capacitance	54 pF/m
Braid material	CCA
Velocity factor	83%
Cable diameter	6.6 mm
Conductor diameter	1 mm
Conductor material	Solid OFC
Attenuation @ 5MHz	1.8 dB max./100 m
Attenuation @ 50MHz	4.7 dB max./100 m
Attenuation @ 100MHz	6.6 dB max./100 m
Attenuation @ 200MHz	9.7 dB max./100 m
Attenuation @ 400MHz	14.6 dB max./100 m
Attenuation @ 860MHz	19.6 dB max./100 m
Return loss 5-400MHz	28 dB min./100 m
Attenuation @ 1000MHz	21.6 dB max./100 m
Attenuation @ 1750MHz	29.1 dB max./100 m
Attenuation @ 2150MHz	32.7 dB max./100 m
Return loss 450-1000MHz	24 dB min./100 m
Return loss 1000-2150MHz	18 dB min./100 m

100U Coaxial Cable (75 Ohm, 100m) features

100U 75 Ohms Foam Filled Coaxial Cable, CCA Braid, 100m, 808.151UK

Product Overview & Key Benefits

The100U 75 Ohms Foam Filled Coaxial Cable - CCA Braidis a high-performance coaxial cable designed for optimal signal transmission. Constructed with a solid oxygen-free copper (OFC) conductor and foam-filled polyethylene dielectric, it provides excellent shielding against signal interference. This cable is perfect for digital, satellite, and cable TV signals, making it an ideal choice for both residential and commercial setups.

Technical Specifications & Product Details

Impedance:75 Ohms
Construction:Solid OFC conductor, foam-filled PE dielectric, copper foil screen, and CCA braid
Length:100m
Weight:4kg
Colour:White
Cable Diameter:6.6mm
Conductor Diameter:1mm
Capacitance:54pF/m
Velocity Factor:83%
Attenuation @ 5MHz:1.8dB max./100m
Attenuation @ 50MHz:4.7dB max./100m
Attenuation @ 100MHz:6.6dB max./100m
Attenuation @ 200MHz:9.7dB max./100m
Attenuation @ 400MHz:14.6dB max./100m
Attenuation @ 860MHz:19.6dB max./100m
Attenuation @ 1000MHz:21.6dB max./100m
Attenuation @ 1750MHz:29.1dB max./100m
Attenuation @ 2150MHz:32.7dB max./100m
Return Loss 5-400MHz:28dB min./100m
Return Loss 450-1000MHz:24dB min./100m
Return Loss 1000-2150MHz:18dB min./100m

Ideal Uses & Applications

The 100U 75 Ohms Foam Filled Coaxial Cable is remarkably versatile, making it suitable for various applications:

Domestic Use:Ideal for home entertainment systems, connecting satellite dishes, and digital TV installations.
Commercial Use:Perfect for office buildings, hotels, and shared units where high-quality signal transmission is essential.
Studio Applications:The cable is also suitable for audio and video signal connections in studios and broadcasting environments.

Energy Efficiency & Cost Savings

Utilising high-quality materials and advanced manufacturing techniques, the100U 75 Ohms Foam Filled Coaxial Cableensures effective signal transfer with minimal loss, allowing users to enjoy high-definition video and audio without significant energy expenditure. By reducing the need for multiple amplifiers or boosters, this cable can help users save on electricity costs, contributing to a more eco-friendly solution.

In conclusion, the 100U 75 Ohms Foam Filled Coaxial Cable is a reliable choice for anyone seeking efficient, high-quality signal transmission for digital and satellite communications, whether for domestic, commercial or professional applications.
