Mercury - RG59B/U 75 Ohms Coaxial Cable, CCA Braid, Black, 100m, 808.105UK

Product Overview & Key Benefits

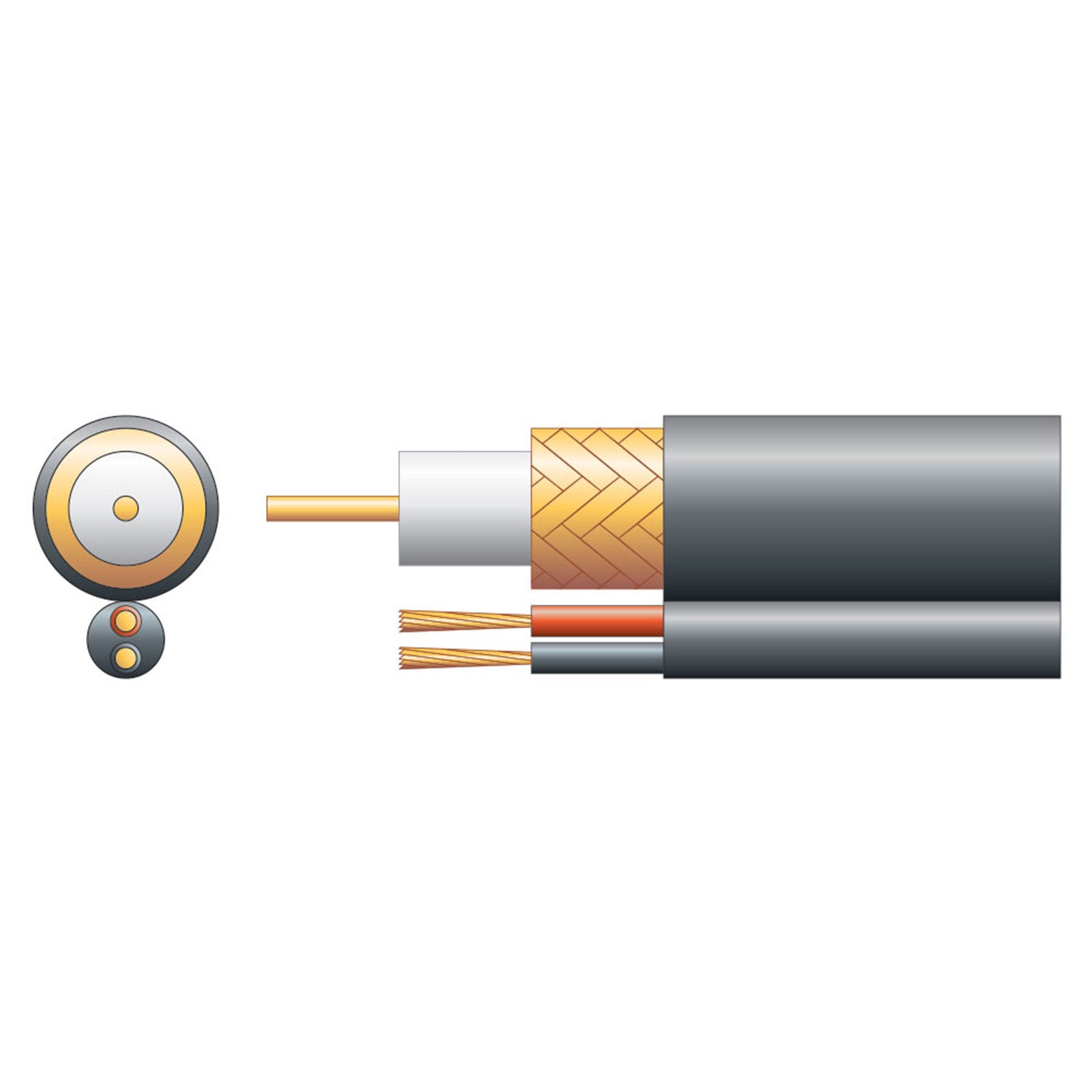

TheRG59B/U 75 Ohms Shotgun Coaxial Cable - CCA Braidis an advanced solution designed for seamless power and signal transmission, particularly for CCTV applications. This dual-core coaxial cable, featuring a solid oxygen-free copper conductor and copper clad aluminium braid, ensures optimal performance and durability. With its foam-filled polyethylene dielectric, this cable caters to both domestic and commercial needs, making it an ideal choice for professionals and DIY enthusiasts alike.

Technical Specifications & Product Details

• CSA:0.5mm²
• Braid:48 x 0.12mmØ
• Colour:Black
• Length:100m
• Weight:6.4kg
• Impedance:75 Ohms
• Dielectric:3.7mmØ foam PE
• Capacitance:67pF/m
• Power Cable:2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
• Max. Current:6A
• Braid Material:CCA
• Velocity Factor:83%
• Cable Diameter:6mmØ
• Conductor Diameter:0.8mmØ
• Conductor Material:Solid OFC
• Attenuation @ 5MHz:2.8dB max./100m
• Attenuation @ 50MHz:5.1dB max./100m
• Attenuation @ 100MHz:7.3dB max./100m
• Attenuation @ 200MHz:10.1dB max./100m
• Attenuation @ 400MHz:14.9dB max./100m
• Attenuation @ 860MHz:22.1dB max./100m
• Return Loss 5-400MHz:24dB min./100m
• Attenuation @ 1000MHz:24.7dB max./100m
• Attenuation @ 1750MHz:34.1dB max./100m
• Attenuation @ 2150MHz:38.1dB max./100m
• Return Loss 450-1000MHz:20dB min./100m
• Return Loss 1000-2150MHz:16dB min./100m

Ideal Uses & Applications

The RG59B/U coaxial cable is particularly well-suited for use in CCTV systems, making it an exceptional choice for households looking to enhance their security measures. Its dual-core configuration not only facilitates high-quality video signal transmission but also supplies necessary power. Apart from residential use, this cable is equally advantageous in commercial buildings, hospitality settings, and offices, accommodating various installations where robust and effective data transmission is imperative.

Energy Efficiency & Cost Savings

One notable aspect of the RG59B/U coaxial cable is its energy efficiency. By integrating high-quality materials and crafting a design focused on minimal attenuation, users can benefit from reduced energy consumption while achieving superior performance. This results in lower operational costs, which can, in turn, lead to savings on electricity bills over time.

Investing in the RG59B/U 75 Ohms Shotgun Coaxial Cable is a critical step toward ensuring high-quality performance for power and signal transmission. With its robust construction, impressive specifications, and ideal applications, this cable is a reliable choice for anyone looking to enhance their communication and security systems.
