Mercury: 808.101UK, RG59B/U 75 Ohms Foam Filled Coaxial Cable, Black, 100m, Solid OFC Conductor

Product Overview & Key Benefits

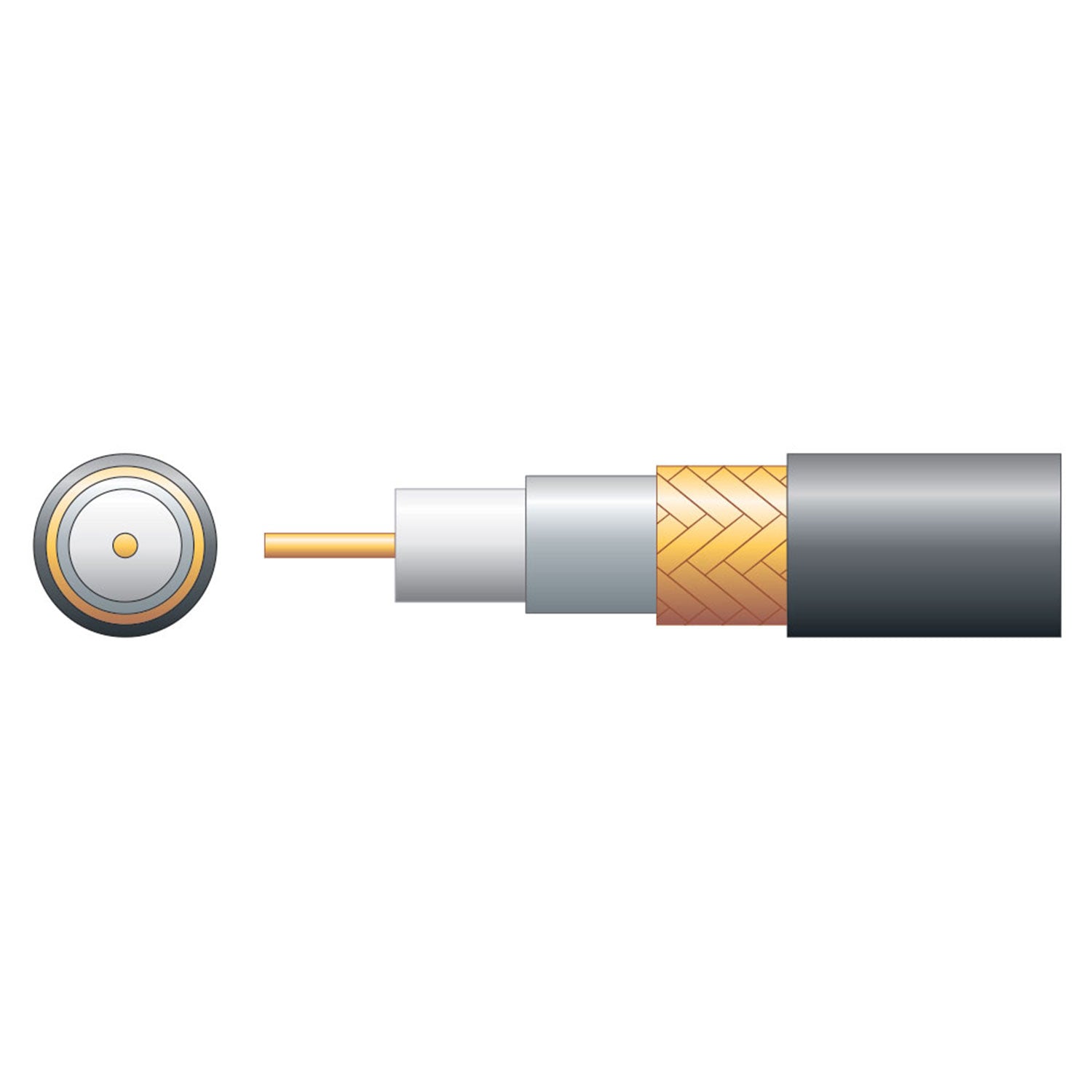

The RG59B/U 75 Ohms Foam Filled Coaxial Cable is an exceptional choice for video signal transmission, designed specifically for applications such as CCTV systems. This high-performance cable boasts a solid oxygen-free copper (OFC) conductor coupled with a foam filled polyethylene dielectric. With its aluminium foil screening and OFC braiding, it ensures minimal signal loss and provides reliable performance in both residential and commercial settings. Whether you're a DIY enthusiast or a professional installer, this cable is perfect for connecting your surveillance cameras and other video devices efficiently.

Technical Specifications & Product Details

• Impedance:75 Ohms
• Length:100m
• Colour:Black
• Weight:3.5kg
• Dielectric:3.7mm Ø foam PE
• CSA:0.5mm²
• Cable Diameter:6mm Ø
• Conductor Diameter:0.8mm Ø
• Braid Material:OFC (Oxygen-Free Copper)
• Braid:48 x 0.12mm Ø
• Screen:Aluminium / PET foil
• Capacitance:67pF/m
• Velocity Factor:83%
• Attenuation @ 5MHz:2.8dB max./100m
• Attenuation @ 50MHz:5.1dB max./100m
• Attenuation @ 100MHz:7.3dB max./100m
• Attenuation @ 200MHz:10.1dB max./100m
• Attenuation @ 400MHz:14.9dB max./100m
• Attenuation @ 860MHz:22.1dB max./100m
• Attenuation @ 1000MHz:24.7dB max./100m
• Attenuation @ 1750MHz:34.1dB max./100m
• Attenuation @ 2150MHz:38.1dB max./100m
• Return Loss 5-400MHz:24dB min./100m
• Return Loss 450-1000MHz:20dB min./100m
• Return Loss 1000-2150MHz:16dB min./100m

Ideal Uses & Applications

The RG59B/U Coaxial Cable is ideally suited for a variety of applications, particularly in the domain of video surveillance and signal transmission. Common scenarios for its use include:

• CCTV Systems:Perfect for connecting cameras to DVR systems, ensuring high-quality video capture and playback.
• Domestic DIY Projects:Utilised in home installations for TV, antenna, and video equipment to enhance performance.
• Commercial Buildings:Employed in offices, schools, and retail environments for establishing secure video monitoring systems.
• Hospitality Settings:Enhances guest security and monitoring through efficient camera installations in hotels and restaurants.

Energy Efficiency & Cost Savings

One of the key benefits of using the RG59B/U Coaxial Cable is its energy efficiency, thanks to its superior construction that minimises signal loss and ensures optimal performance. Users can expect longer operational lifespans for their connected devices, leading to lower maintenance and replacement costs. Investing in this high-quality cable not only secures your video transmission needs but also contributes to significant long-term cost savings.
