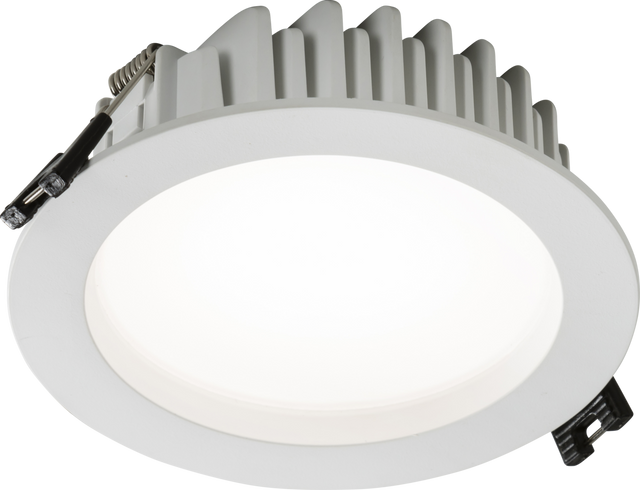

ASHA 8W Adjustable LED Downlight
The ASHA 230V 8W IP54 CCT Adjustable LED Downlight is designed to meet commercial lighting needs with a slim profile and adjustable colour temperature.
- 3 x CCT options (3000K, 4000K, 5700K) via a switch on the fitting.
- IP54 rated for water and dust protection.
- Plug and play connectors for ease of installation.
- Compatible emergency kit available (EMKIT2L).
Engineered for functionality and style, this downlight offers hassle-free installation and flexibility to adjust the lighting as required.
-
Download
- Download Datasheet
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP54 (IP20 from above) |
Construction | Polycarbonate |
Construction 2 | & aluminium |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 110 mm |
---|---|
Minimum Void | 86 mm |
Recessed Depth | 36 mm |
Cut-out Diameter | 90 mm |
Lamp
L70B50 | 45000 |
---|---|
Dimmable | No |
Beam Angle | 100 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >80 |
Lumens | 750/810/805 lm |
Wattage | 8 |
Light Colour | CCT |
Efficacy (Light source) | 120 lm/W |
Lumens (Light source only) | 850/910/885 lm |
ASHA 8W Adjustable LED Downlight features

ASHA 230V 8W IP54 CCT Adjustable LED Downlight, Slim Profile, 3 Colour Options, Plug and Play, AS8CWA
