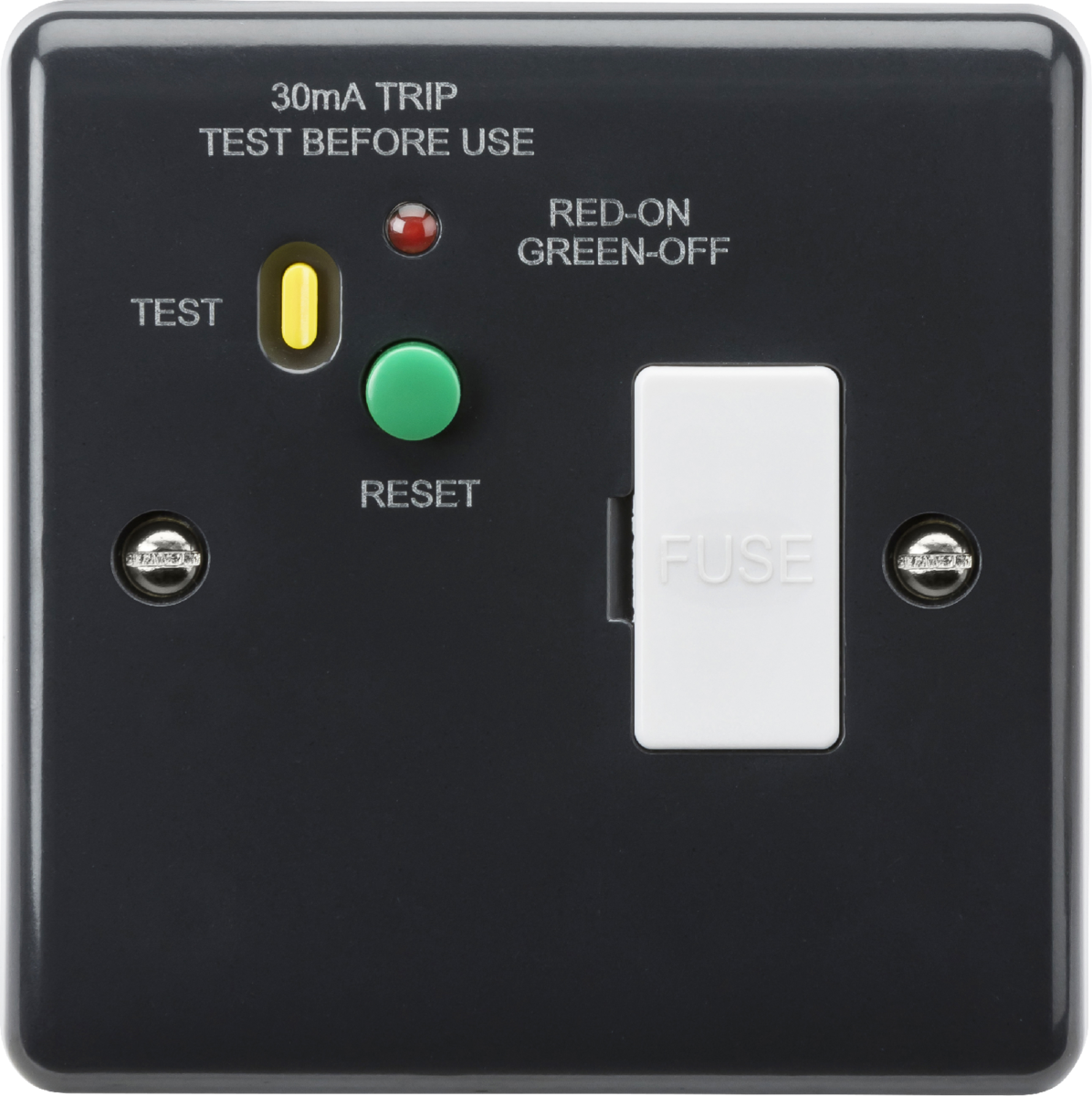

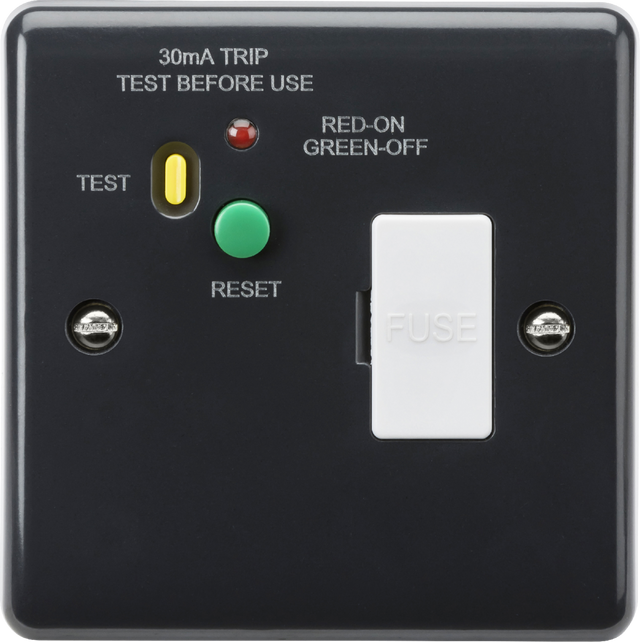

13A RCD Fused Spur - Part M Compliant
The Curved Edge range has been expanded to include a range of wiring accessories that comply with current Building Regulations Part M.
It is recommended that switches contrast with the front plate which in turn contrast with the wall. This range satisfies both recommendations with a Light Reflectance Value (LRV) of approx. 8.9 (Part M recommends a contrast of 30% LRF between front plate and wall).
- Inherent Anti-microbial properties – 3rd party tested
- Certified to all relevant British Safety standards
Features:
- Type A RCD for AC residual current and pulsating DC up to 6 mA, suitable for equipment with electronic components such as IT equipment.
- Passive (latching) type, which will automatically reset after a power outage, without the need for manual resetting.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Anthracite |
---|---|
IP Rating | IP20 |
Construction | Thermoset resin |
Primary Voltage | 230V 50Hz |

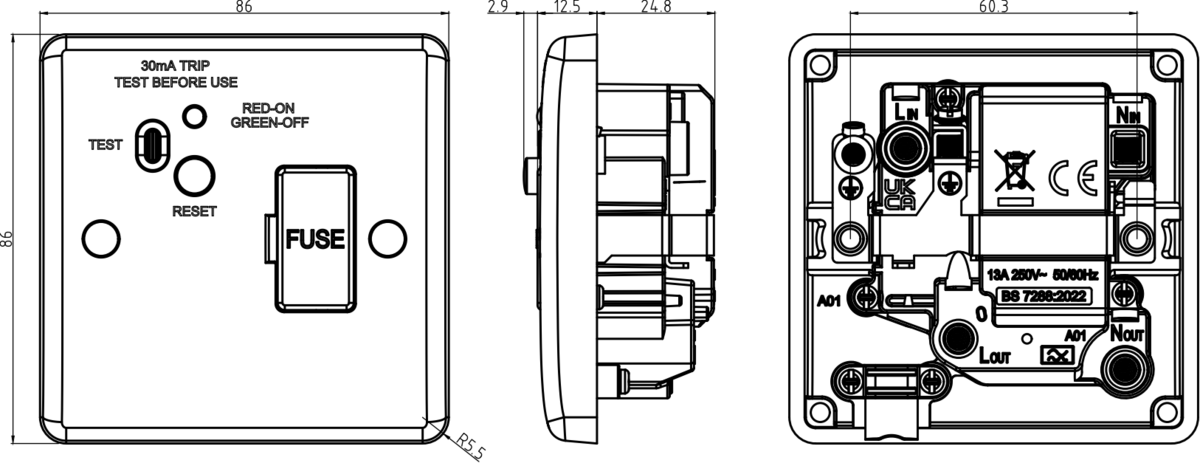

Dimensions
Width | 86 mm |
---|---|
Height | 86 mm |
Projection | 12 mm |
Min. Mounting Box Depth | 35mm |
Wiring-accessories
Terminal | Captive |
---|---|
Earth Terminal | Yes |
RCD functionality | 30mA Type-A latching |
Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
13A RCD Fused Spur - Part M Compliant features

13A RCD Fused Spur, Type A, IP20, 30mA, Anthracite Finish, 230V, PM6RCD
