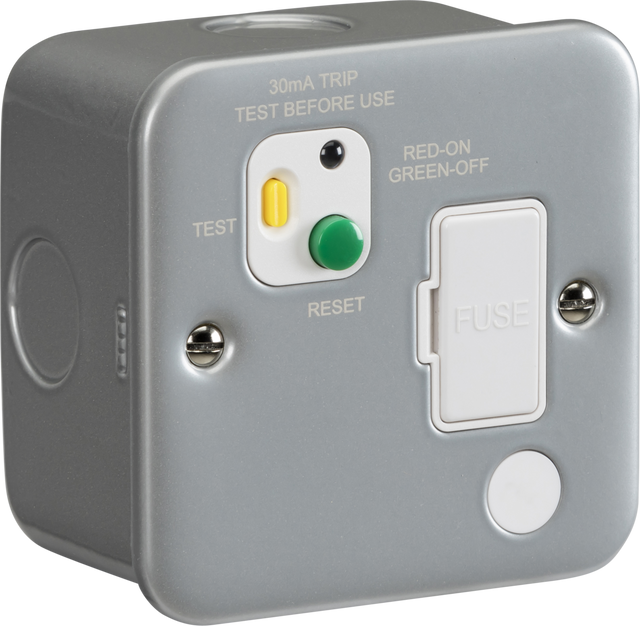

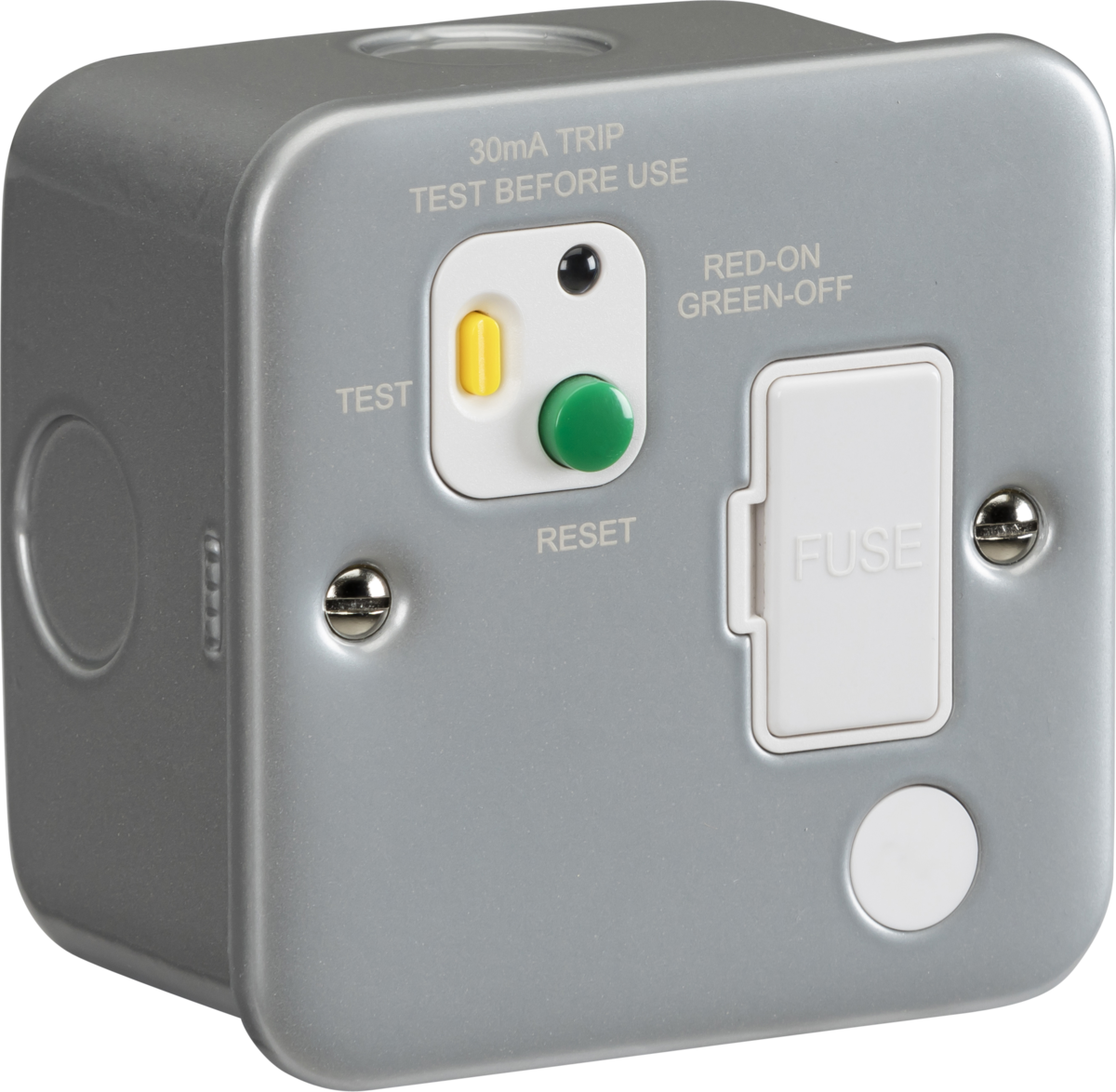

Knightsbridge: M6RCD, 13A RCD Fused Spur Unit, Type A, Auto Reset, Powder-coated Steel, IP20, 230V, 81mm x 81mm
About this product
The 13A RCD Fused Spur Unit (Type A) is a robust solution designed for enhanced electrical safety. Key features include:
- Type A RCD for AC residual current and pulsating DC up to 6 mA
- Tripping current (IΔn): 30mA
- Fast trip time of 40ms for improved safety
- Automatically resets after a power outage (passive type)
Perfect for use with IT equipment and any devices with electronic components. Constructed from premium grade steel with a powder-coated silver/grey finish, this unit offers high durability and compliance with IP20 standards. Ensure your installation meets UK and EU regulations.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Powder-coated Silver/Grey |
| IP Rating | IP20 |
| Construction | Premium grade steel |
| Construction 2 | & thermoset resin |
| Primary Voltage | 230V 50Hz |

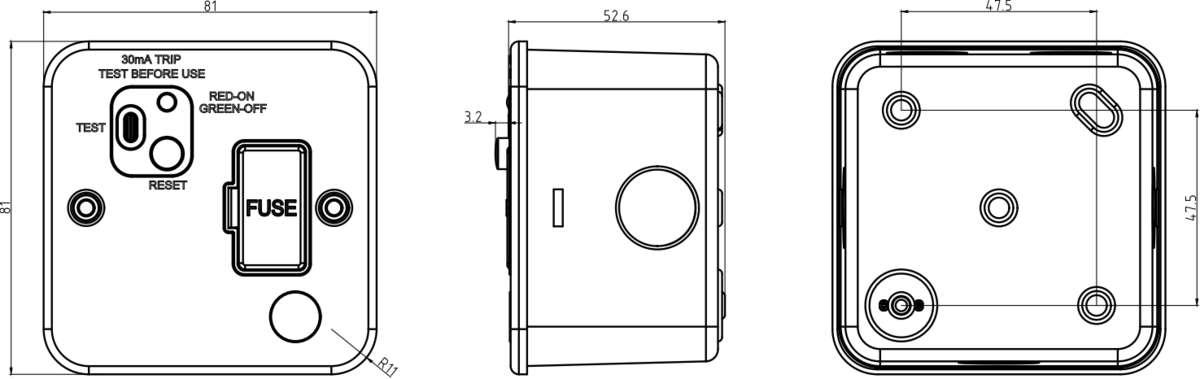

Dimensions
| Width | 81 mm |
|---|---|
| Height | 81 mm |
| Projection | 50 mm |
Wiring-accessories
| Terminal | Captive |
|---|---|
| Earth Terminal | Yes |
| RCD functionality | 30mA Type-A latching |
13A RCD Fused Spur Unit - Type A, 30mA features
