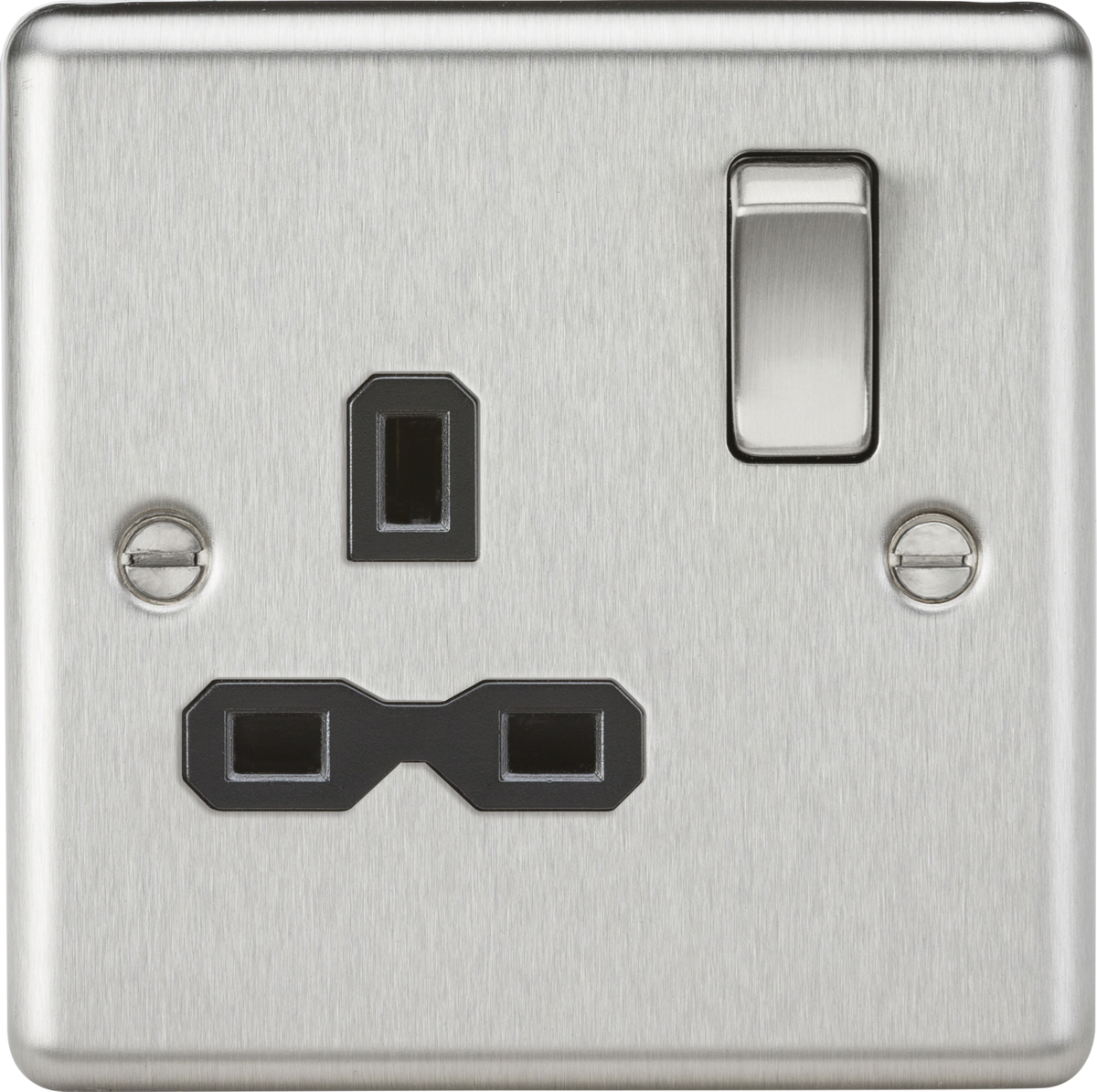

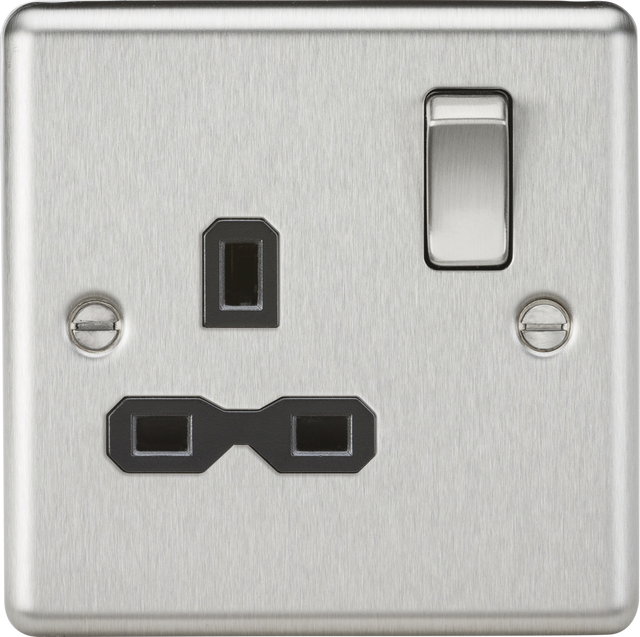

13A 1G DP Switched Socket - Brushed Chrome
The 13A 1G DP Switched Socket in Brushed Chrome with Black Insert is designed to add a modern touch to any home. This rounded edge socket not only provides elegance but also ensures safety and functionality.
- 13A Switched Socket for reliable performance
- Double Pole Switch for enhanced safety
- Rounded Edge design with built-in gasket
- Certified to BS 1363:2 compliance standards
- Minimum mounting box depth of 25mm
Installation should adhere to local wiring regulations for optimal safety and efficiency.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

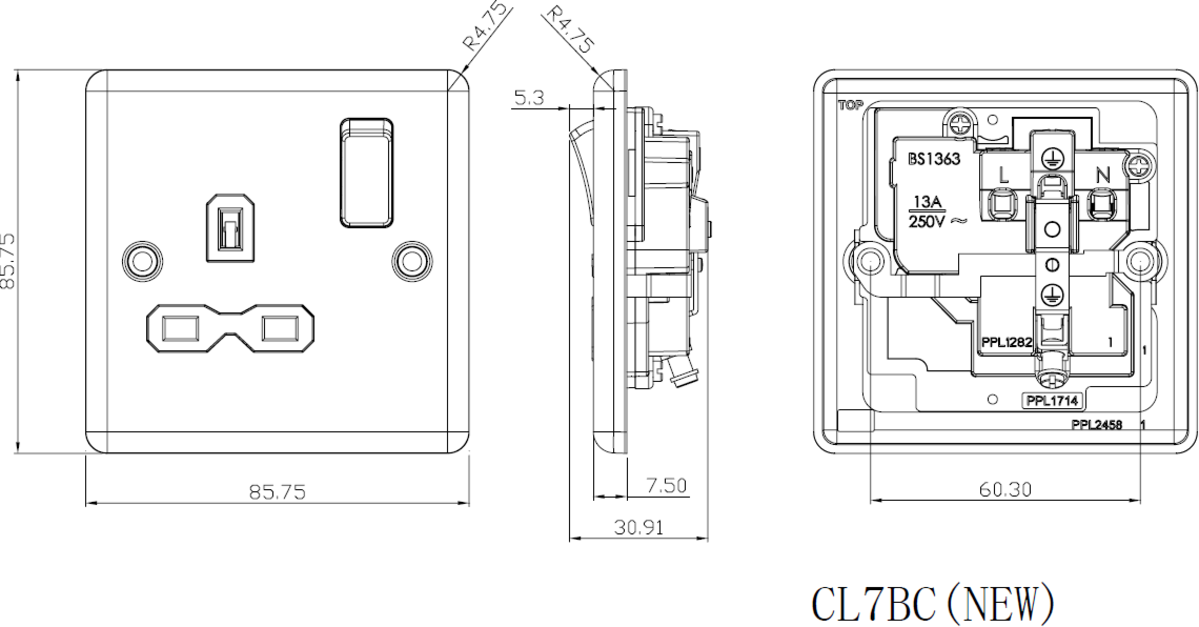

Dimensions
Depth | 30.91 mm |
---|---|
Width | 85.75 mm |
Height | 85.75 mm |
Projection | 12.8 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
13A 1G DP Switched Socket - Brushed Chrome features

13A DP Switched Socket, 1G, Double Pole, Rounded Edge, Brushed Chrome with Black Insert, 230V, 10A, CL7BC
