Product Overview & Key Benefits

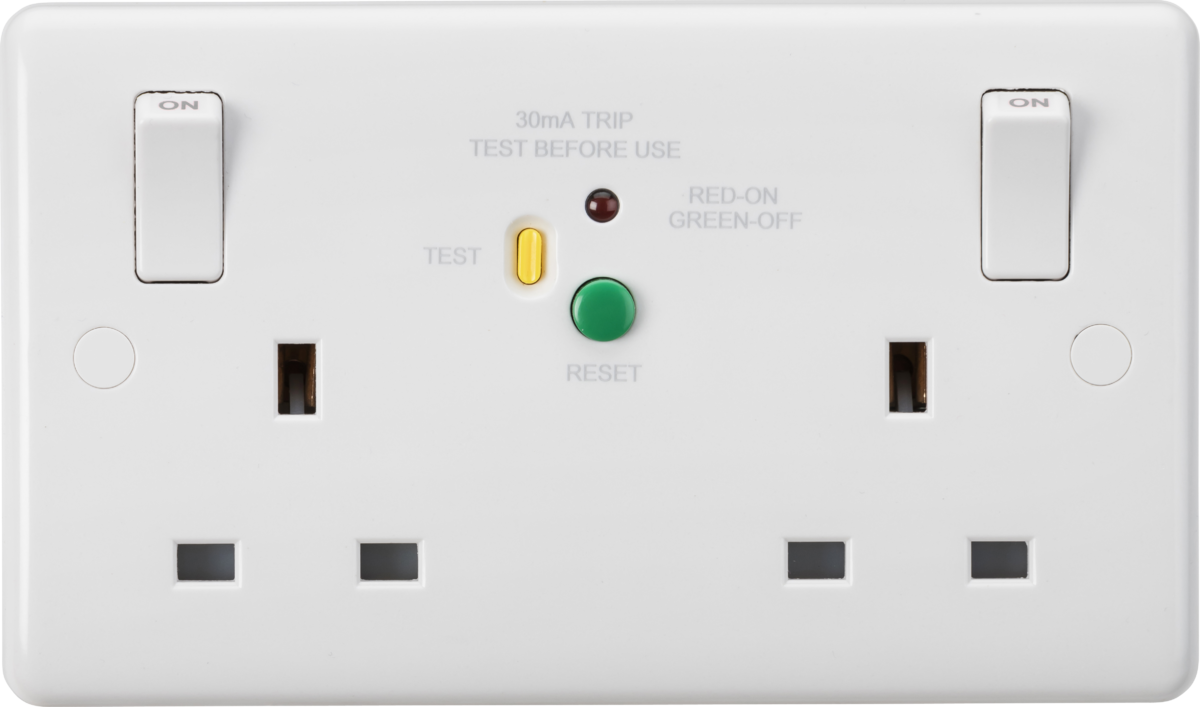

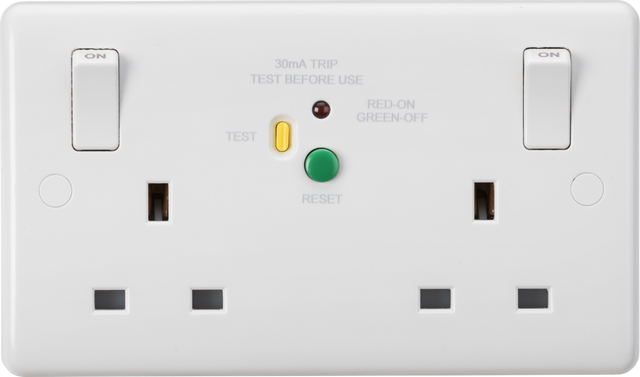

The 13A 2G DP RCD Switched Socket is an essential element for ensuring safety within electrical installations. It is ideal for both residential and commercial applications, providing peace of mind with its built-in Residual Current Device (RCD) functionality. The 30mA Type A rating makes it perfect for protecting against electric shock from AC and pulsating DC currents, making it an optimal choice for environments with electronic devices.

Technical Specifications & Product Details

• Wattage:13A
• Voltage:230V, 50Hz

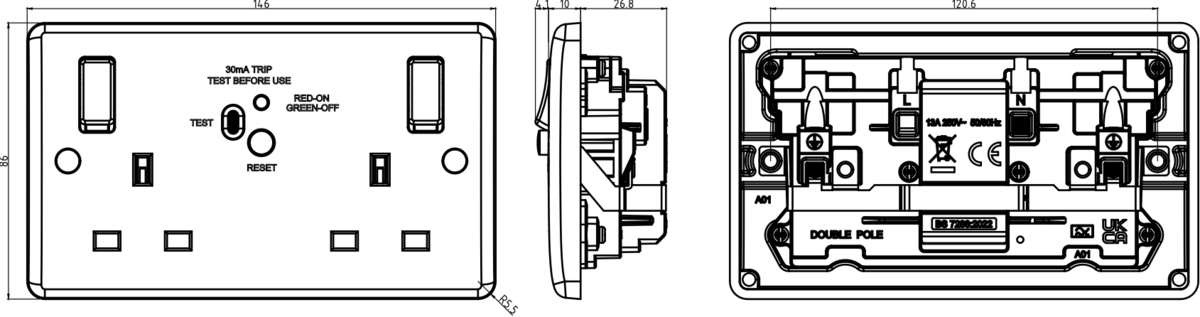

• Dimensions:146 mm (W) x 86 mm (H) x 10 mm (Projection)
• IP Rating:IP20
• Material:Thermoset resin
• Finish:White
• Tripping current:30mA
• Trip time at IB4n:40ms
• Wiring Type:Captive terminals
• Earth Terminal:Yes
• Mounting Box Depth:Suitable for 35mm minimum depth
• Reset Type:Automatic
• RCD Functionality:Type A latching

Ideal Uses & Applications

This RCD switched socket is suitable for various scenarios including domestic wiring, professional installations in offices, and industrial environments. It is particularly beneficial for safe operation of IT devices and other electronic appliances, making it a smart choice for spaces where safety is paramount.

Energy Efficiency & Cost Savings

Using RCD sockets like the 13A 2G DP can contribute to significant energy savings while minimizing the risk of electrical hazards. By incorporating this socket into your electrical system, you can help protect sensitive electronics and potentially reduce the costs associated with electrical repairs and replacements over time.
