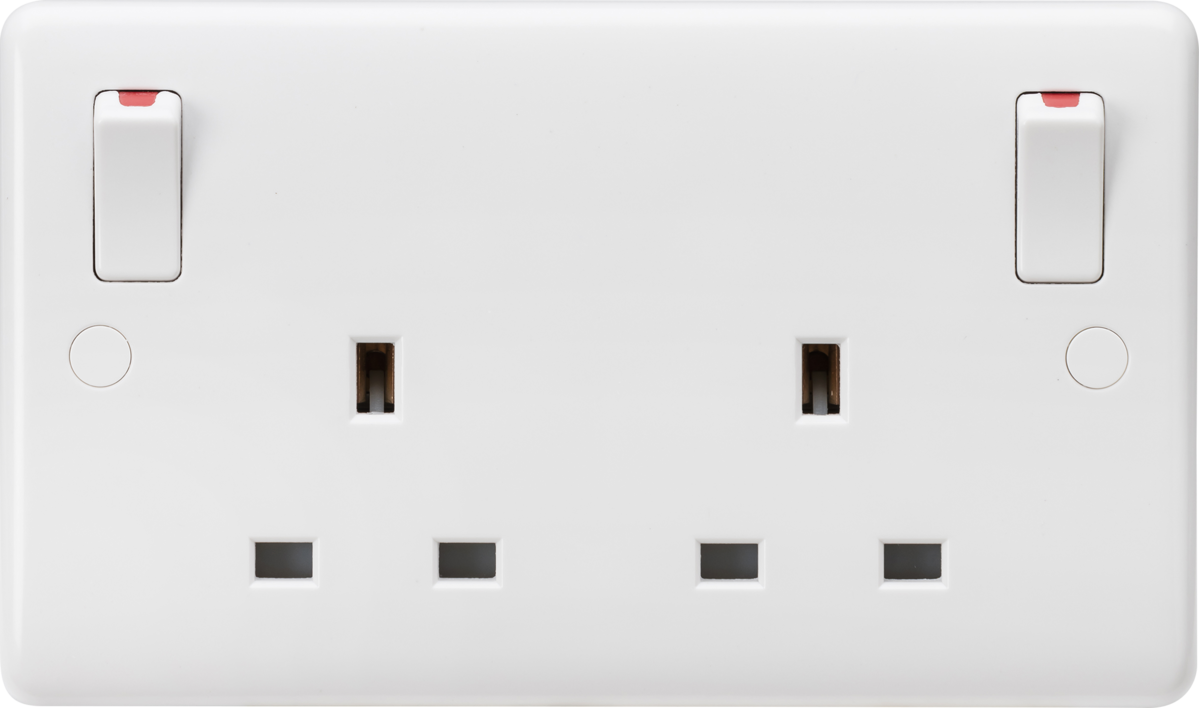

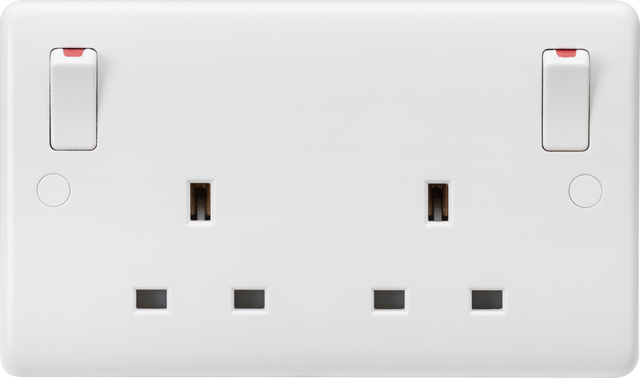

13A 2G DP Switched Socket
Introducing our leading 13A 2G DP Switched Socket designed for superior safety and performance:
- 13A rated and certified to BS 1363-2
- Double Pole switch with outboard rockers
- Top access to captive terminals for quicker installation
- Inherent anti-microbial properties - 3rd party tested to ISO 22196:2011
- Includes screw cap covers for added safety
- Minimum mounting box depth: 25mm
Available in a stylish white finish, this socket ensures a neat look in any environment, making it ideal for both residential and commercial use. Compliant with UK safety standards ensuring peace of mind for your electrical installations.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | White |
---|---|
IP Rating | IP20 |
Construction | Thermoset resin |
Primary Voltage | 230V 50Hz |

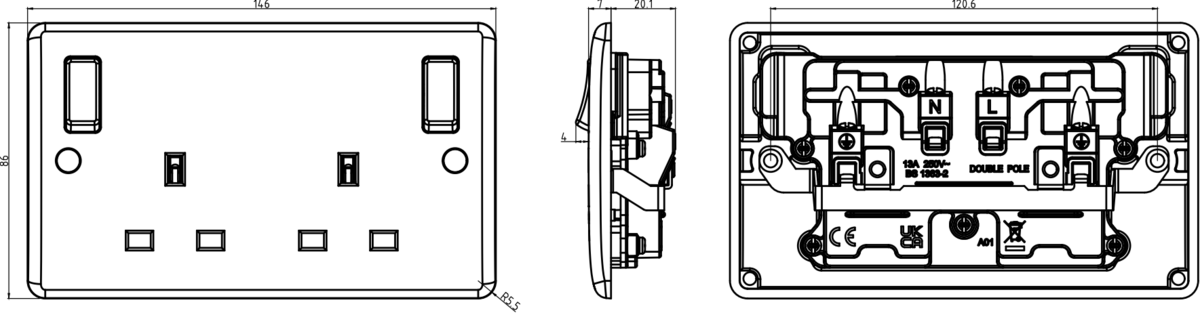

Dimensions
Width | 146 mm |
---|---|
Height | 86 mm |
Projection | 7 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
13A 2G DP Switched Socket features

13A 2G DP Switched Socket, Anti-Microbial, Outboard Rockers, BS 1363-2 Certified, Twin Earths, White, CU9001
