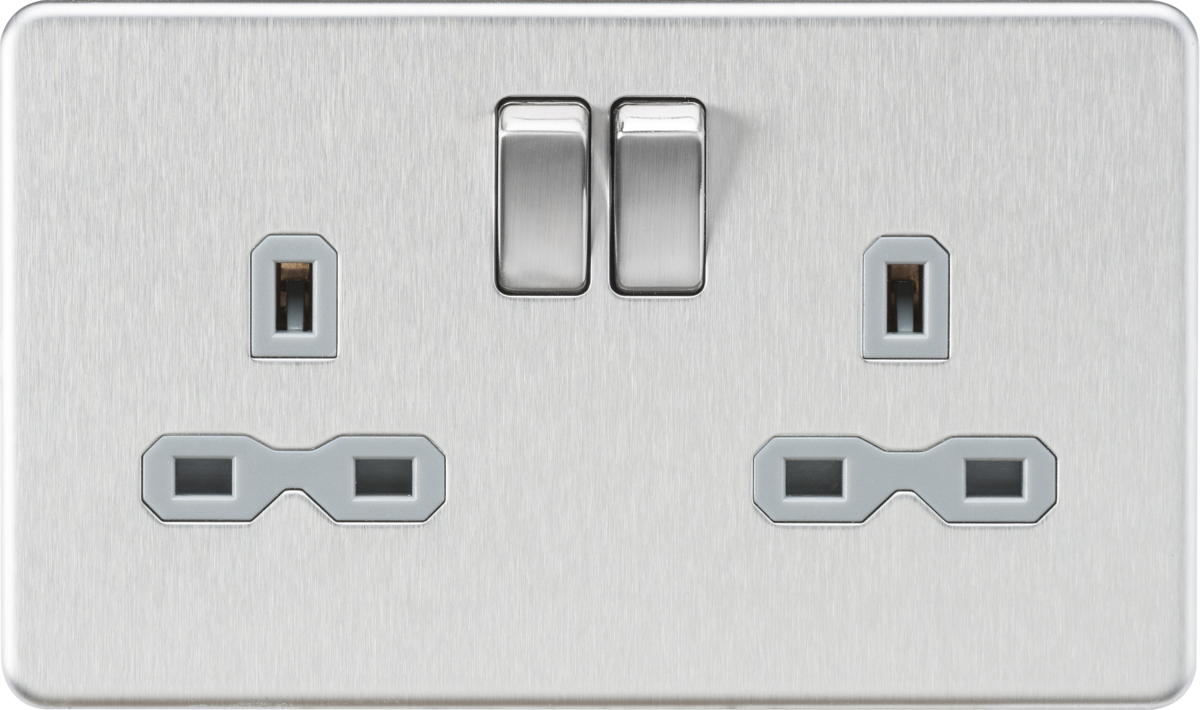

13A 2G DP Switched Socket
Perfect finishing touch to any modern home, this switched socket offers a flawless screwless low profile metal design with matching metal rockers. The unique socket insert design is completely hidden once a plug is inserted.
- 13A 2G Switched Socket
- Double Pole Switches
- Fitted with twin earth terminals
- Screwless low profile design with built-in gasket
- Certified to BS 1363:2
- Minimum mounting box depth: 25mm
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

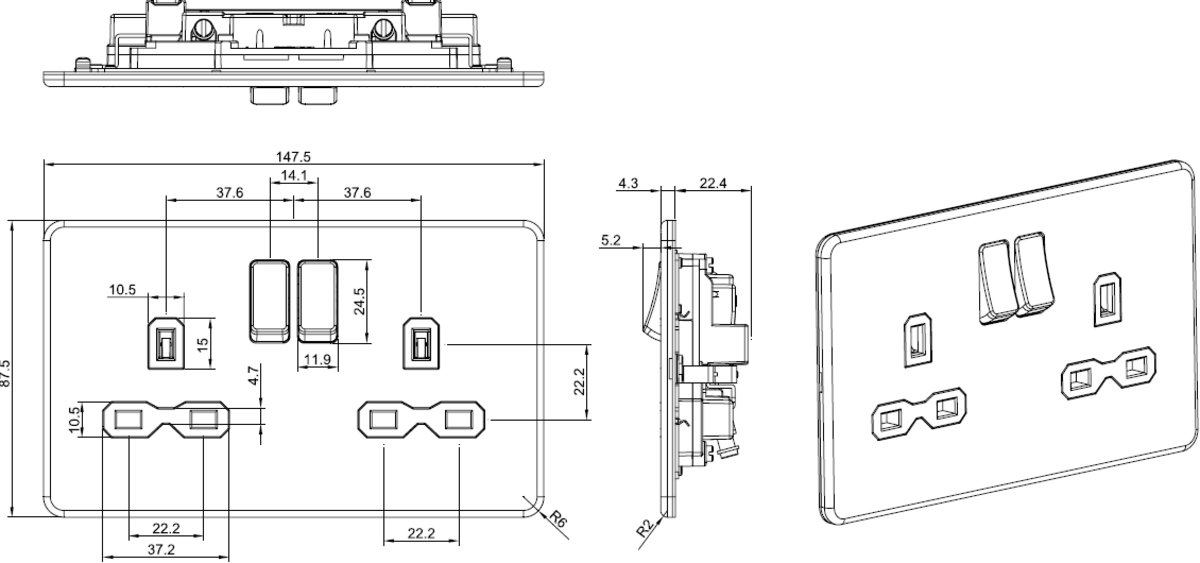

Dimensions
Depth | 31.9 mm |
---|---|
Width | 147.5 mm |
Height | 87.5 mm |
Projection | 9.5 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 22.4 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
13A 2G DP Switched Socket features

13A 2G DP Switched Socket, Screwless Low Profile, Brushed Chrome Grey Insert, 230V, SFR9000BCG
