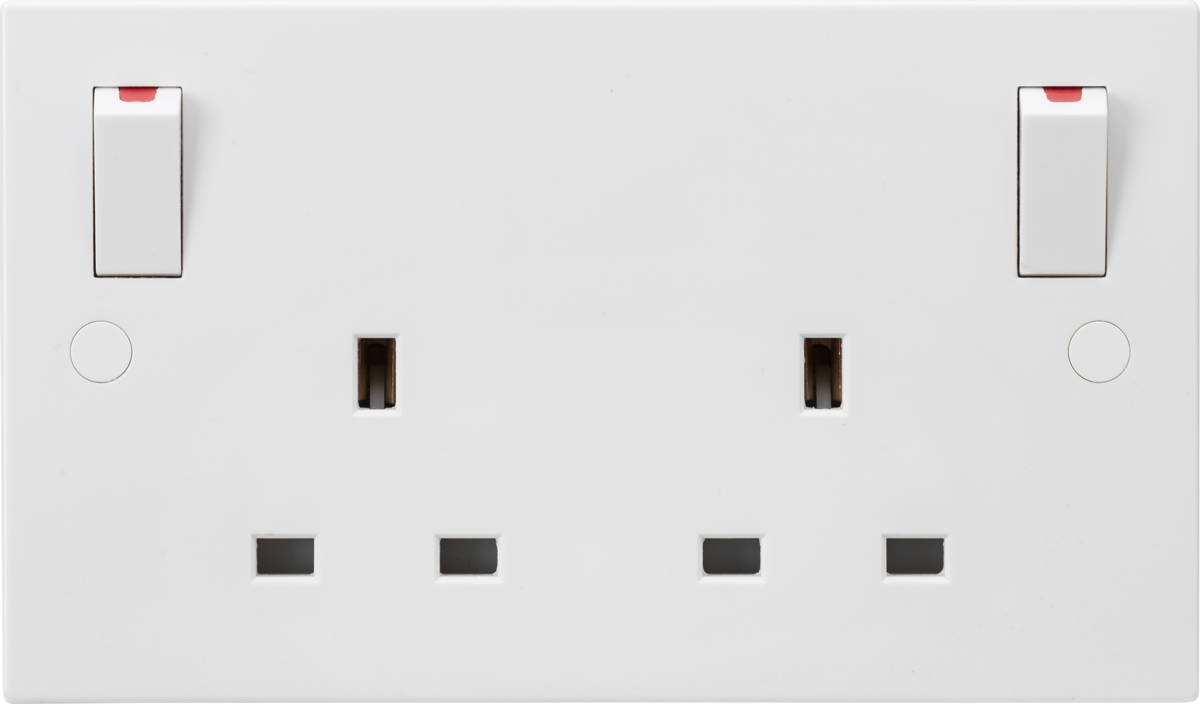

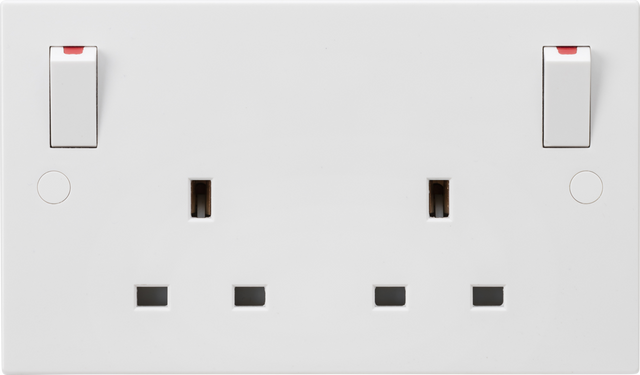

Knightsbridge: SN9001, 13A 2G DP Switched Socket, White, Double Pole, Outboard Rockers, Anti-Microbial, 230V, BS 1363-2
About this product
The Knightsbridge 13A 2G DP Switched Socket is designed for safety and convenience in any electrical setup. Key features include:
- 13A rated for reliable performance.
- Double Pole for added safety.
- Outboard rockers for easier operation.
- Top access to captive terminals for quick installation.
- Constructed with thermoset resin and anti-microbial properties, certified to ISO 22196:2011.
- Two earths for enhanced connectivity.
- Min. mounting box depth of 25mm required.
- Certified to BS 1363-2 for UK compliance.
Packed securely in individual Knightsbridge rip-top polybags with a euro slot for easy display and handling.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | White |
|---|---|
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |

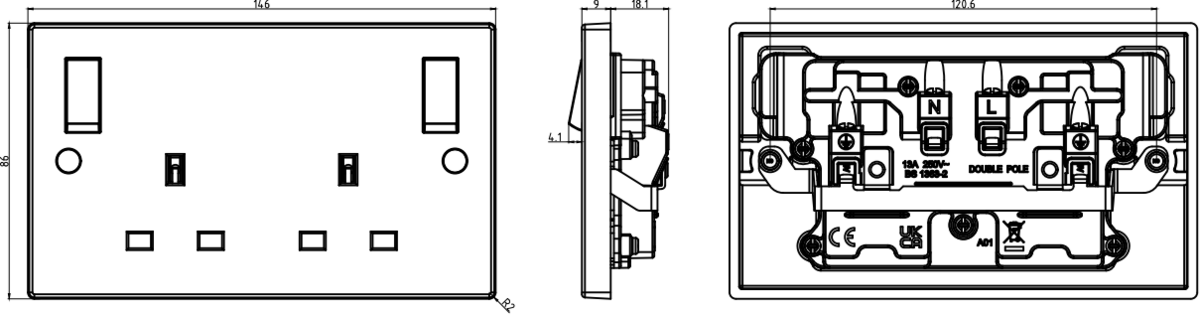

Dimensions
| Width | 146 mm |
|---|---|
| Height | 86 mm |
| Projection | 9 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
Knightsbridge 13A 2G DP Switched Socket features
Knightsbridge: SN9001, 13A 2G DP Switched Socket, White, Double Pole, Outboard Rockers, Anti-Microbial, 230V, BS 1363-2
