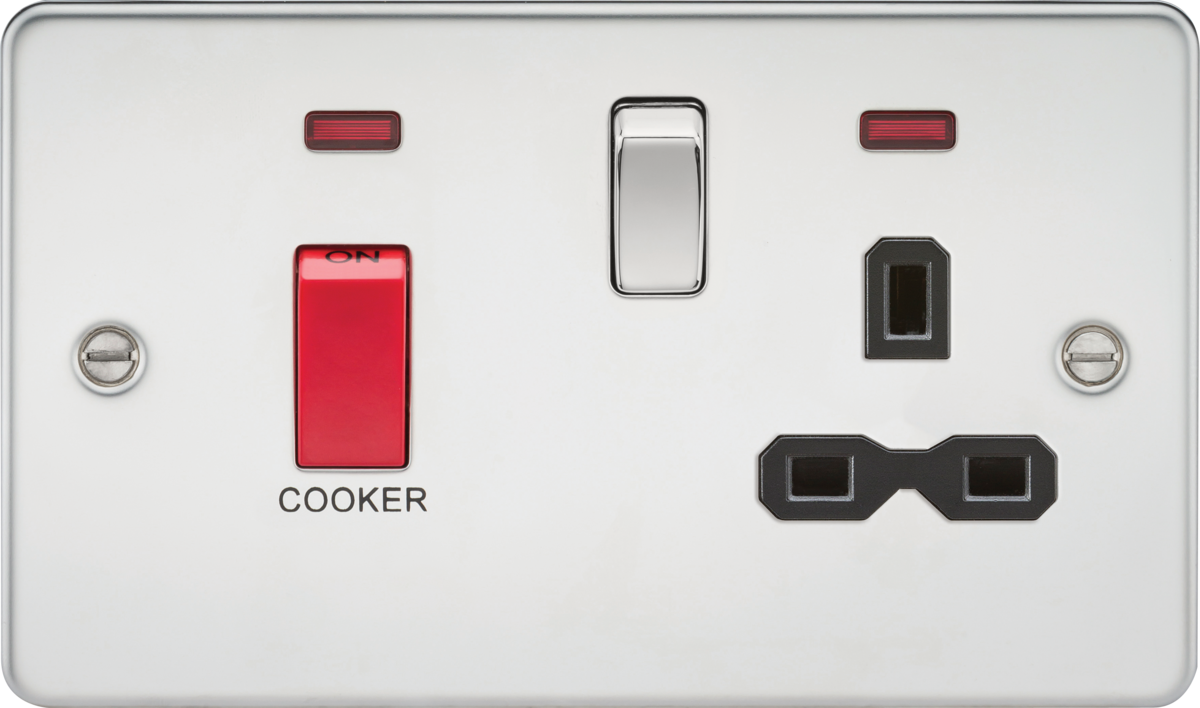

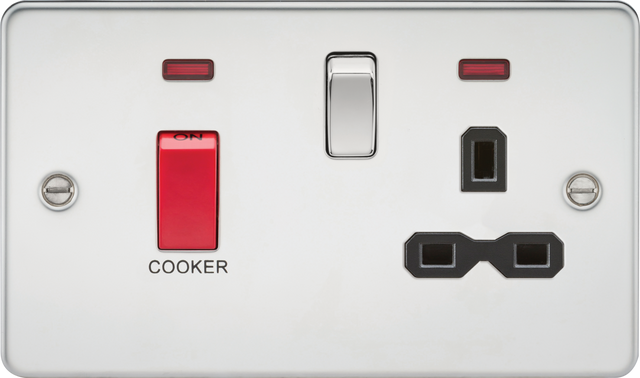

Polished Chrome 45A DP Switch & 13A Socket
Cooker control units enable isolation of the unit so that maintenance and repairs can be carried out separately. The unit can be switched off, preventing the appliance from being turned on accidentally - for example while cleaning.
- Control two or more cooking appliances in the same room, provided the rating is sufficient.
- This model combines a 45A switch with a 13A socket.
- Flat Plate low profile design.
Certified to BS 4177, BS 1363-2.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Polished Chrome |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

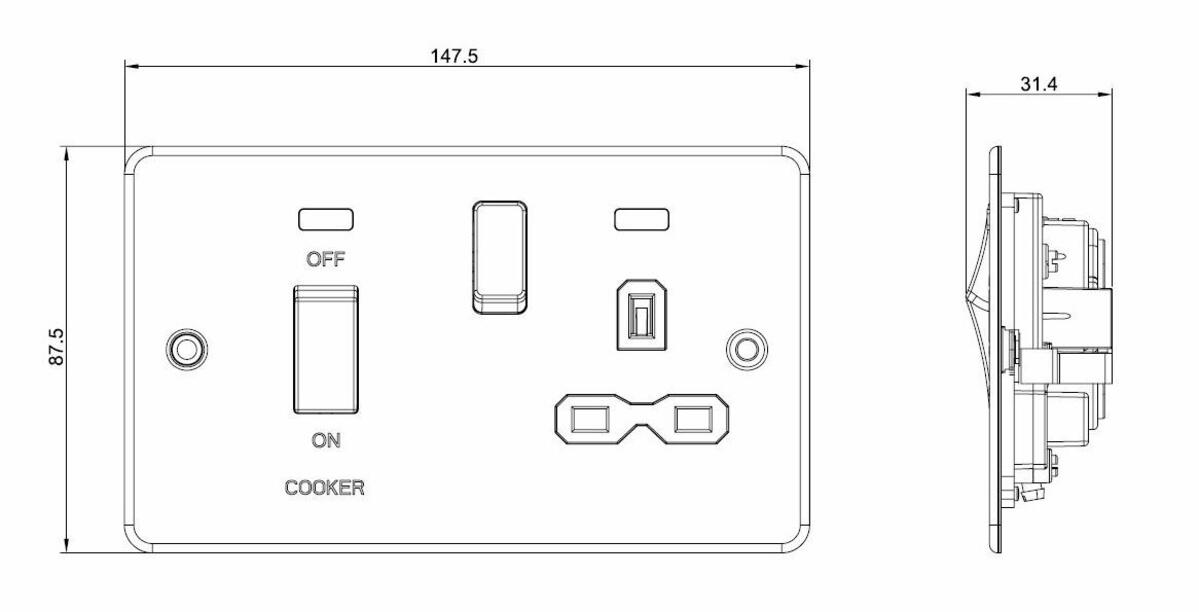

Dimensions
Width | 147.5 mm |
---|---|
Height | 87.5 mm |
Projection | 2.5 mm |
Min. Mounting Box Depth | 47mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | Yes |
Polished Chrome 45A DP Switch & 13A Socket features

Polished Chrome 45A DP Switch with Neon Indicator & 13A Socket, Low Profile Design, Safety Certified to BS Standards, FPR8333NPC
