Product Overview & Key Benefits

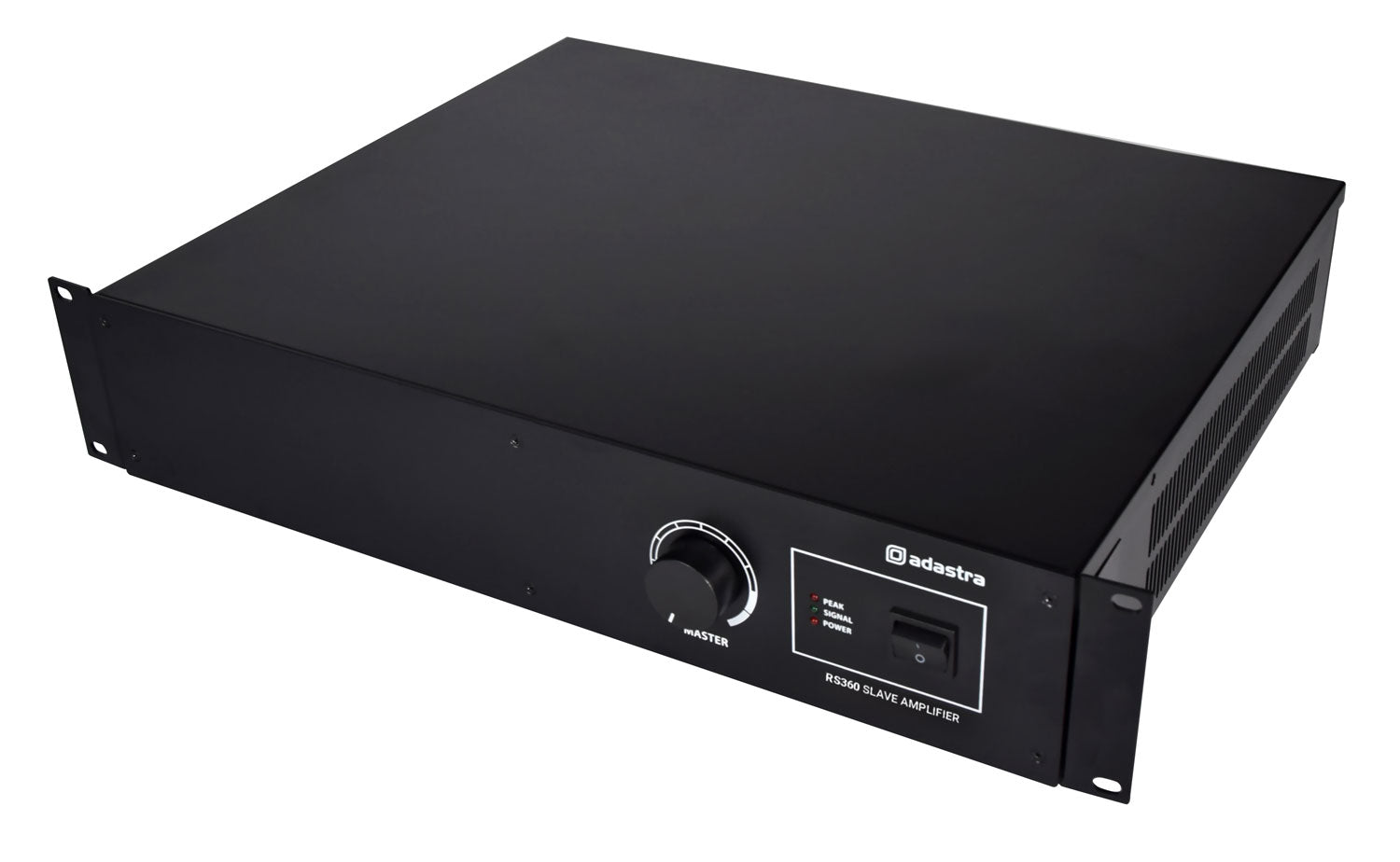

The RS Series 100V Line Slave Amplifiers are high power class-D amplifiers designed for efficient audio distribution in medium to large installations. Offering a robust rack-mountable housing, these amplifiers ensure reliability and versatility, making them suitable for a range of applications including commercial buildings, hospitality settings, and larger audio systems. Their ability to accept standard line level audio from mixers allows users to expand existing systems seamlessly, maximising audio performance without compromising on sound quality.

Technical Specifications & Product Details

• Model:RS Series 100V Line Slave Amplifiers
• Supplier SKU:953.203UK
• Power Output:360W rms
• Dimensions:433 x 355 x 89mm
• Weight:9.9kg
• Frequency Response:90Hz-20kHz (100V), 17Hz-90kHz (2 Omega)

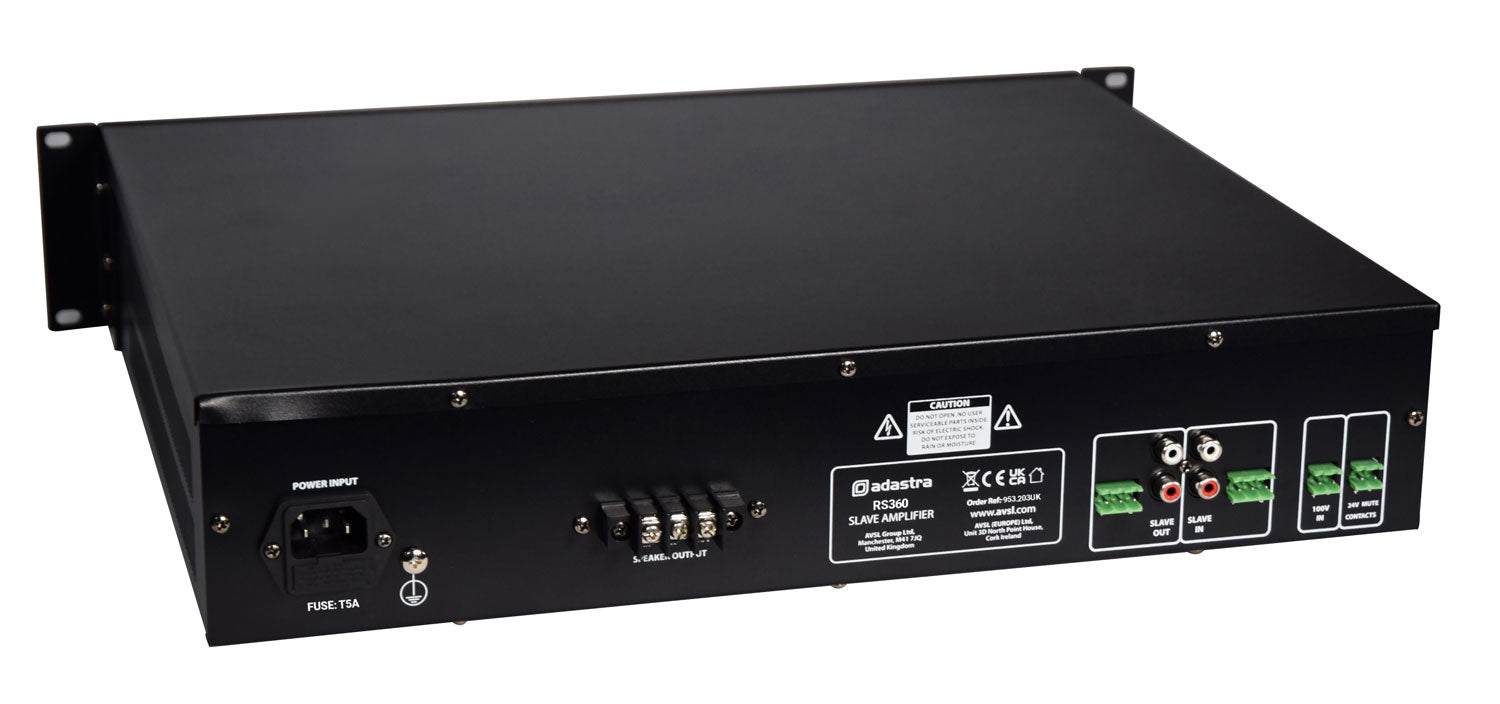

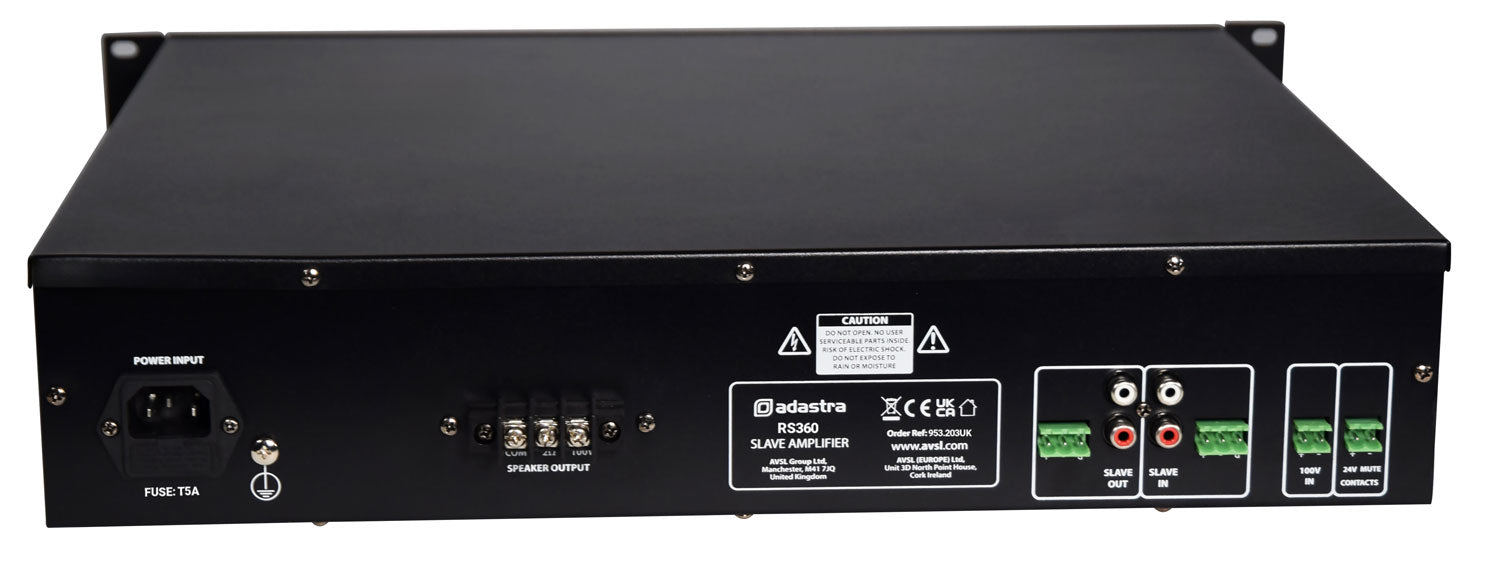

• Inputs:Slave line in (RCA/screw terminal), 100V in (screw terminal)
• Outputs:100V or low impedance (2 Ohms min., screw terminals)
• Mute Functionality:24V alarm contacts via screw terminal
• Power Supply:175-264Vac 50Hz (IEC)

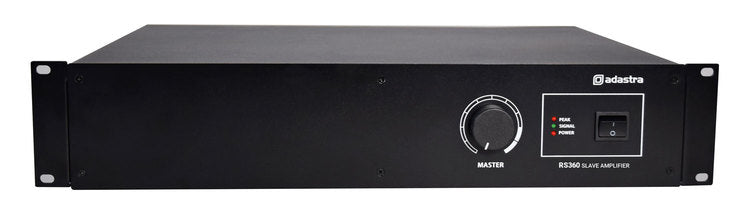

• Controls:Master volume
• Total Harmonic Distortion (THD):<1.0%
• Fuse Rating:T5A

Ideal Uses & Applications

The RS Series amplifiers are perfect for those looking to enhance their audio setups in various environments. Key applications include:

• Commercial Buildings:Ideal for amplifying background music systems across retail spaces and shopping centres.
• Hospitality Settings:Provides seamless audio for hotel lobbies, bars, and restaurants, ensuring an enjoyable atmosphere for guests.
• Office Environments:Useful for intercom systems and presentations, allowing clear communication across larger office spaces.
• Event Venues:Enhances sound quality for events and presentations, making it suitable for conference centres and auditoriums.

Energy Efficiency & Cost Savings

Utilising advanced Class-D amplification technology, the RS Series 100V Line Slave Amplifiers are designed to be energy-efficient, helping to reduce electricity consumption while delivering powerful audio outputs. By integrating these amplifiers into a sound system, users can expect a noticeable decrease in operational costs, making it an economical choice for both commercial and residential applications. These amplifiers not only save energy but also ensure a superior audio experience, providing value for investment.
