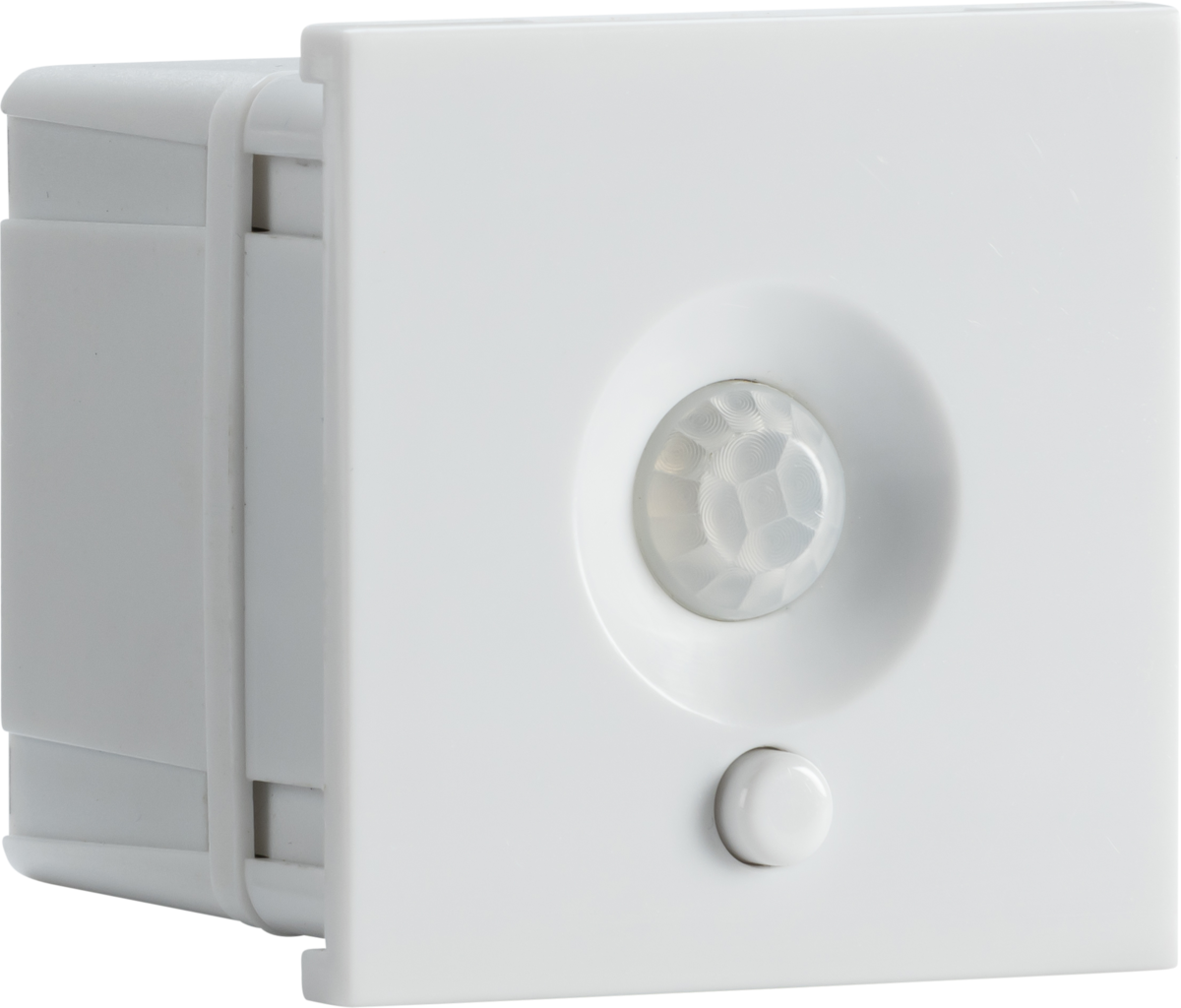

120° PIR Sensor Module, White, 50 x 50mm

Seamless Fit
£ 15 84
(Incl. VAT) RRP: £17.60
WME Care
0
About this product

The 120° PIR Sensor Module is designed for seamless integration in euro modular frames that accommodate a 50 x 50mm module.

  • Voltage: 220-240V 50Hz
  • Loading: Max. 100W LED and 200W Incandescent
  • Operation: Passive infrared
  • Detection Field: 120°
  • Detection Range: 5m
  • Override Function: Switch between AUTO mode and ON
  • Suitable for: 47mm back box
  • Lux Sensitive: Time operation fixed
  • Wiring: Requires Live and Neutral
£ 15 84
WME Care
FAST delivery by Order within
Get breakdown support
Add a WME Care Plan
Warranty plans available. See terms
Ships from United Kingdom
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Class
II
Finish
White
IP Rating
IP20
Construction
Polycarbonate
Primary Voltage
230V 50Hz
Dimensions
Width
50 mm
Height
50 mm
Recessed Depth
40 mm
Min. Mounting Box Depth
47mm

Specifications

Class II
Finish White
IP Rating IP20
Construction Polycarbonate
Primary Voltage 230V 50Hz

Dimensions

Width 50 mm
Height 50 mm
Recessed Depth 40 mm
Min. Mounting Box Depth 47mm

120° PIR Sensor Module, White, 50 x 50mm features

120° PIR Sensor Module - White, 50 x 50mm

120° PIR Sensor Module with Override Function, 50 x 50mm, White, 220-240V, 100W LED, 200W Incandescent, NETPIRSWH

Product Overview & Key Benefits

The 120° PIR Sensor Module is a high-performance device designed for seamless integration in euro modular frames accommodating a 50 x 50mm module. This sensor offers an innovative solution for detecting motion while ensuring energy efficiency and convenient operation. Ideal for both residential and commercial applications, the sensor's override function makes it perfect for users who require flexibility in control. Whether you aim to enhance security in your home or improve energy management in a commercial space, this product stands out as the perfect choice.

Technical Specifications & Product Details

  • Voltage:220-240V, 50Hz
  • Maximum Loading:100W for LED lights and 200W for incandescent bulbs
  • Operation:Passive infrared detection technology
  • Detection Field:120° angle
  • Detection Range:Effective detection up to 5 metres
  • Override Function:Easily switch between automatic and manual modes
  • Suitable for:47mm mounting back box
  • Lux Sensitive:Features fixed time operation
  • Wiring Requirements:Requires Live and Neutral connections

Ideal Uses & Applications

This PIR Sensor Module is perfect for various applications, including:

  • Domestic Use:Ideal for home lighting control in hallways, gardens, or outdoor spaces.
  • Commercial Use:Suitable for offices, retail spaces, and restaurants to enhance safety and energy efficiency.
  • Hospitality Settings:Helps manage lighting for guests, providing a welcoming environment while conserving energy.
  • Security Systems:Enhances surveillance setups by detecting movement and activating response systems.

Energy Efficiency & Cost Savings

The 120° PIR Sensor Module is designed with energy savings in mind. By automating lighting control based on movement, users can significantly reduce their electricity consumption. Using energy-efficient LED bulbs, you may save up to 50% on your electricity bills compared to traditional incandescent lighting. Its intelligent design not only provides safety and convenience but also promotes eco-friendly practices.
