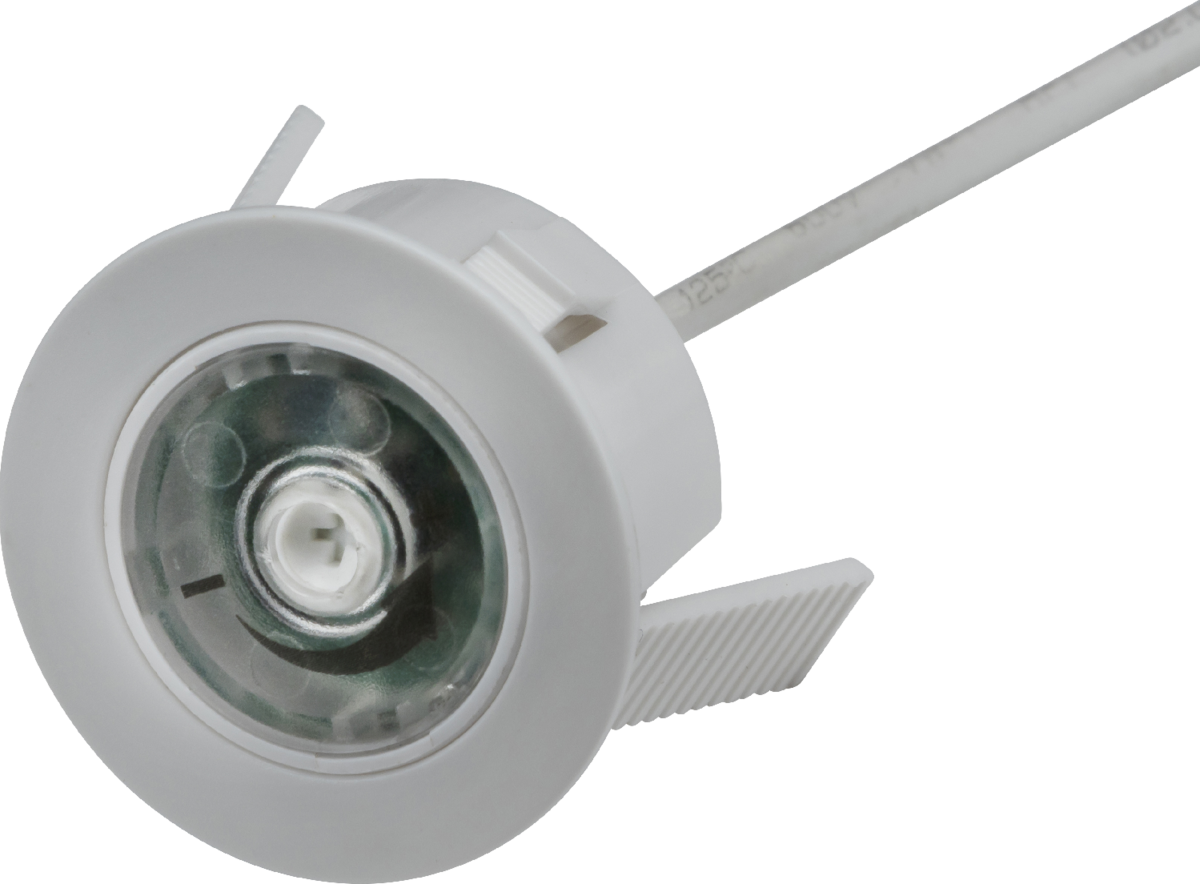

1-10V IP20 Daylight Sensor
Energy Saving
£
10
05
(Incl. VAT)
RRP: £11.16
WME Care
About this product
The ideal solution to saving energy. This daylight sensor is designed to maintain a consistent ambient light level by measuring the current light levels and then dimming the load via 1-10V.
- Lux threshold adjustable 10-500lux
- Dimming range 10% - 100%
- Pre-wired with 750mm of cable
- Suitable for panel-mounting, recessed and surface-mounting
- Must be used with a suitable 0-10V/1-10V LED load
-
Download
- Datasheet
- Instruction Manual
£
10
05
WME Care
FAST delivery by Order within
Get breakdown support
Warranty plans available. See terms
Technical Details
Specifications
Class
III
Finish
White
IP Rating
IP20
Cable Length
0.75 m
Construction
Polycarbonate
Primary Voltage
1-10V
Dimensions
Width
32 mm
Height
28 mm
Length
32 mm
Diameter
32 mm
Projection
2 mm
Recessed Depth
26 mm
Cut-out Diameter
18 mm
Cut-out with Sleeve
28 mm
Specifications
Class | III |
---|---|
Finish | White |
IP Rating | IP20 |
Cable Length | 0.75 m |
Construction | Polycarbonate |
Primary Voltage | 1-10V |
Dimensions
Width | 32 mm |
---|---|
Height | 28 mm |
Length | 32 mm |
Diameter | 32 mm |
Projection | 2 mm |
Recessed Depth | 26 mm |
Cut-out Diameter | 18 mm |
Cut-out with Sleeve | 28 mm |
1-10V IP20 Daylight Sensor features

1-10V Daylight Sensor, IP20, Adjustable Lux Threshold 10-500 Lux, Dimming 10%-100%, White, OS022
