Product Overview & Key Benefits

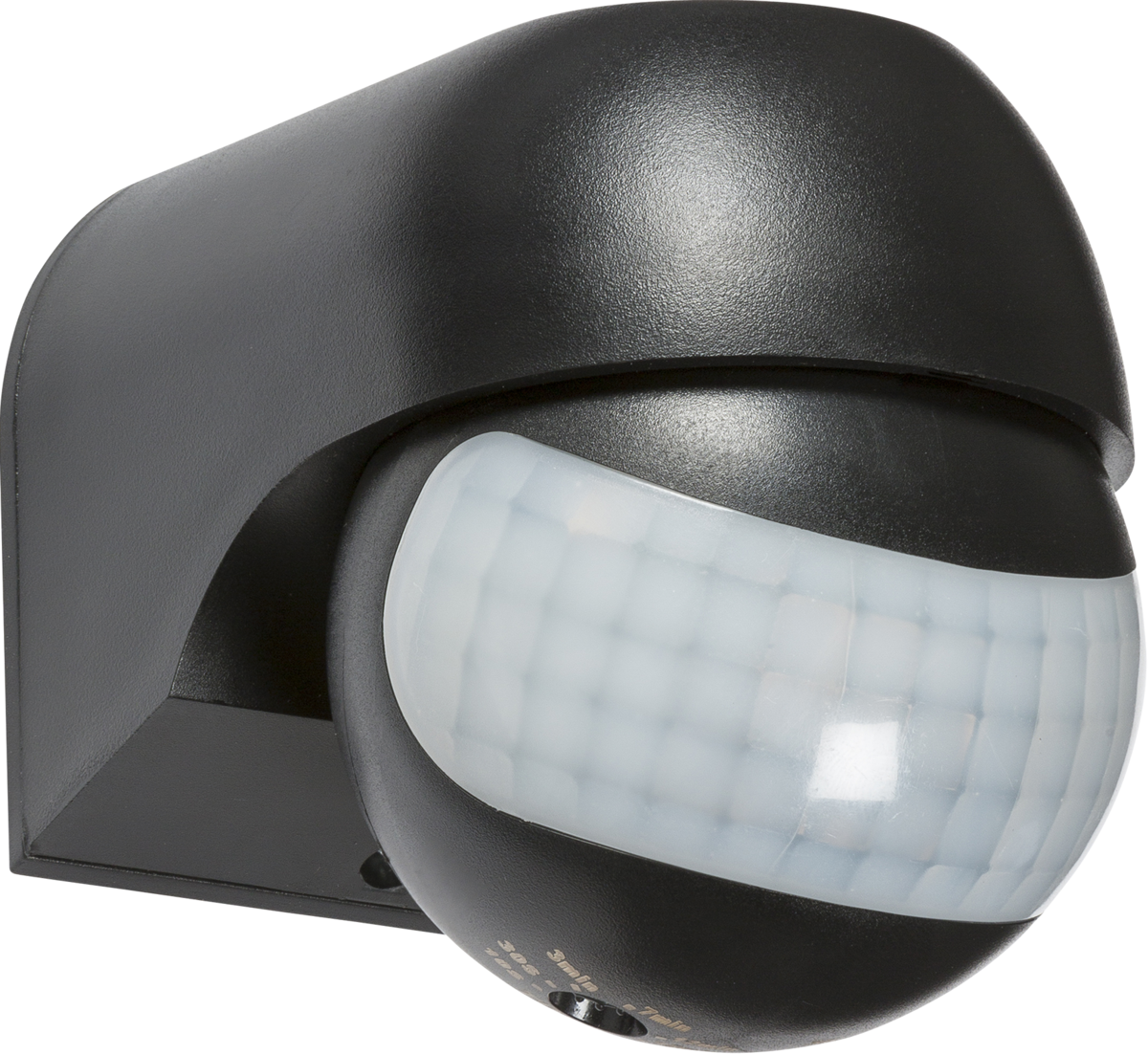

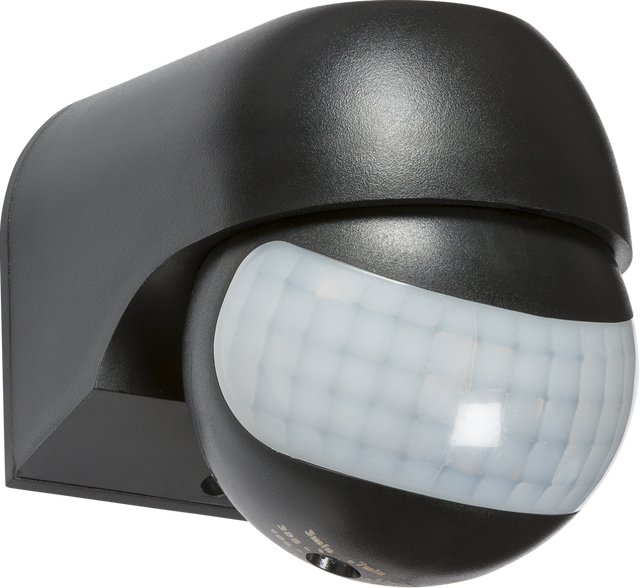

TheIP44 180° Mini PIR Sensoris an innovative and compact detection unit, ideal for enhancing security and automating lighting in both residential and commercial applications. With its sleek black finish and adjustable design, this sensor offers great flexibility in installation and operation, making it perfect for homeowners, businesses, and DIY enthusiasts alike.

Technical Specifications & Product Details

• Model:OS0014B
• IP Rating:IP44, ensuring protection against water and dust.
• Field of Detection:180°, providing a comprehensive coverage area.
• Max Range:12 metres when mounted at a height of 2.4 metres.
• Construction Material:Durable polycarbonate.
• Finish:Black.
• Primary Voltage:230V 50Hz.

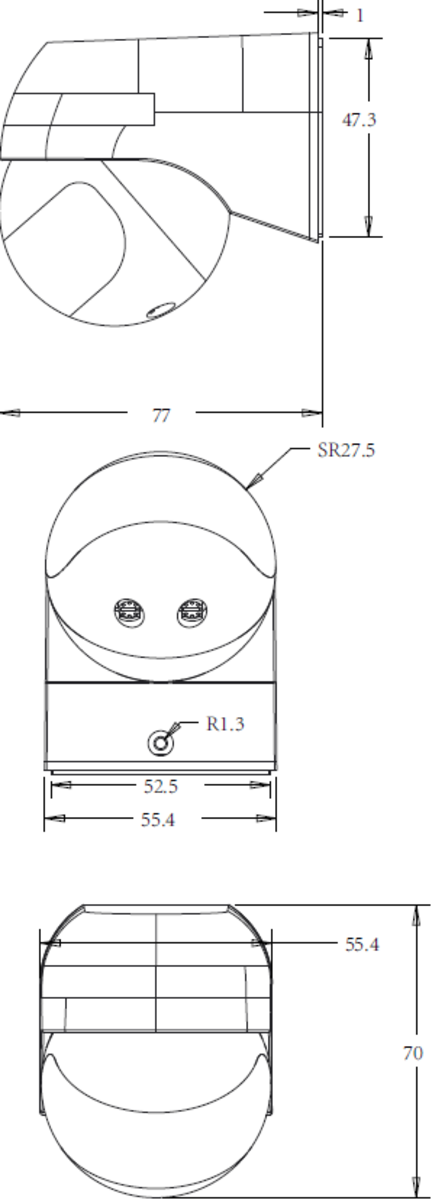

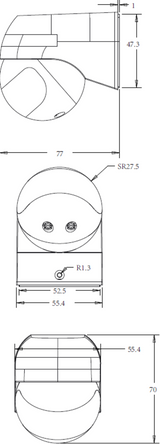

• Dimensions:55mm (Width) x 70mm (Height) x 77mm (Depth).
• Weight:0.24 kg.
• Time Adjustment:Set from 10 seconds to 15 minutes.
• Switching Capacity:Max 2000W for incandescent bulbs and max 1000W for LED bulbs.
• Class:II compliant.
• Complies with the following standards: EN 61058-1, EN 55015, EN 61547, EN 61000.

Ideal Uses & Applications

This Mini PIR Sensor is versatile and well-suited for various settings including:

• Domestic spaces such as hallways, gardens, and garages for automated lighting solutions.
• Commercial buildings including offices, retail stores, and public areas where enhanced security is required.
• Hospitality venues like hotels and restaurants to improve guest experience and safety.
• Outdoor applications, given its weather-resistant properties.

Energy Efficiency & Cost Savings

By incorporating the Mini PIR Sensor into your lighting system, not only do you enhance convenience and security, but you can also achieve considerable energy savings. This sensor helps reduce electricity usage by ensuring that lights are only on when necessary—potentially cutting your energy costs by up to 50%.

Investing in theIP44 Mini PIR Sensorwill contribute to an eco-friendly approach to energy consumption while providing reliable performance and convenience.
