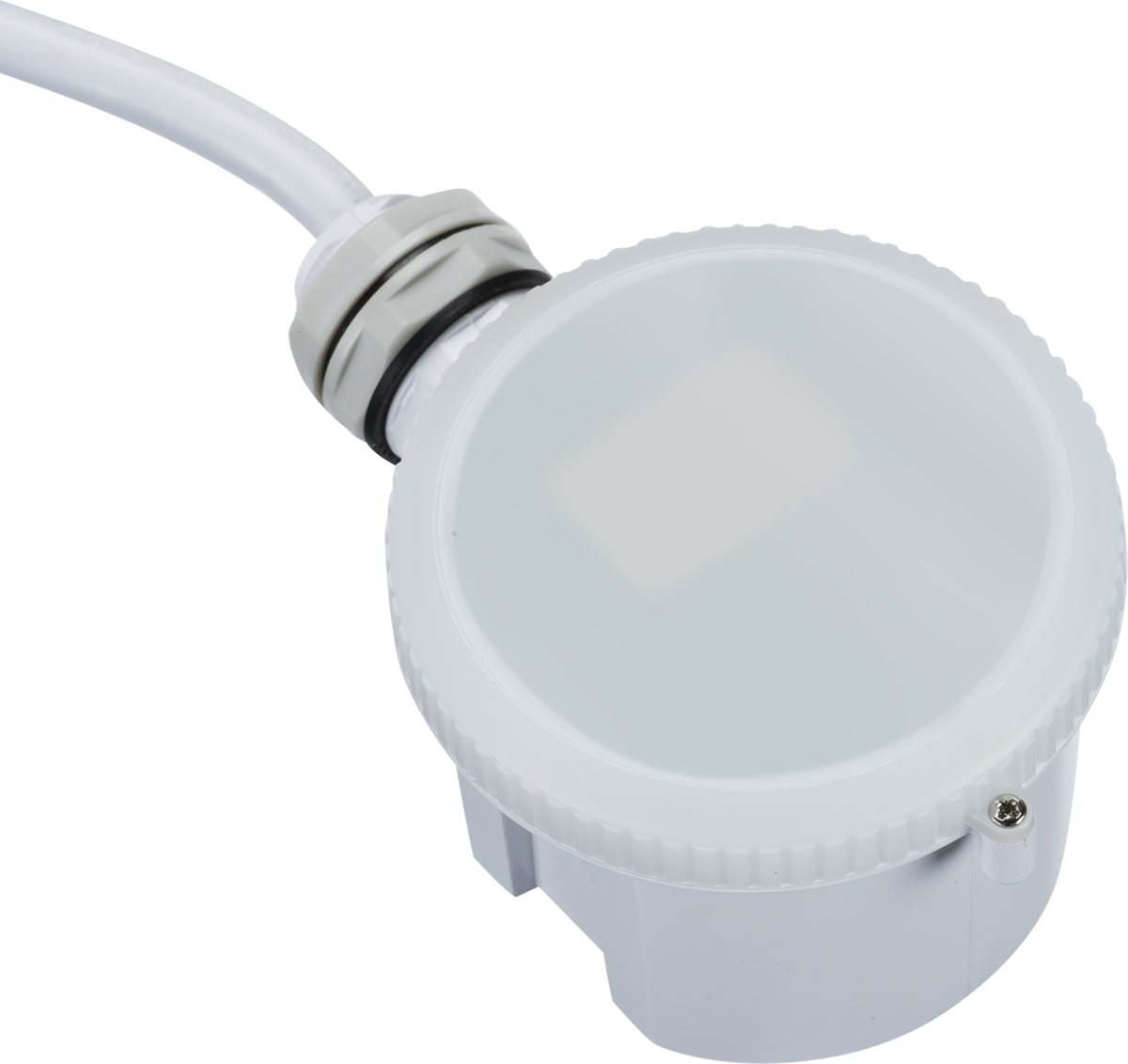

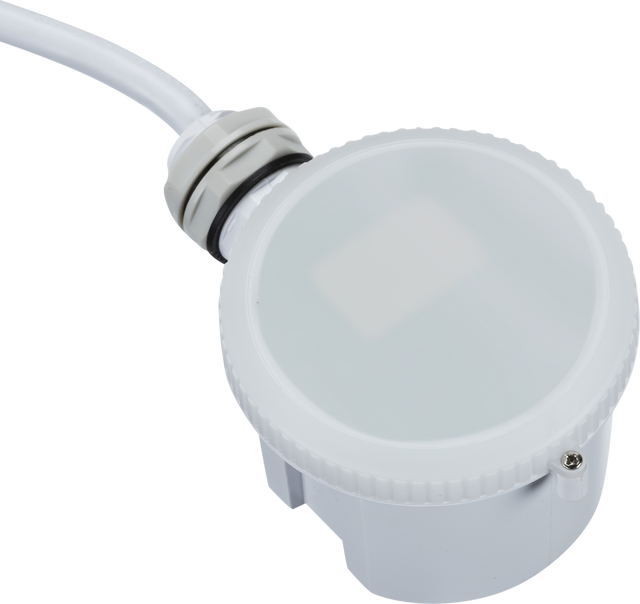

LWB 360° Microwave Dimming Sensor
Introducing the LWB 360° Microwave Dimming Sensor, designed to enhance your commercial lighting efficiency. This sensor is compatible with both LWB90 and LWB165 models and offers:
- 360° field of detection for all-around coverage.
- Optimum detection range of up to 8m at a 6m installation height.
- Adjustable hold time with options ranging from 5 seconds to 30 minutes.
- Lux level can be adjusted between 2 to 120 lux, with the ability to disable.
- 0-10V output for a seamless corridor dimming function.
- Customisable standby period, from 10 seconds to continuous dimming.
- Adjustable sensitivity levels from 50% to 100%.
This product meets rigorous IP65 standards, ensuring durability and protection against dust and water. Easy installation with 230V compatibility makes it an ideal choice for efficient lighting solutions.
Specifications
Dimensions
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP65 |
Cable Length | 0.5 m |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Length | 115 mm |
---|---|
Diameter | 80 mm |
Projection | 62 mm |
LWB 360° Microwave Dimming Sensor features

360° Microwave Dimming Sensor, White, IP65, Adjustable Lux 2-120Lux, 6m Detection, LWBMIC
