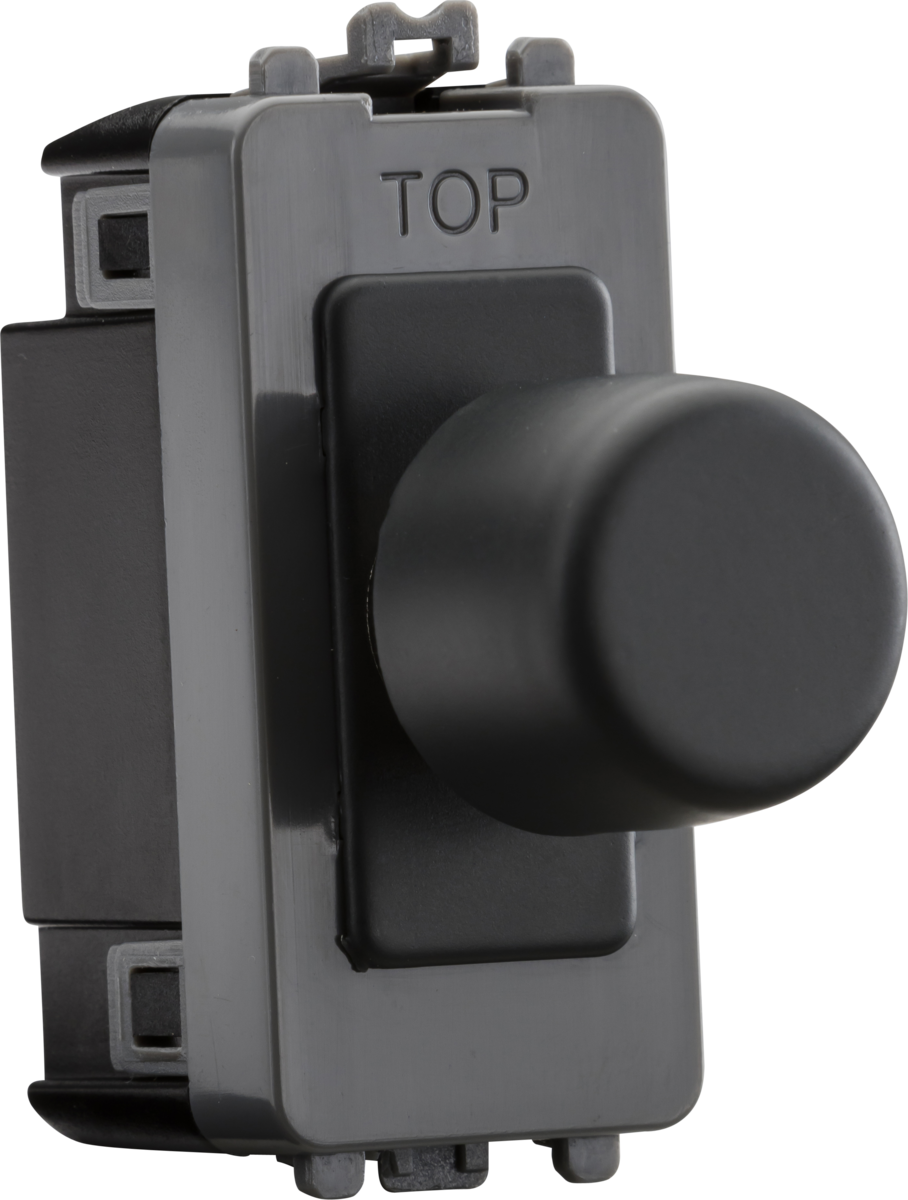

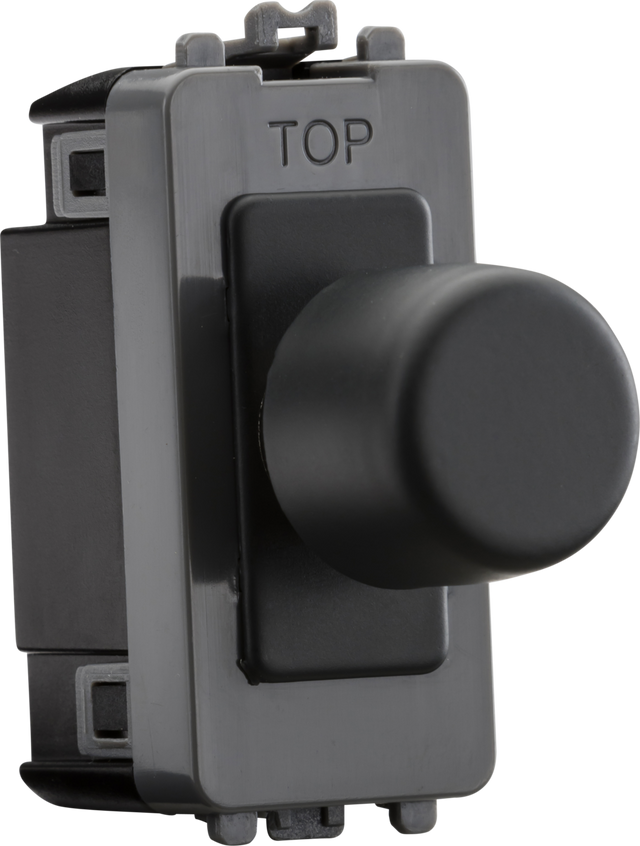

Knightsbridge: GDM150IAT, Intelligent Dimmer Switch, 2 Way, 10-150W, Anthracite, Rotary Action, Overload Protection
About this product
The 2-way 10-150W Intelligent Dimmer in Anthracite is designed for compatibility with various lamp types including:
- 10-150W incandescent
- 10-150W mains voltage halogen
- 10-150W LV halogen with electronic transformer
- 5-150W LED dimmable lamp
Features include:
- Push on/off functionality
- Rotary action dimmer
- Intelligent design switchable from Trailing Edge to Leading Edge
- Overload and Over Temperature protection
- Inrush Current Limiter (ICL)
Compatible with the Knightsbridge grid wiring system, this dimmer is a reliable choice for your lighting needs. Please check with the lamp manufacturer for compatibility. We recommend a maximum of 10-12 lamps per grid dimmer to prevent any inrush current problems.
Specifications
Dimensions
Specifications
| Finish | Anthracite |
|---|---|
| IP Rating | IP20 |
| Construction | Premium grade steel |
| Construction 2 | & ABS |
| Primary Voltage | 230V 50Hz |

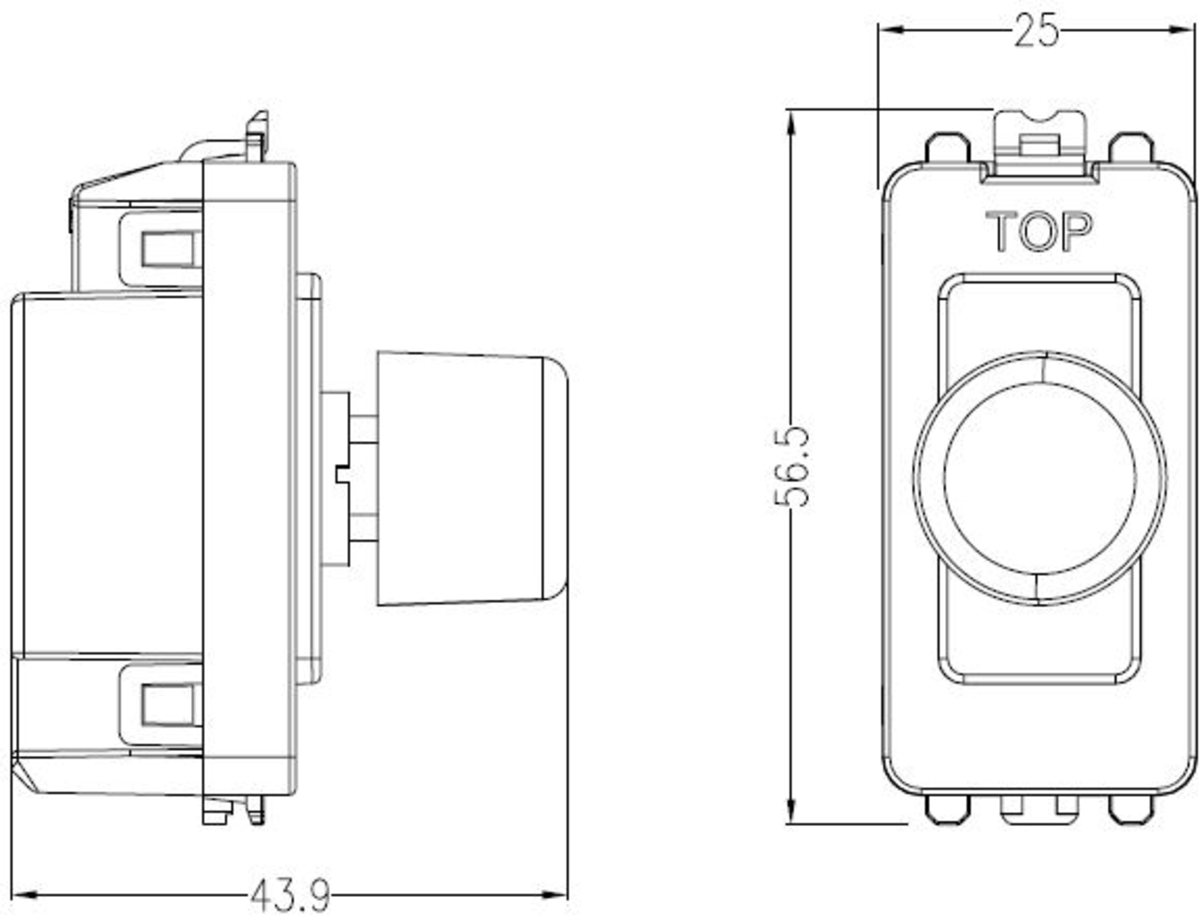

Dimensions
| Depth | 43.9 mm |
|---|---|
| Width | 25 mm |
| Height | 56.3 mm |
| Projection | 23 mm |
| Recessed Depth | 22 mm |
| Min. Mounting Box Depth | 35mm |
Intelligent Dimmer Switch - Anthracite features
Knightsbridge: GDM150IAT, Intelligent Dimmer Switch, 2 Way, 10-150W, Anthracite, Rotary Action, Overload Protection
