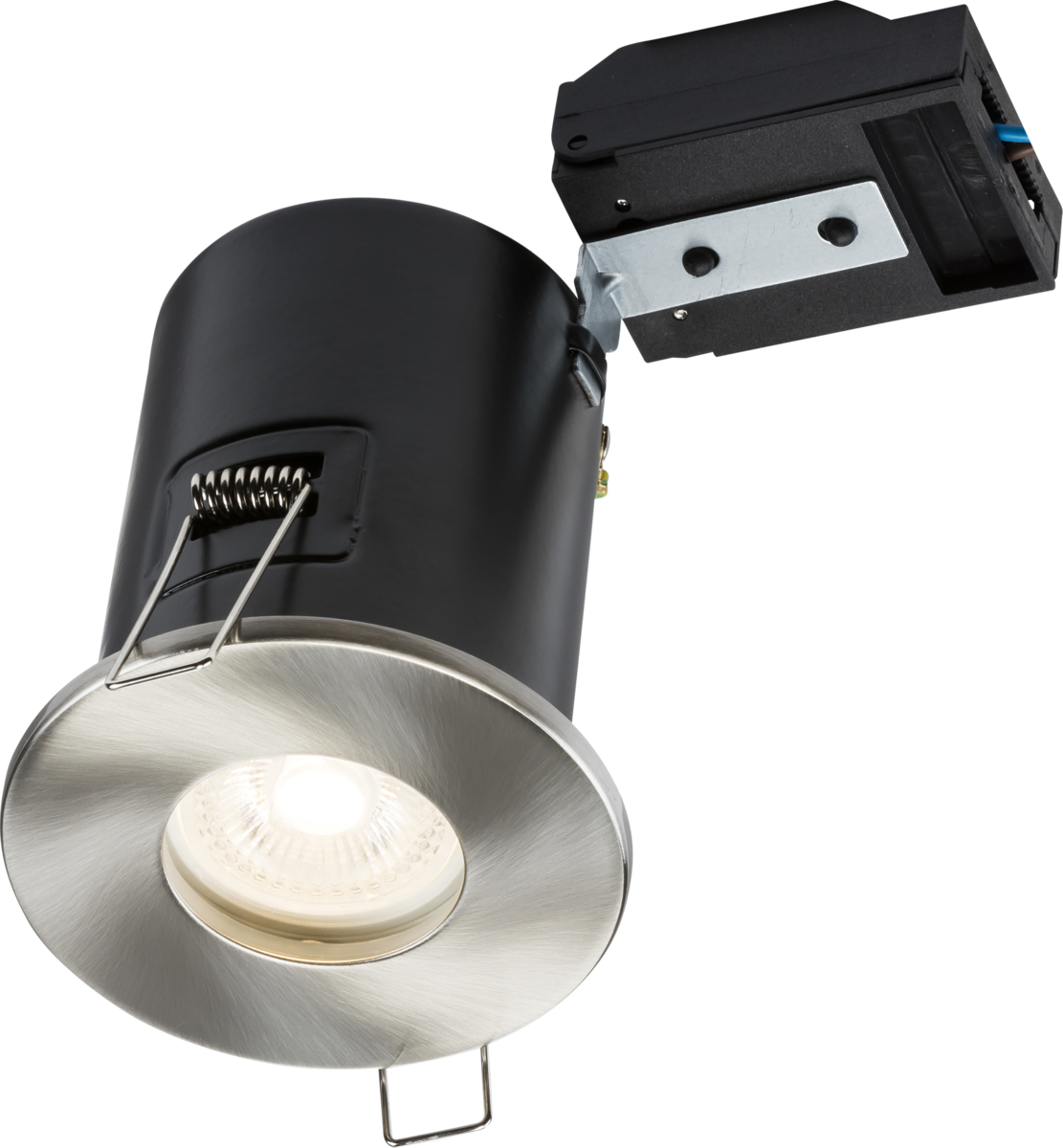

230V IP65 GU10 Fire-Rated Downlight
The 230V IP65 Fixed GU10 Fire-Rated Downlight is designed for easy installation and compliance with safety standards. It features:
- Fast-fix installation with push-fit terminals.
- Compatible with both LED and halogen lamps (Dimmable based on the lamp).
- Fire-rated for various applications: withstands 30/60/90 minutes in solid timber installations, and 30 minutes for web-joists and I-joists (Staircraft).
- IC rated when used with a maximum of 6W LED lamp.
Specifications:
Class I, Brushed Chrome finish, IP65 (IP20 from above), Pressed steel construction, Primary Voltage: 230V 50Hz.
Minimum order quantity: 20 pcs. *35W max. lamp not included.
Specifications
Dimensions
Lamp
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP65 (IP20 from above) |
Construction | Pressed steel |
Primary Voltage | 230V 50Hz |
Dimensions
Height | 92 mm |
---|---|
Diameter | 84 mm |
Projection | 5 mm |
Minimum Void | 167 mm |
Recessed Depth | 117 mm |
Cut-out Diameter | 69 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 35 W |
Lamp Included | No |
Lamp Technology | Halogen / LED Compatible |
230V IP65 GU10 Fire-Rated Downlight features

230V IP65 Brushed Chrome Fixed GU10 Fire-Rated Downlight, 35W Max, VFCFIPBC
