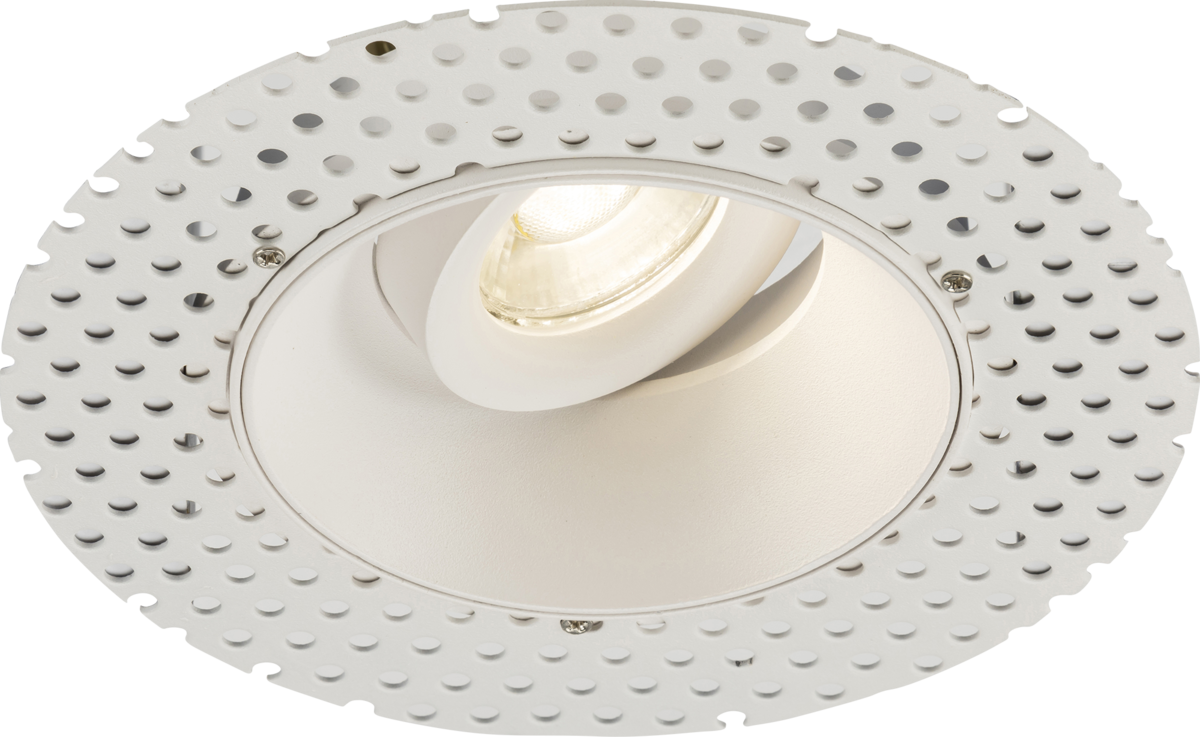

Odan Trimless GU10 Downlight
Introducing the Odan Single Tilt Round Trimless Downlight, designed flawlessly for both residential and commercial use.
- White finish for a sleek appearance.
- Trim-less design allows for seamless installation, plastered over for discrete illumination.
- Adjustable tilt functionality directs light exactly where needed.
- Raised light source to minimise glare.
- Easy-to-use pull-out lamp holder facilitates quick lamp changes below ceiling level.
- Tool-free cable termination simplifies installation with rapid second fix.
Suitable for Knightsbridge GU10 light sources, including dimmable and smart options, ensuring versatility and energy efficiency.
Meets UK and EU compliance standards with proper fire rating checks required for installation.
Specifications
Dimensions
Lamp
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 94 mm |
---|---|
Projection | 2 mm |
Minimum Void | 90 mm |
Recessed Depth | 38 mm |
Cut-out Diameter | 106 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 10 W |
Lamp Included | No |
Odan Trimless GU10 Downlight features

Odan Single Tilt Round Trimless Downlight, 10W, Adjustable GU10, IP20, White, OAA1TRW
