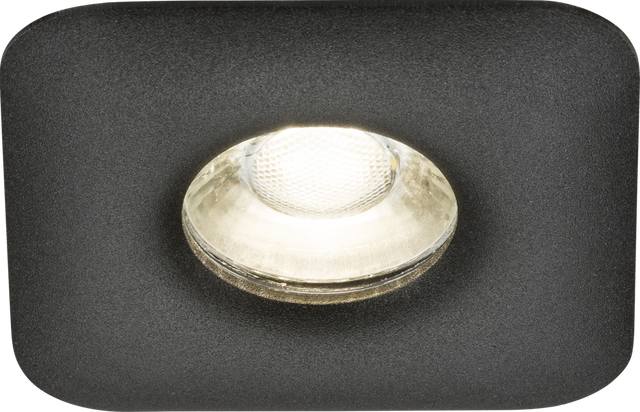

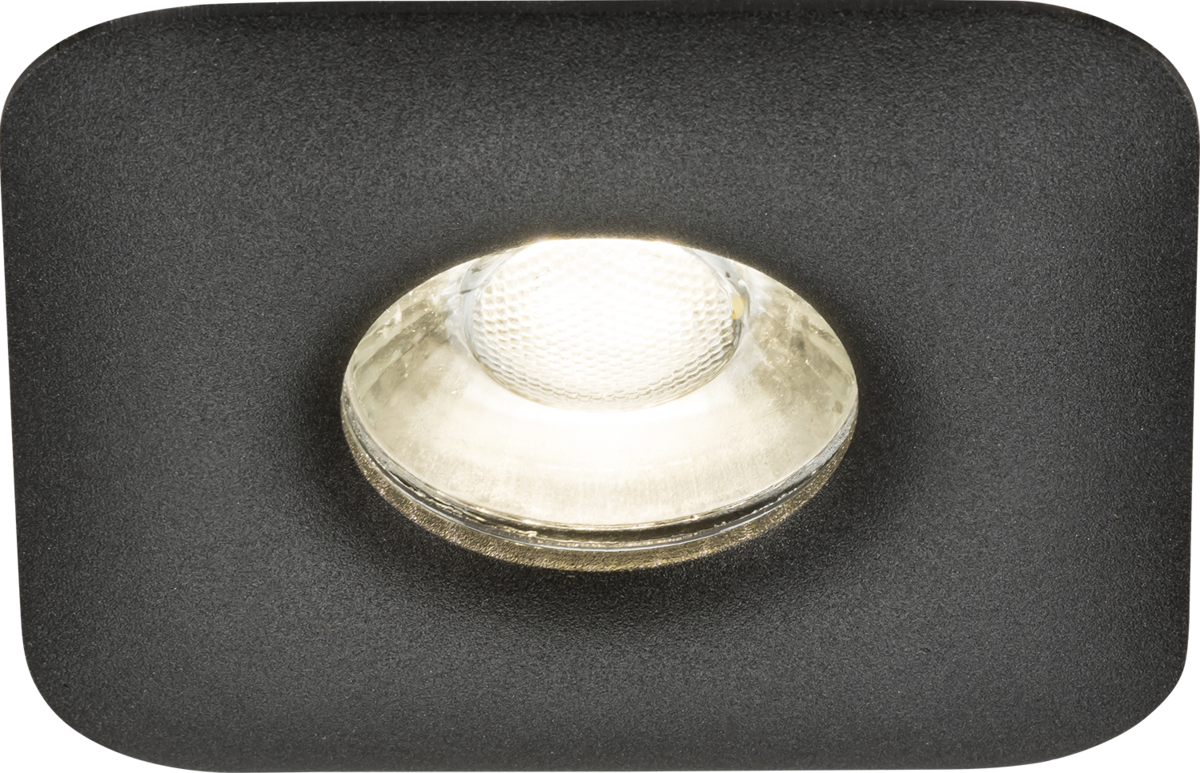

Odina Single Fixed Square Downlight
Discover the style and functionality of the Odina Single Fixed Square Downlight in sleek black finish, designed for various applications from residential to light commercial.
- GU10 LED lamp compatible
- Fixed and tilt options for flexibility
- Choice of elegant white or black finish
- Sleek, curved edge design, perfect for modern interiors
- Compatible with Knightsbridge range of fire hoods
Note: Ensure to check the size and specific fire rating compliance with the relevant fire hood technical and installation data. This product comes packaged in FSC approved materials, contributing to a brighter future.
Specifications
I
Black
IP20
Die-cast aluminium
230V 50Hz
Dimensions
82 mm
82 mm
6 mm
70 mm
30 mm
72 mm
Lamp
Lamp dependent
GU10
10 W
No
Specifications
Class | I |
---|---|
Finish | Black |
IP Rating | IP20 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |

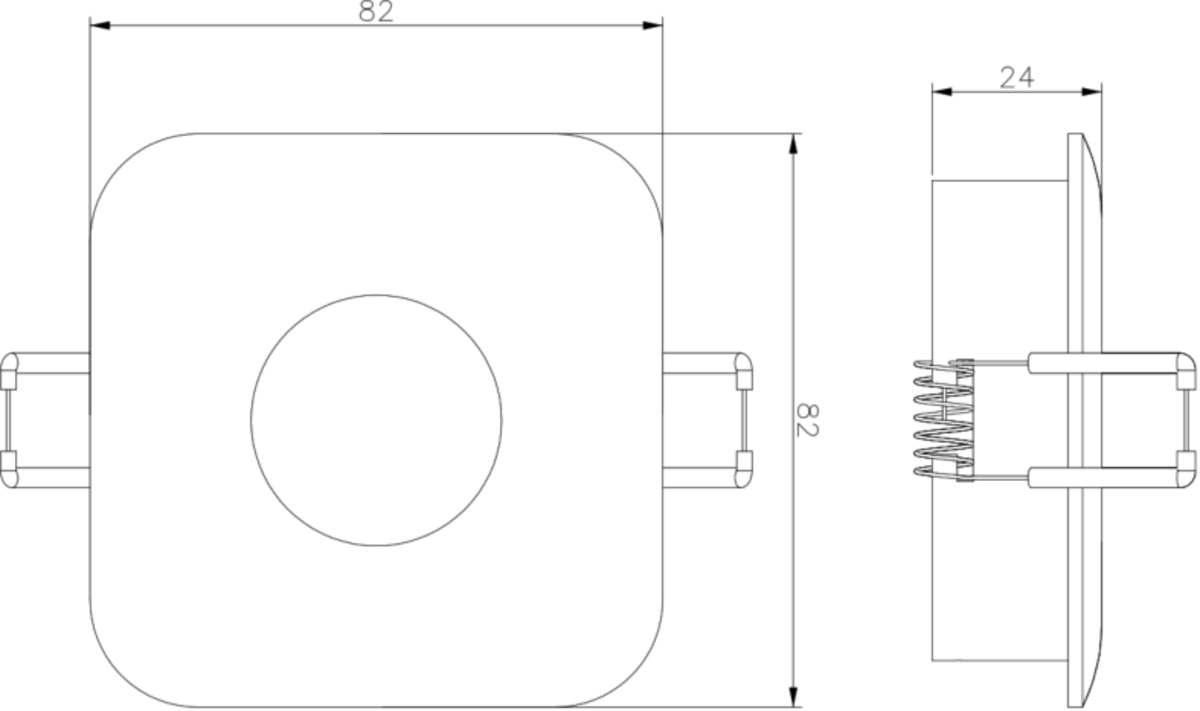

Dimensions
Width | 82 mm |
---|---|
Length | 82 mm |
Projection | 6 mm |
Minimum Void | 70 mm |
Recessed Depth | 30 mm |
Cut-out Diameter | 72 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 10 W |
Lamp Included | No |
Odina Single Fixed Square Downlight features

Odina Single Fixed Square Downlight, GU10 Compatible, 10W, IP20, Black Die-Cast Aluminium, ODA1FSB
