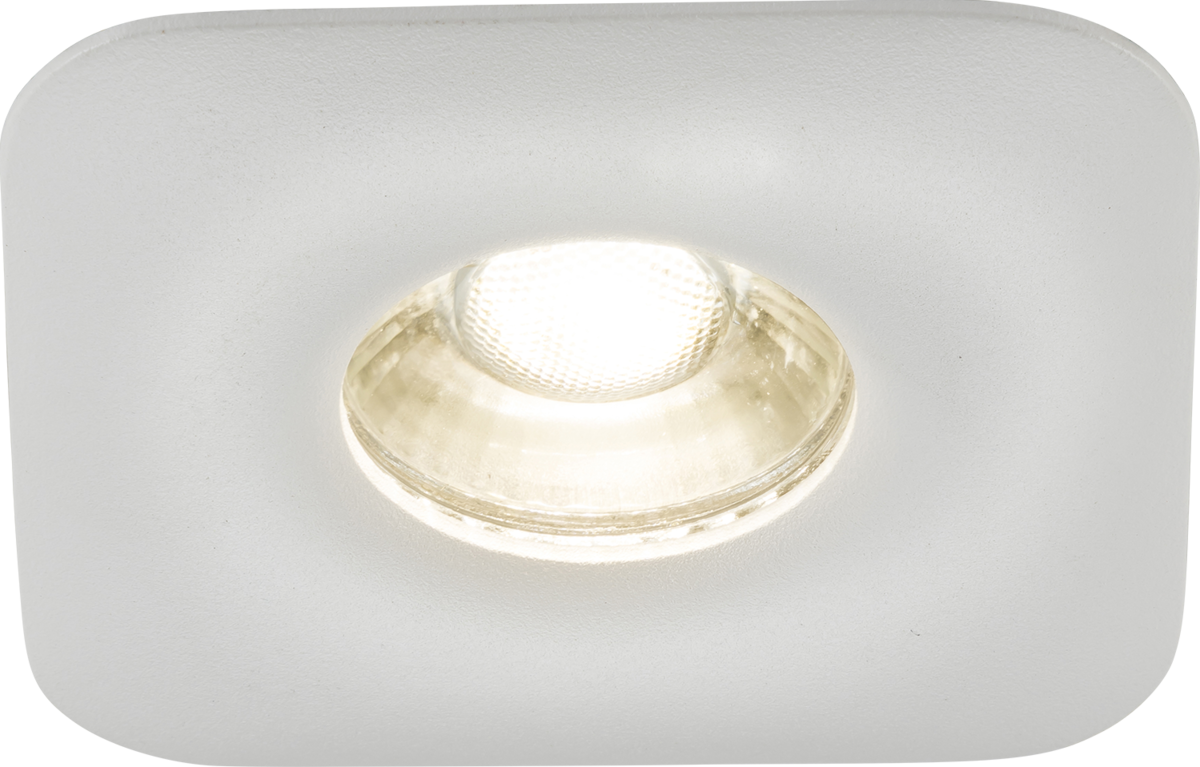

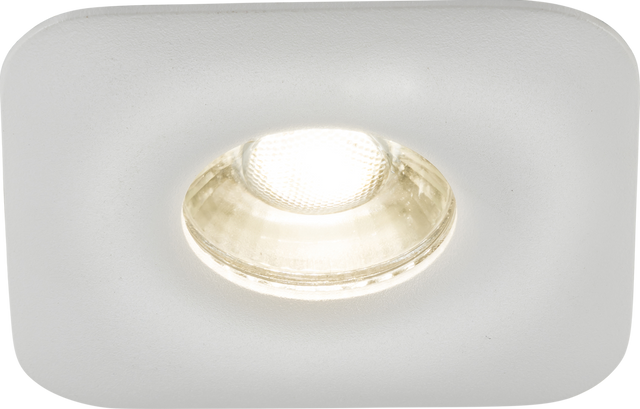

Odina White Square Downlight (GU10)
The Odina Single Fixed Square Downlight in White offers a seamless blend of elegance and functionality, making it ideal for various applications. Key features include:
- GU10 LED lamp compatible.
- Fixed and tilt options available.
- Available in sleek white or black finishes.
- Crafted from durable die-cast aluminium.
- IP20 rated for indoor use.
For installations requiring fire safety compliance, ensure compatibility with the Knightsbridge range of fire hoods. Visit the product link for more details on installation guidelines and compliance.
Specifications
Dimensions
Lamp
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |

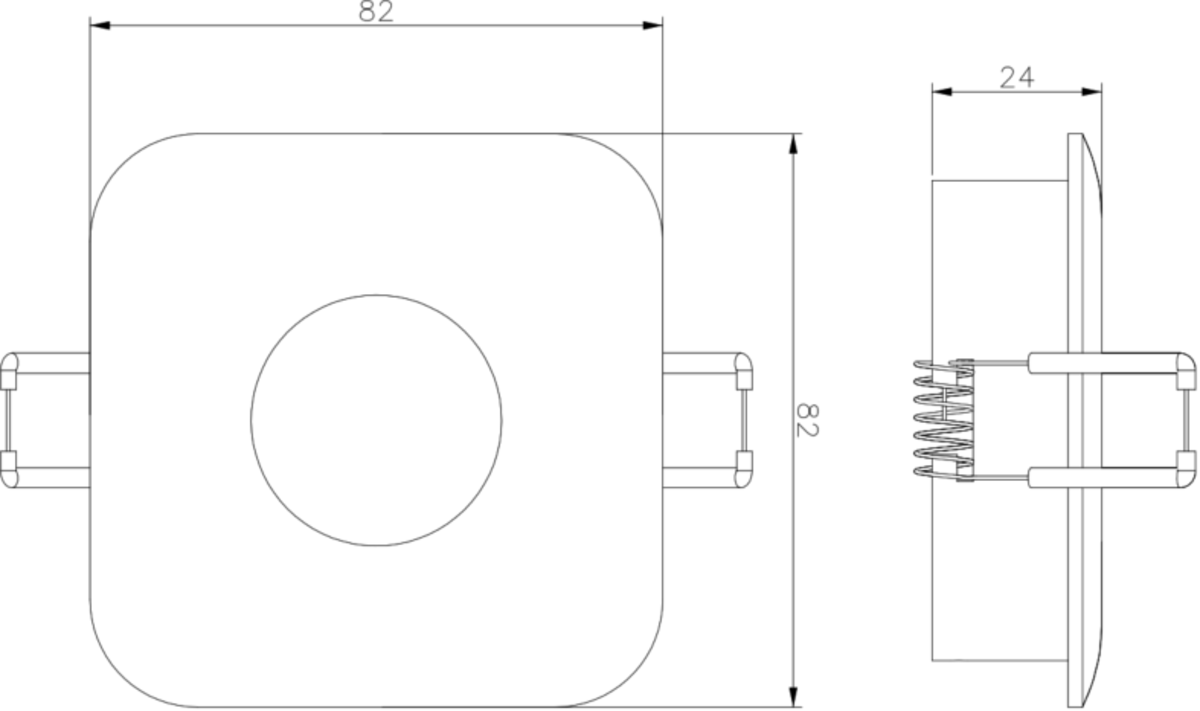

Dimensions
Width | 82 mm |
---|---|
Length | 82 mm |
Projection | 6 mm |
Minimum Void | 70 mm |
Recessed Depth | 30 mm |
Cut-out Diameter | 72 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 10 W |
Lamp Included | No |
Odina White Square Downlight (GU10) features

Odina Single Fixed Square Downlight, 82mm, GU10 Compatible, Die-Cast Aluminium, IP20, White Finish, 230V, ODA1FSW
