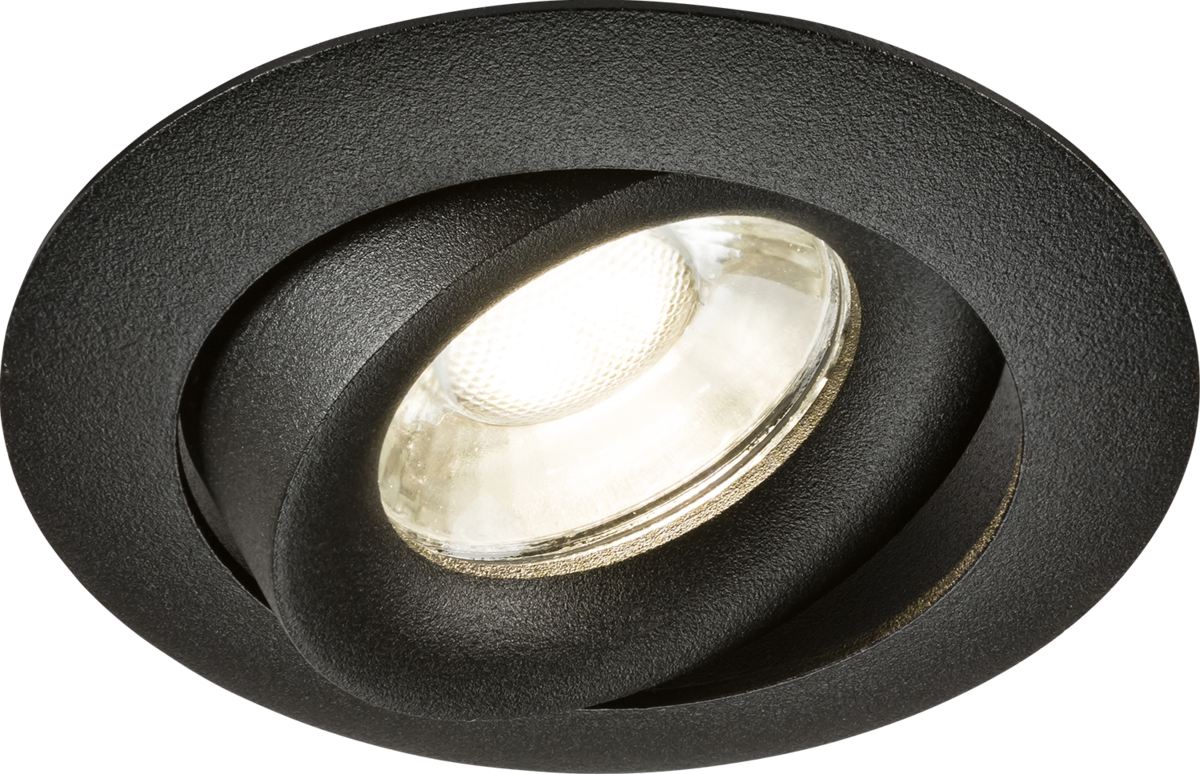

Odina Round Downlight - Black
The Odina is a simple yet elegant die-cast aluminium downlight solution that fits various applications, including residential and light commercial environments.
- GU10 LED lamp compatible
- Fixed and tilt options
- Available in white or black finish
- Curved, sleek edge design
- Compatible with Knightsbridge range of fire hoods*
Specifications:
*Check size and fire rating compliance with relevant fire hood technical data.
Specifications
Dimensions
Lamp
Specifications
Class | I |
---|---|
Finish | Black |
IP Rating | IP20 |
Construction | Die-cast aluminium |
Primary Voltage | 230V 50Hz |

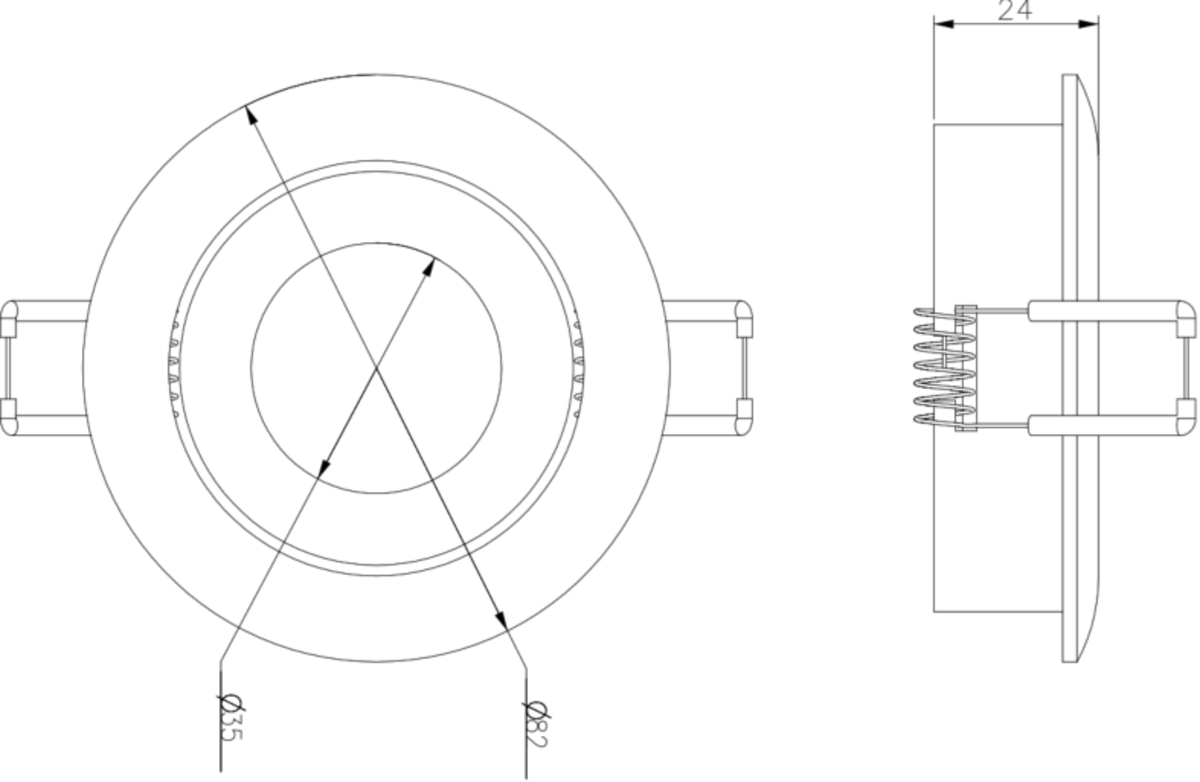

Dimensions
Tilt | 25 ° |
---|---|
Diameter | 82 mm |
Projection | 6 mm |
Minimum Void | 70 mm |
Recessed Depth | 30 mm |
Cut-out Diameter | 72 mm |
Lamp
Dimmable | Lamp dependent |
---|---|
Lamp Base | GU10 |
Max. Wattage | 10 W |
Lamp Included | No |
Odina Round Downlight - Black features

Odina Single Tilt Round Downlight, 25° Adjustable, GU10 Compatible, Black Finish, Die-Cast Aluminium, 230V, ODA1TRB
