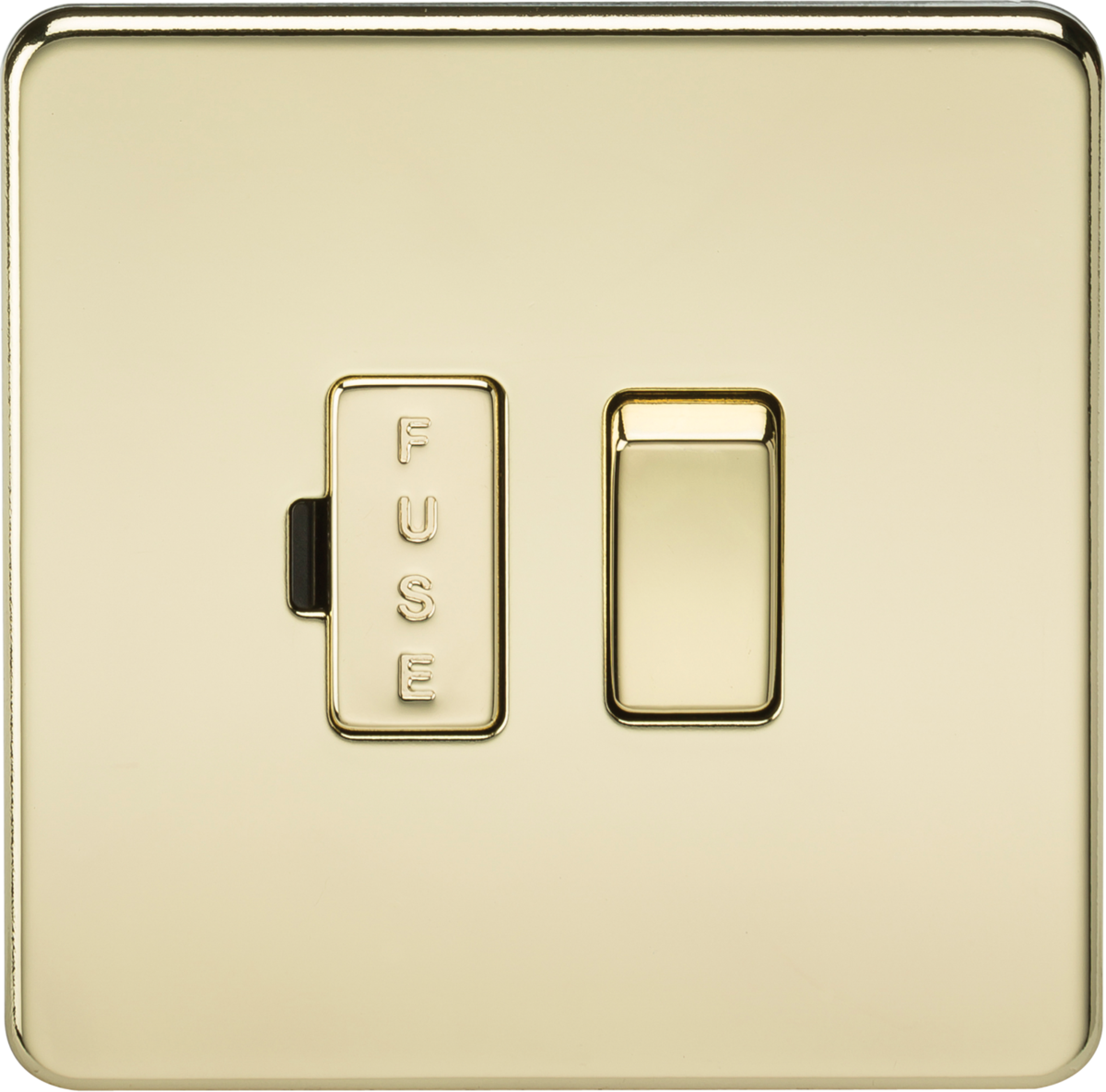

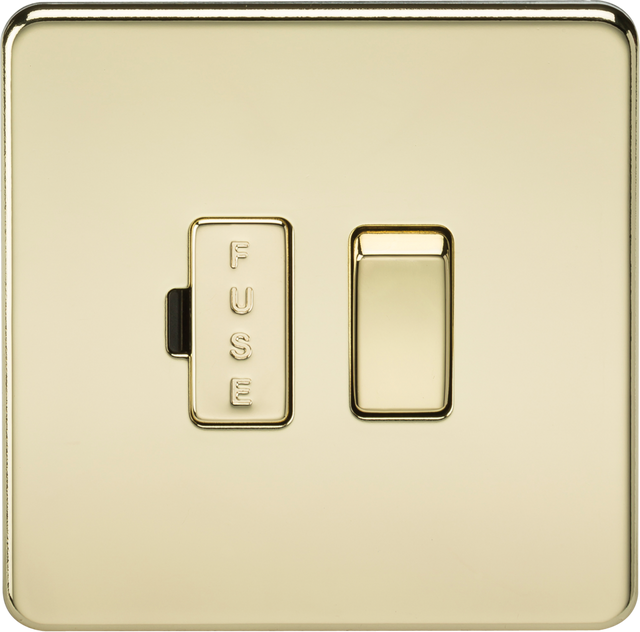

13A Switched Fused Spur Unit - Polished Brass
Introducing the 13A Switched Fused Spur Unit in a stunning Polished Brass finish.
- 13A rated for robust performance
- Switched feature for added convenience
- Screwless low profile design with integrated gasket
- Meets BS 1363-4 certification for safety
- Requires a minimum mounting box depth of 25mm
This unit is perfect for both DIY projects and professional installations, providing a touch of elegance combined with functionality.
Please ensure electrical installations comply with UK regulations.
CE & UKCA certified.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Polished Brass |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

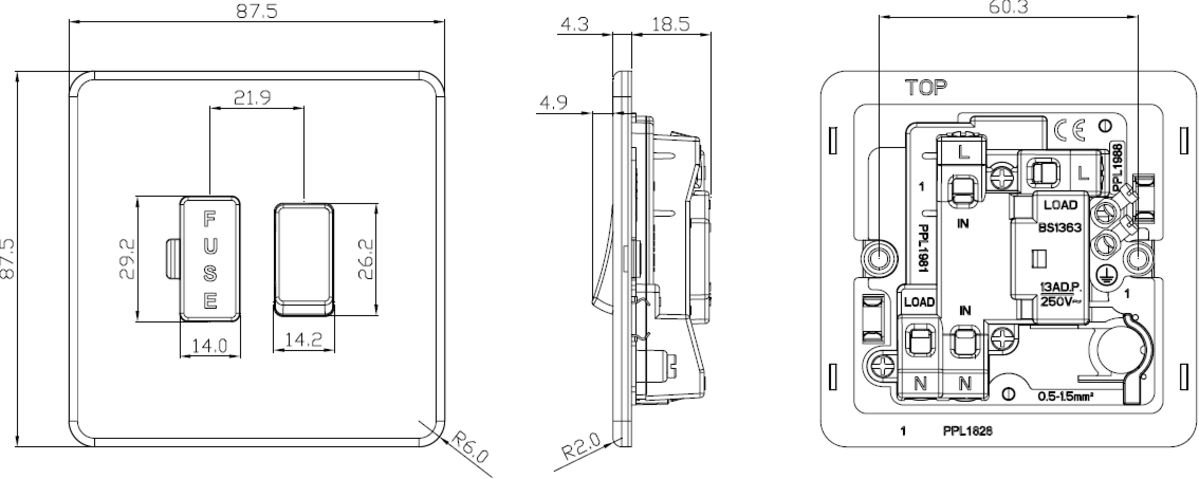

Dimensions
Depth | 27.7 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 9.2 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 18.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Neon Indicator | No |
13A Switched Fused Spur Unit - Polished Brass features

13A Switched Fused Spur Unit, Polished Brass, Screwless Low Profile, BS 1363-4 Approved, 230V, SF6300PB
