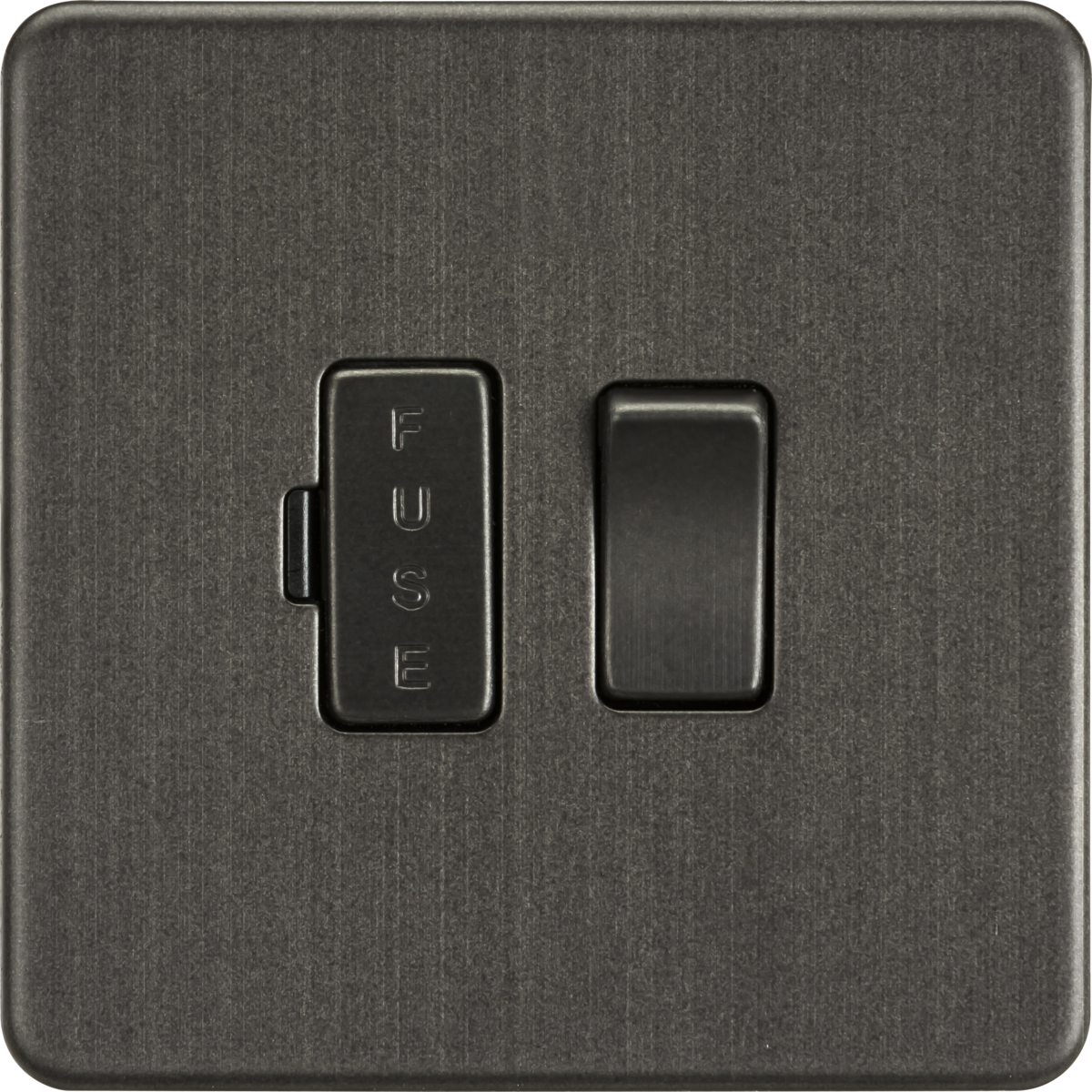

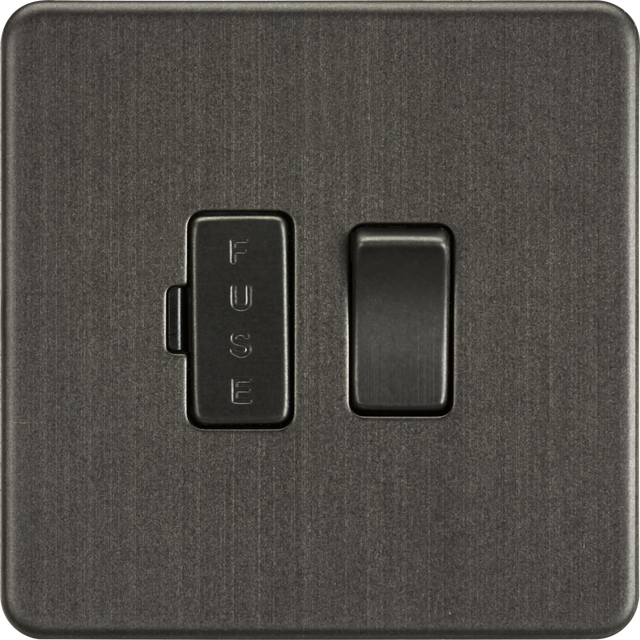

Knightsbridge: SF6300SB, 13A Switched Fused Spur Unit, Screwless, Smoked Bronze, IP20, 25mm Mounting Depth
About this product
Introducing our 13A Switched Fused Spur Unit in Smoked Bronze, designed to offer a seamless blend of style and functionality. This unit is perfect for domestic and commercial installation, meeting rigorous safety standards.
- 13A Rated with a switched function for enhanced control.
- Screwless low profile design, ensuring a sleek finish.
- Built-in gasket for weather-proof capabilities.
- Fully certified to BS 1363-4, ensuring safety and reliability.
- Requires a minimum mounting box depth of 25mm.
Suitable for a variety of applications in modern homes, providing a reliable and elegant solution for power supply.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Smoked Bronze |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

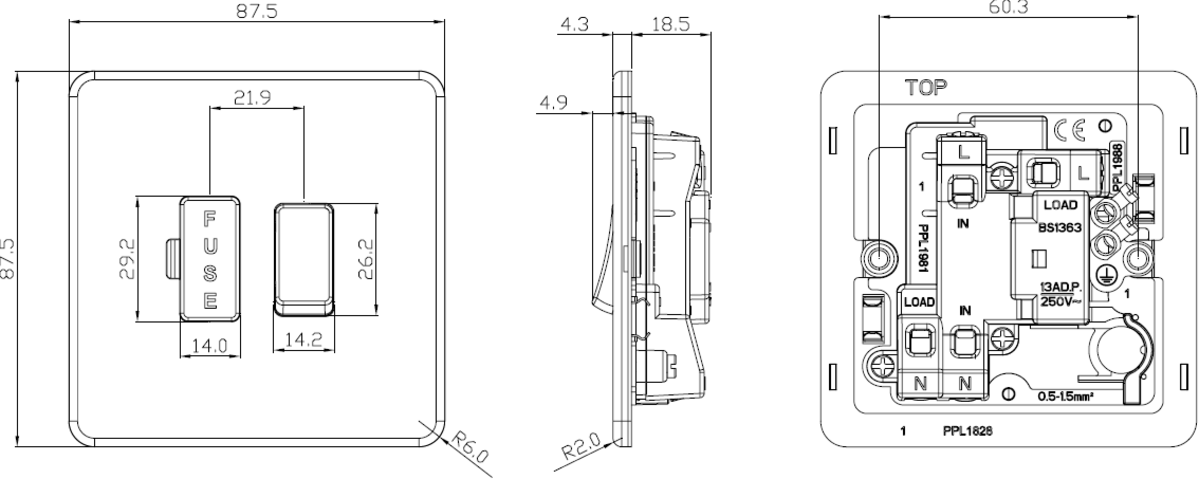

Dimensions
| Depth | 27.7 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 9.2 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 18.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | No |
13A Switched Fused Spur Unit - Smoked Bronze features
