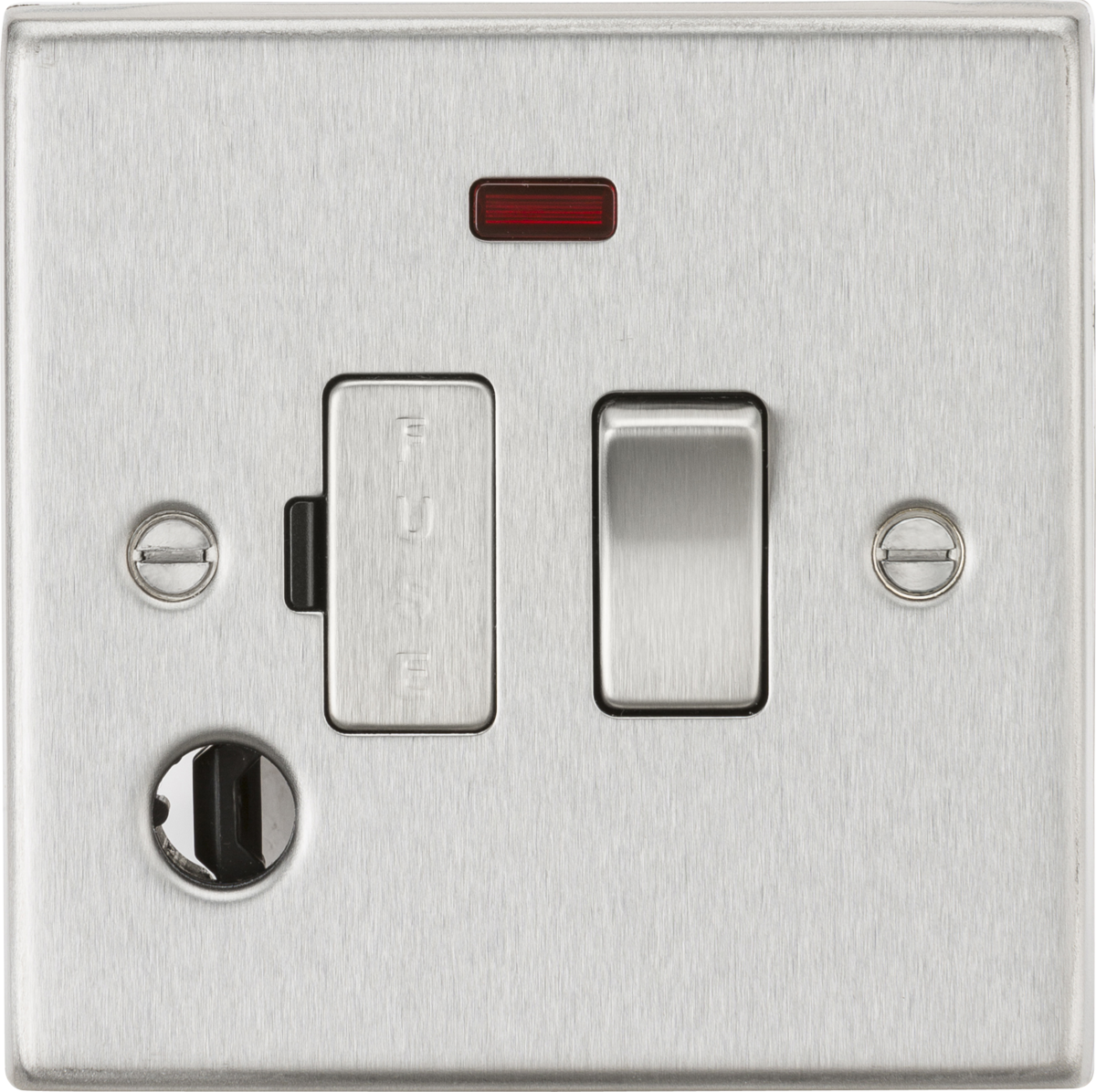

13A Switched Fused Spur Unit - Brushed Chrome
The 13A Switched Fused Spur Unit with Neon and Flex Outlet in Brushed Chrome is a stunning blend of functionality and modern aesthetics.
- Rated for 13A for robust performance.
- Double Pole operation ensures safety.
- Convenient neon indicator for easy status checking.
- Flex outlet for greater flexibility in installations.
- Square edge design with built-in gasket, ensuring a sleek fit.
- Certified to BS 1363-4 for quality assurance.
- Minimum mounting box depth of 25mm for easy fitting.
This unit is ideal for various applications, from home to commercial use, ensuring compliance with UK standards.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Brushed Chrome |
---|---|
IP Rating | IP20 |
Construction | 430 Stainless Steel |
Primary Voltage | 230V 50Hz |

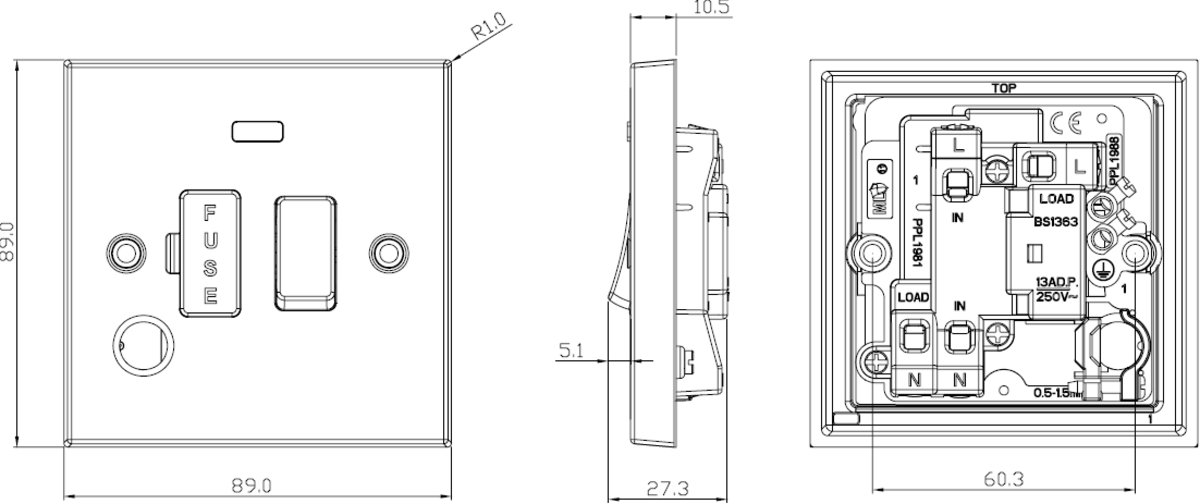

Dimensions
Depth | 27.3 mm |
---|---|
Width | 89 mm |
Height | 89 mm |
Projection | 15.6 mm |
Plate Depth | 10.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Neon Indicator | Yes |
13A Switched Fused Spur Unit - Brushed Chrome features

13A Switched Fused Spur Unit with Neon Indicator & Flex Outlet, Brushed Chrome, 230V, IP20, CS63FBC
