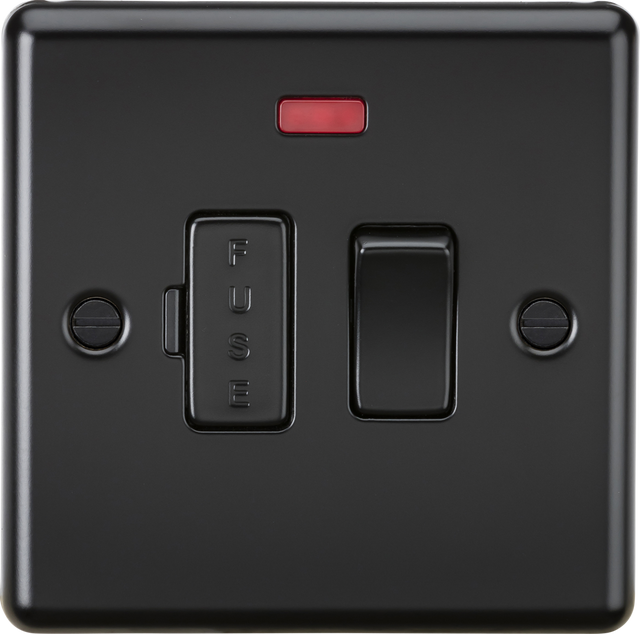

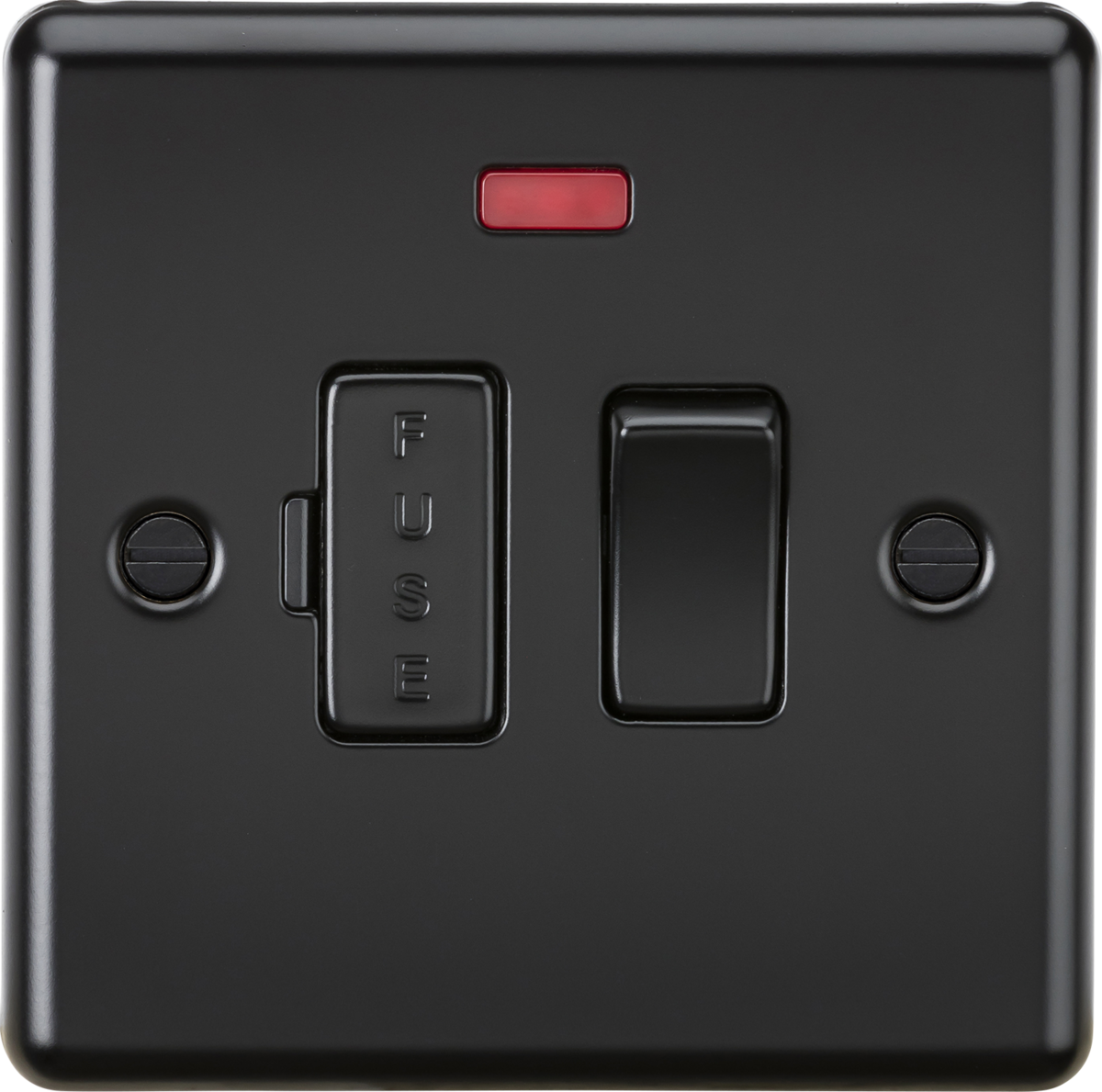

Matt Black 13A Switched Fused Spur Unit with Neon Indicator
The 13A Switched Fused Spur Unit comes with a neon indicator and is designed in a sleek Matt Black finish. This double pole unit is rounded edge and features a built-in gasket for added durability. Ideal for both DIY and professional installation.
- Rated for 13A
- Earth Terminal included for safety
- Compliant with BS 1363-4 standards
- Minimum mounting box depth of 25mm
- Constructed from durable 304 Stainless steel
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Matt Black |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

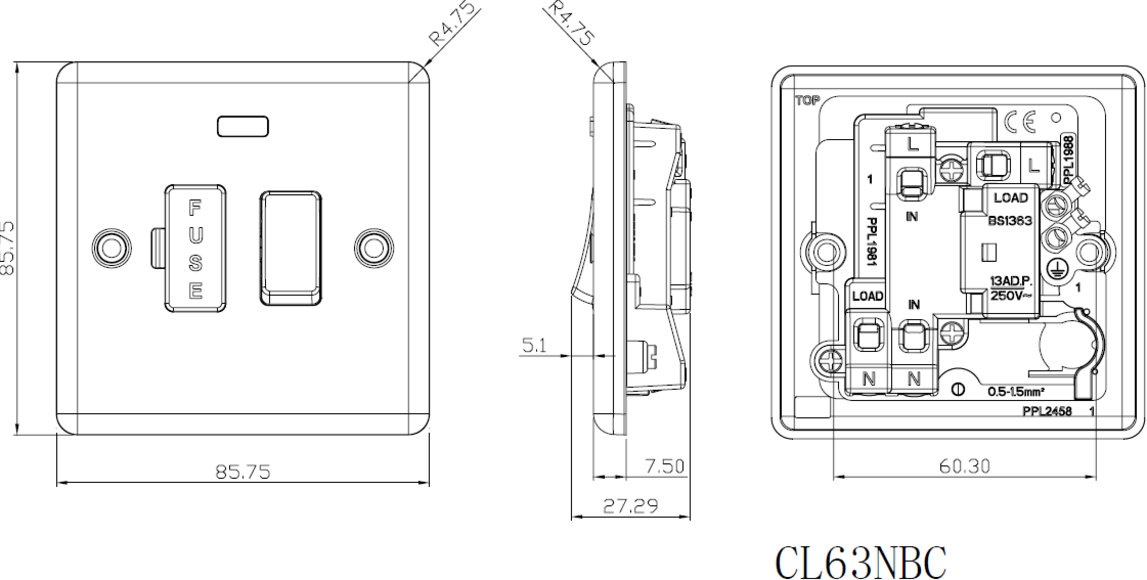

Dimensions
Depth | 27.29 mm |
---|---|
Width | 87.75 mm |
Height | 87.75 mm |
Projection | 12.6 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Neon Indicator | Yes |
Matt Black 13A Switched Fused Spur Unit with Neon Indicator features

Matt Black 13A Switched Fused Spur Unit with Neon Indicator, 304 Stainless Steel, Double Pole, IP20, 230V, CL63NMBB
