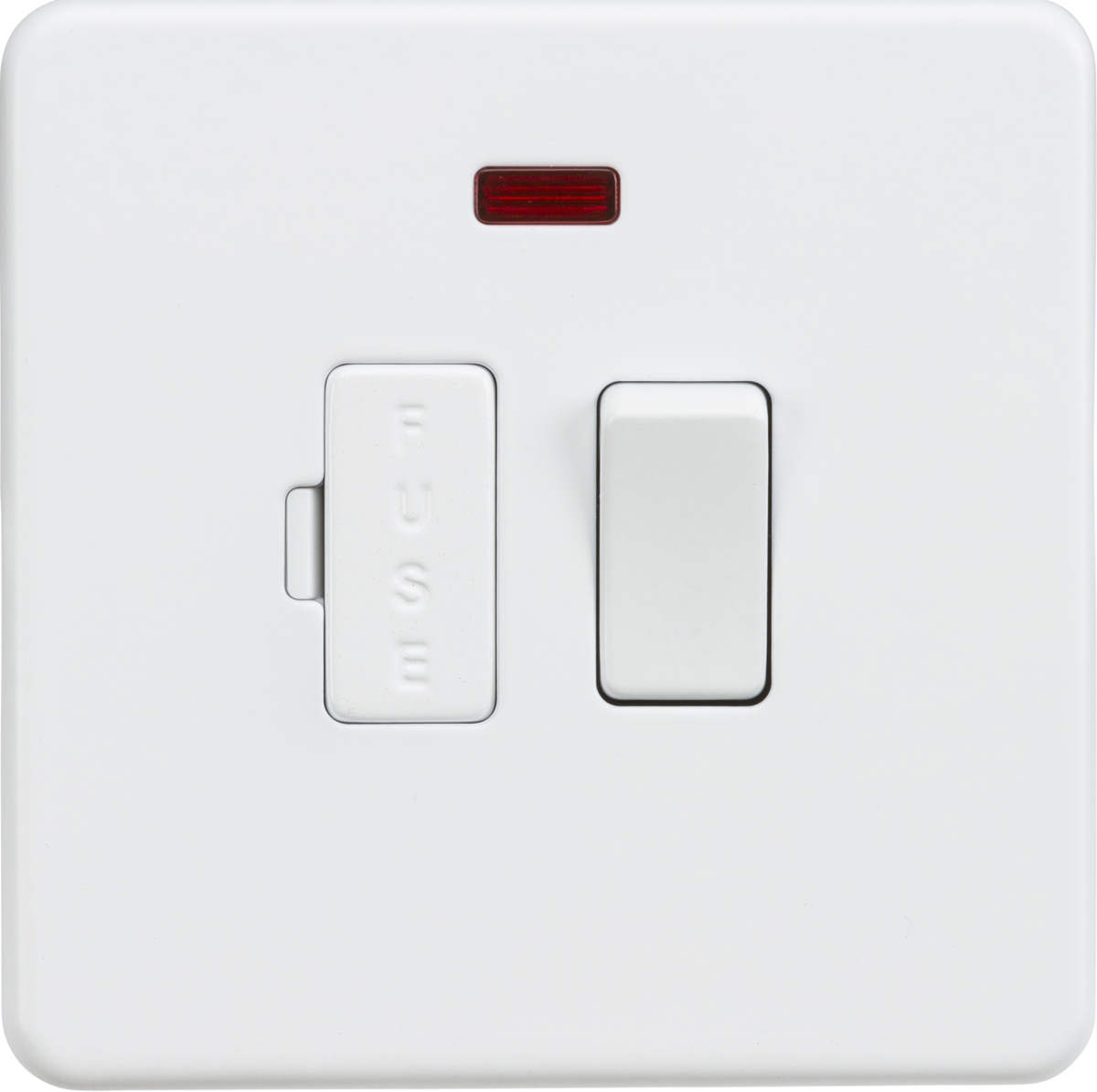

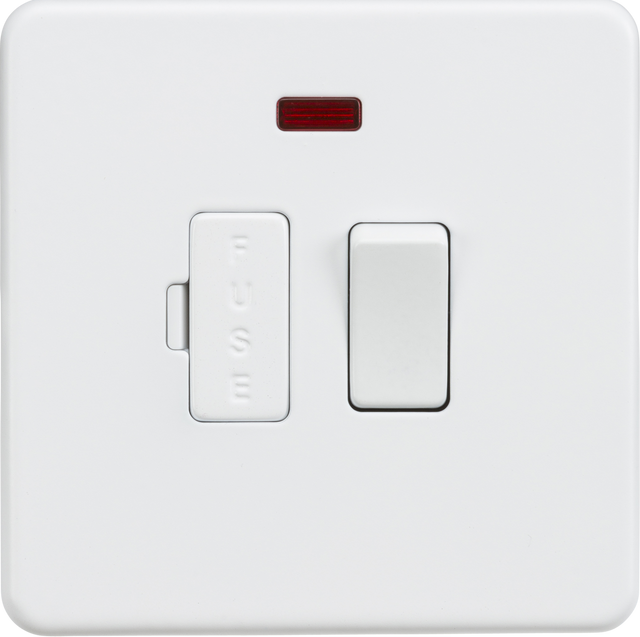

Knightsbridge: SF6300NMW, 13A Switched Fused Spur Unit, Screwless Design, Neon Indicator, Matt White, BS 1363-4, 230V, 27.7mm Depth
About this product
The 13A Switched Fused Spur Unit with Neon in Matt White features a seamless screwless design and is a reliable solution for your wiring needs.
- 13A rated for high performance.
- Built-in neon indicator for visibility.
- Screwless low-profile design facilitates easy installation.
- Complies with BS 1363-4 standards.
- Minimum mounting box depth required: 25mm.
Ideal for both DIY projects and professional installations, this unit combines functionality and aesthetics perfectly.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt White |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

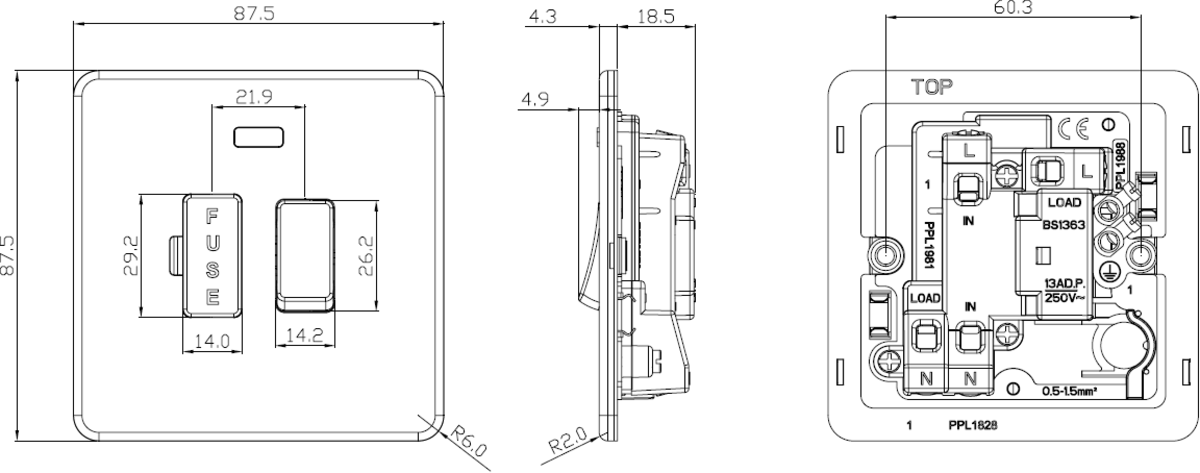

Dimensions
| Depth | 27.7 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 9.2 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 18.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | Yes |
13A Switched Fused Spur Unit with Neon - Matt White features
