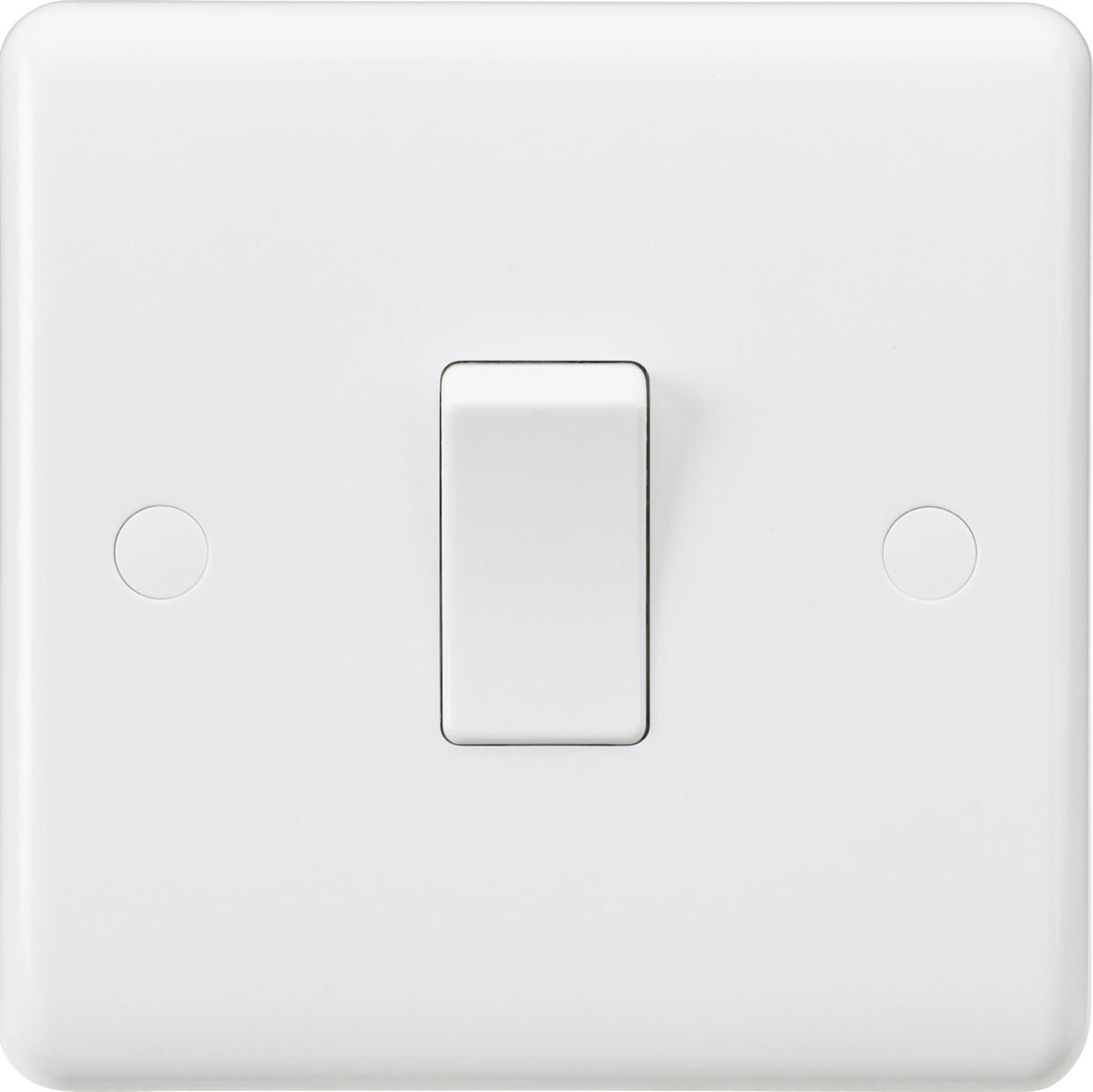

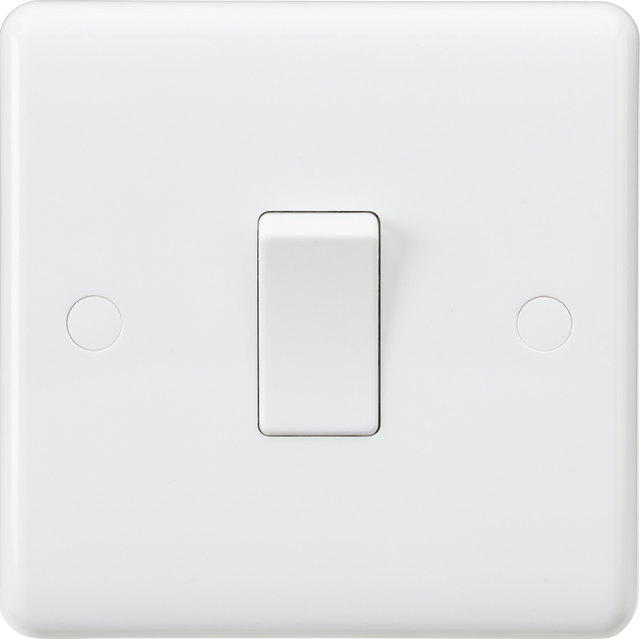

Knightsbridge: CU1000DP, 10AX Double Pole Light Switch, Compact Design, White Finish, 86mm x 86mm, EN 60669-1 Certified
About this product
The 10AX 1G DP Switch is designed for safety and durability, featuring a gently contoured 7mm plate with rounded edges. Its anti-microbial properties ensure cleanliness, making it suitable for various environments. Key features include:
- 10AX rated for reliable performance
- Double Pole switch for enhanced safety
- Includes screw cap covers for neatness
- Certified to EN 60669-1 standards
- Supplied in a convenient Knightsbridge rip top polybag with euro slot
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | White |
|---|---|
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |

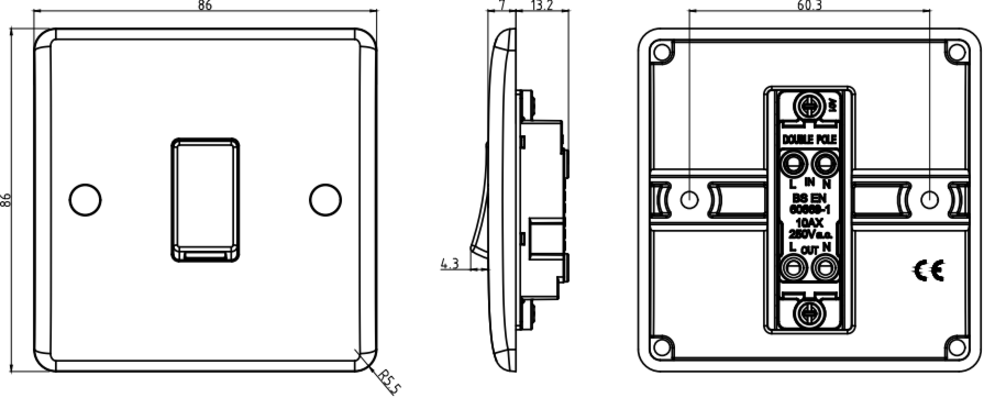

Dimensions
| Width | 86 mm |
|---|---|
| Height | 86 mm |
| Projection | 7 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
10AX 1G DP Switch - White features
