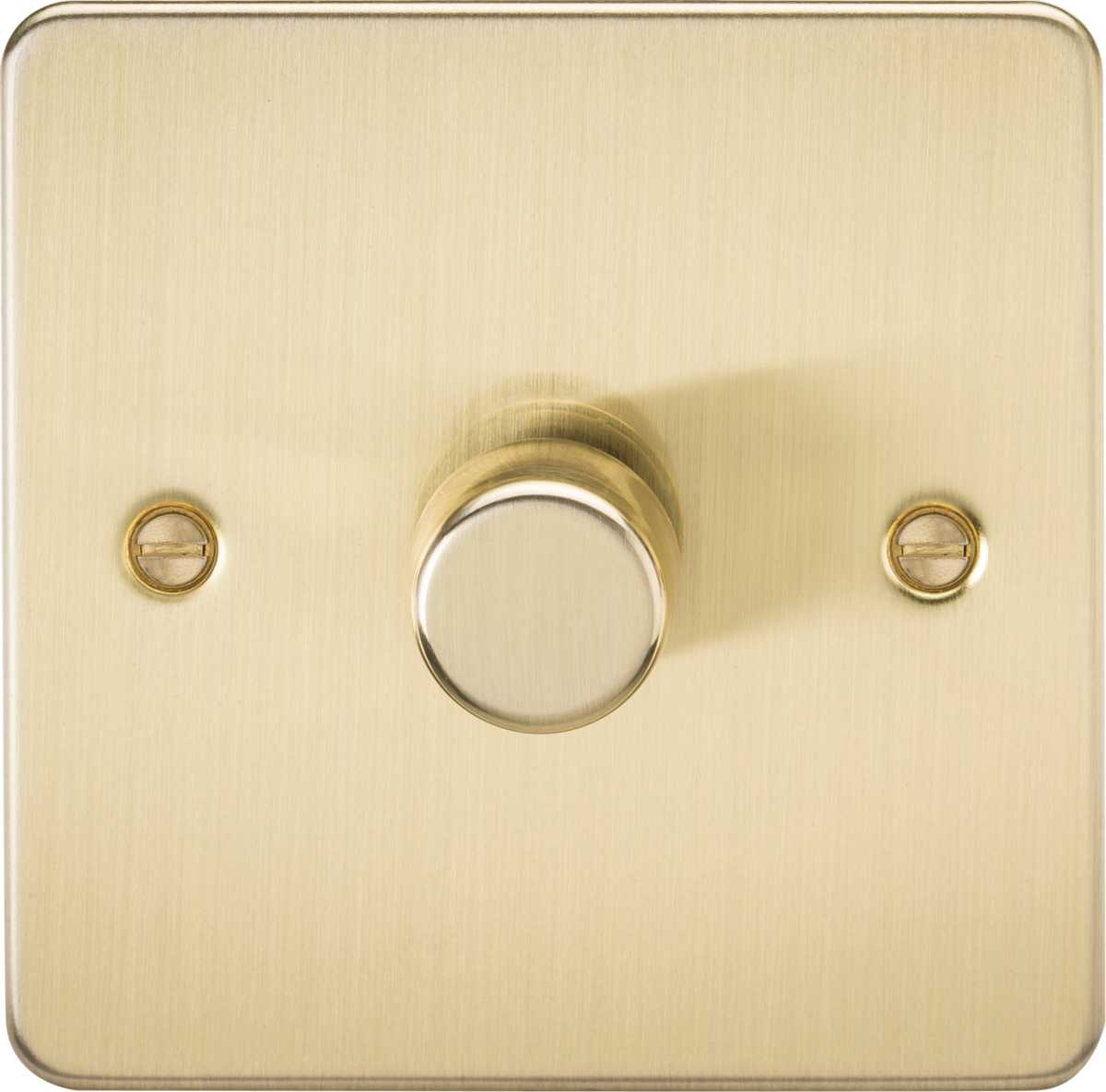

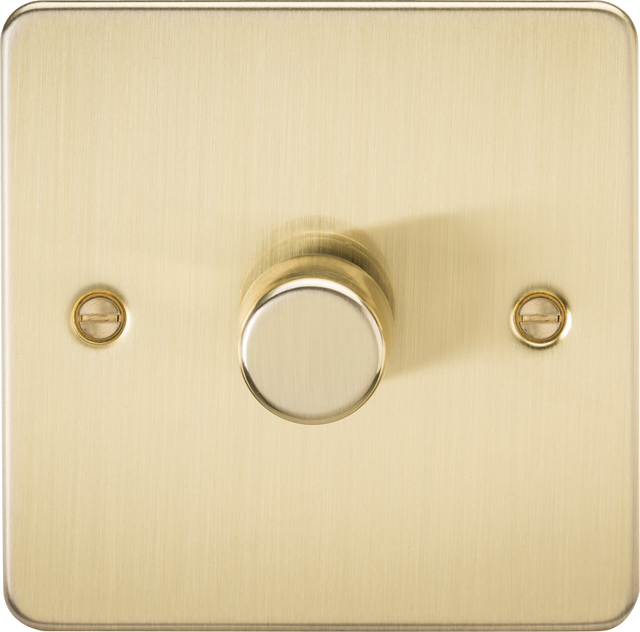

Knightsbridge: FP2191BB, 1 Gang Intelligent Dimmer, Brushed Brass, 10-200W, IP20, 230V
About this product
Perfect finishing touch to any modern home, Flat Plate low profile metal design with matching dimmer cap.
Key Features:
- Switch between Trailing-edge and Leading-edge modes, making this a highly compatible dimmer solution.
- Trim, switch modes and reset dimmer all from the front of the plate via the control knob – future proofing and making it easy to reset, re-adjust if there is a change of fitting or lamps.
- Push On/Off, rotary dimming action.
- Preset in Trailing-edge mode.
- 10-200W (5-150W LED) suitability.
- Overload and Overheat protection.
- Fitted with an Inrush Current Limiter (ICL).
Compliance: Suitable for use with dimmable lamps only.
NB: DO NOT USE IN A MIXED ENVIRONMENT i.e. different brands of lamps or different wattages of lamps in the same fitting.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Brushed Brass |
| IP Rating | IP20 |
| Construction | 201 Stainless steel |
| Primary Voltage | 230V 50Hz |

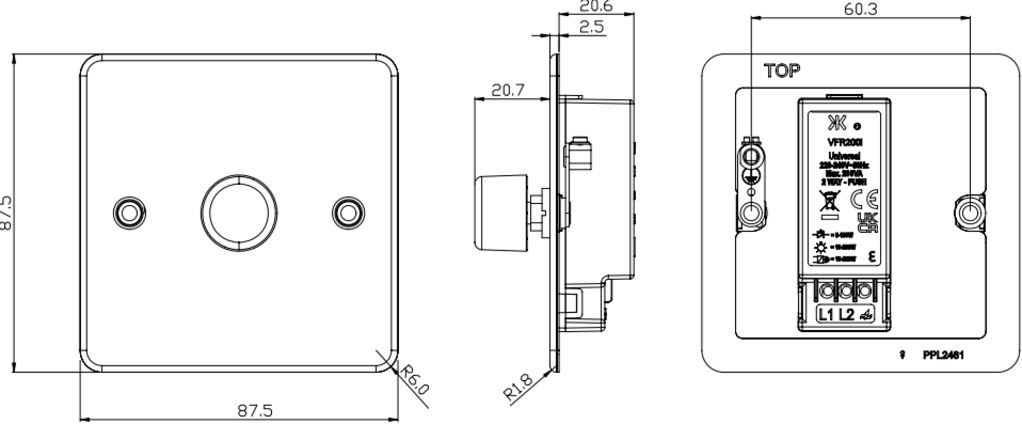

Dimensions
| Width | 87.5 mm |
|---|---|
| Height | 87.5 mm |
| Projection | 2.5 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Terminal | Screw |
|---|---|
| Earth Terminal | Yes |
1G Intelligent Dimmer - Brushed Brass features
