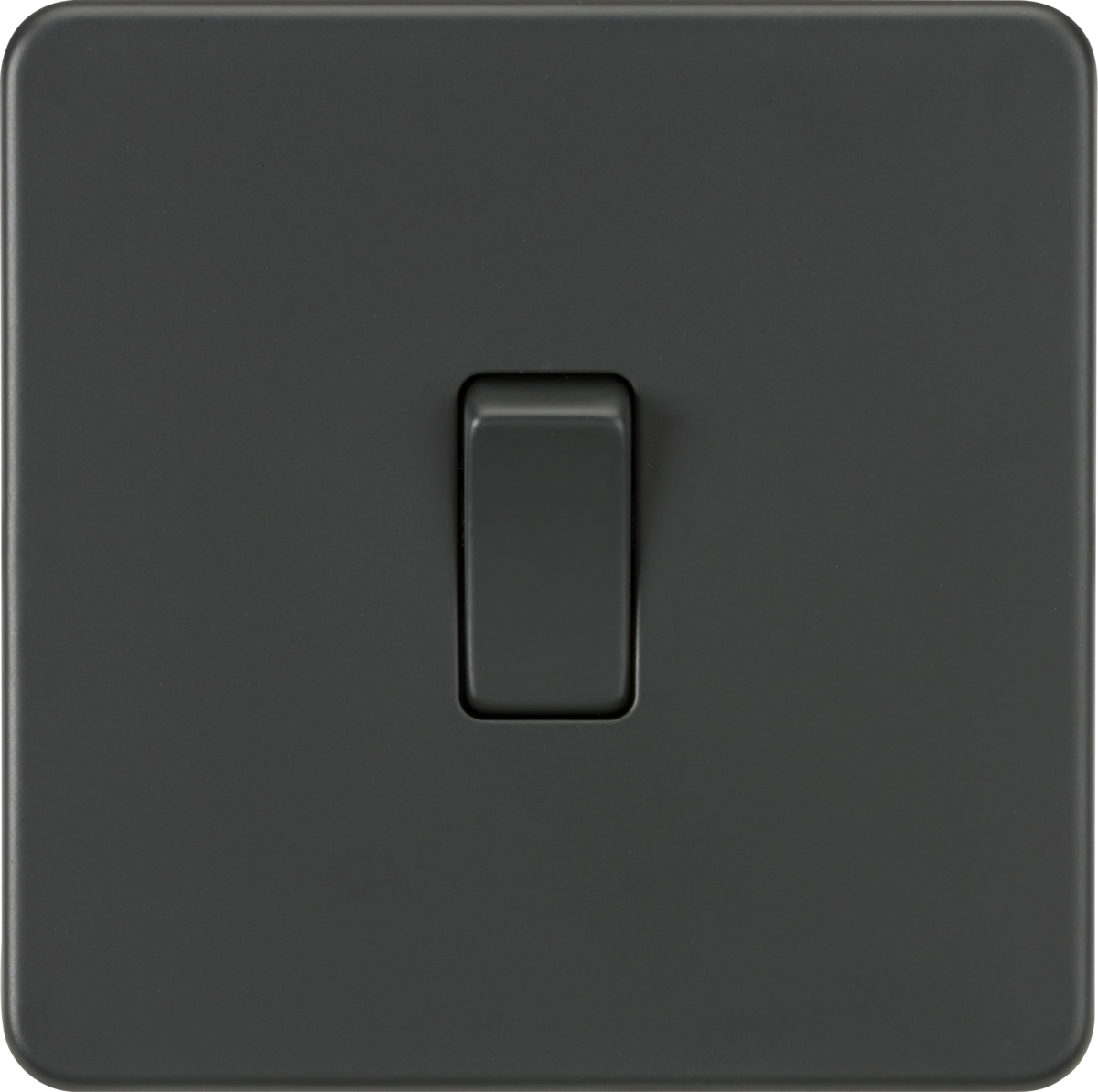

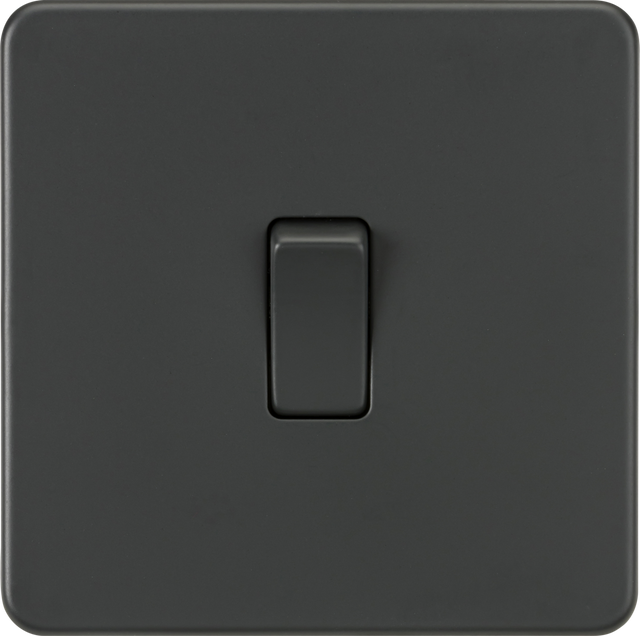

Knightsbridge: SF8341AT, 20A 1 Gang Double Pole Screwless Switch, Anthracite Finish, IP20, 230V, 25mm Minimum Mounting Depth
About this product
Presenting the 20A 1 Gang Double Pole Screwless Switch in a sophisticated Anthracite finish. This switch is perfect for your fixed appliances like water heaters and meets high standards for safety and design.
Key Features:- 20A Rated
- Double Pole
- Screwless Design with Gasket
- Complies with EN 60669-1
- Minimum Mounting Box Depth of 25mm
Ideal for both DIY and professional contractor installations. Ensure compliance with UK and EU standards for guarantees.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Anthracite |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

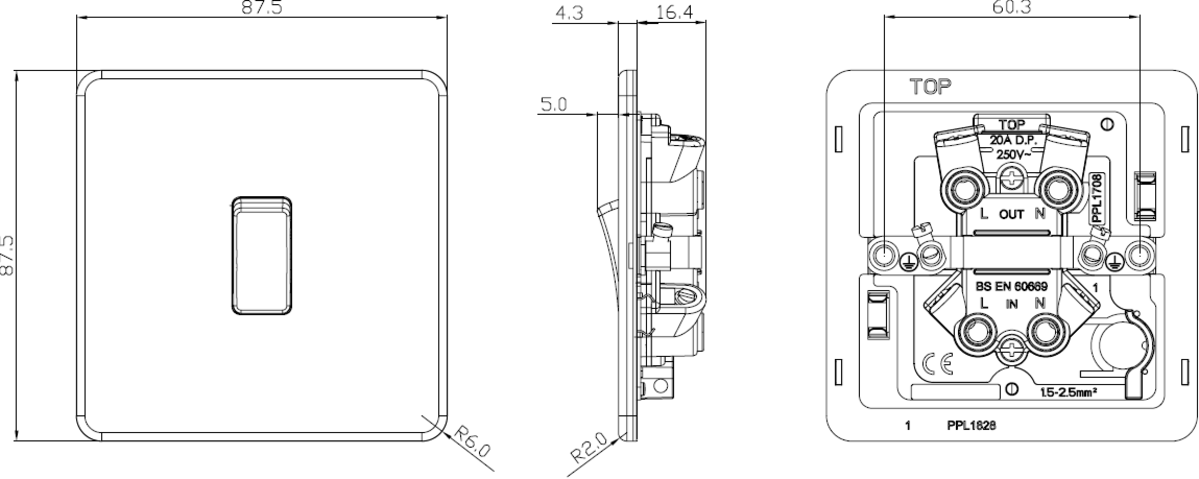

Dimensions
| Depth | 25.7 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 9.3 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 16.4 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|---|
| Neon Indicator | No |
20A 1G DP Switch - Anthracite features
