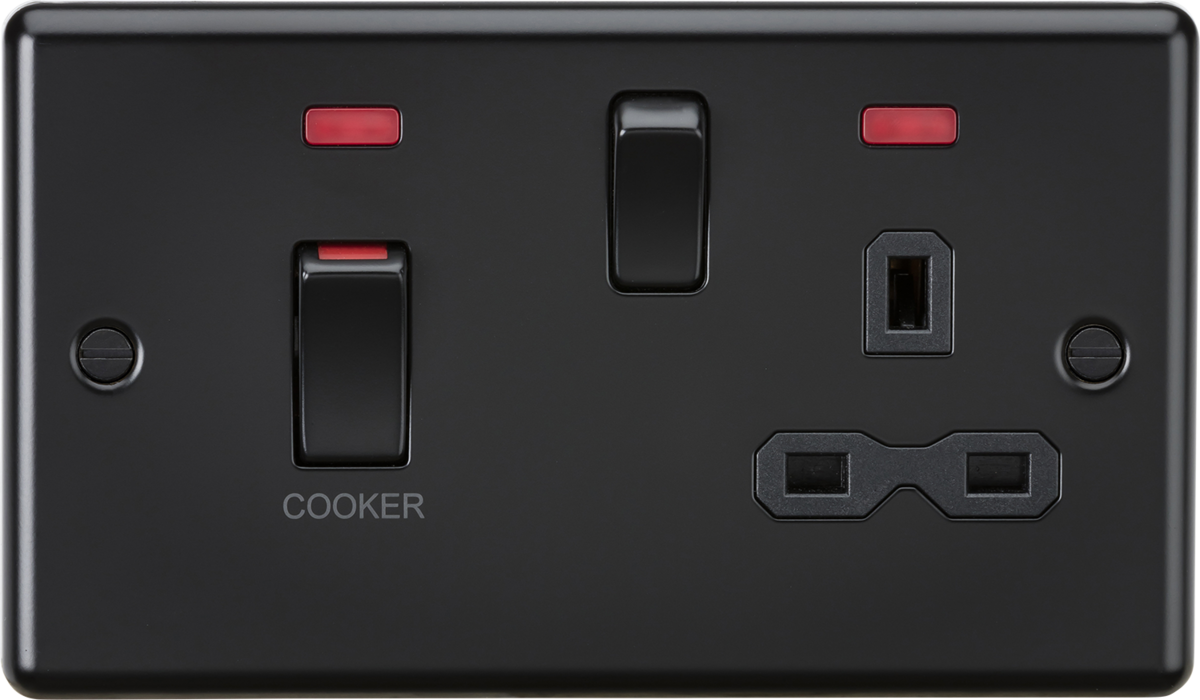

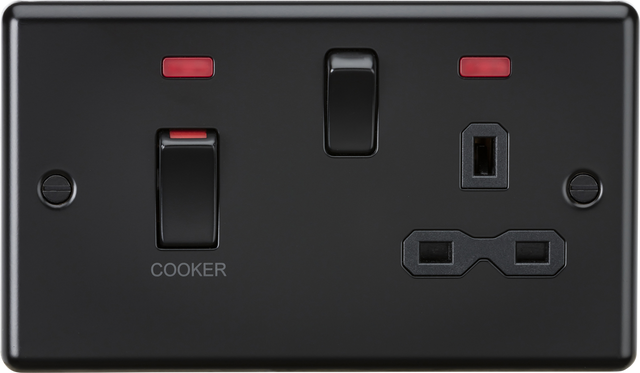

Matt Black 45A DP Switch & 13A Socket
The 45A Double Pole Switch and 13A Switched Socket with Neon Indicators in Matt Black is an essential addition for safely controlling your cooking appliances. The unit allows users to isolate the appliance, ensuring maintenance can be performed without risk of accidental activation.
- 45A double pole switch for robust control
- 13A switched socket for versatility
- With neon indicators for easy visibility
- Minimum mounting box depth of 47mm for installation
- Constructed from durable 304 stainless steel, ensuring longevity
Specifications
I
Matt Black
IP20
304 Stainless steel
230V 50Hz
Dimensions
31.51 mm
146.5 mm
87.75 mm
12.7 mm
7.5 mm
47mm
Wiring-accessories
Screw
Yes
Specifications
Class | I |
---|---|
Finish | Matt Black |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

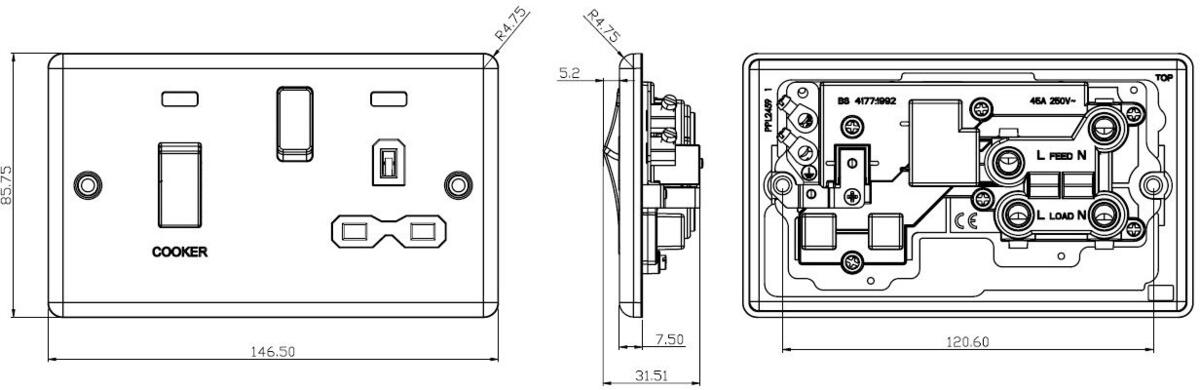

Dimensions
Depth | 31.51 mm |
---|---|
Width | 146.5 mm |
Height | 87.75 mm |
Projection | 12.7 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 47mm |
Wiring-accessories
Terminal | Screw |
---|---|
Neon Indicator | Yes |
Matt Black 45A DP Switch & 13A Socket features

Matt Black 45A Double Pole Switch & 13A Switched Socket with Neon Indicators, IP20, 304 Stainless Steel, 230V, CL83MNMBB
