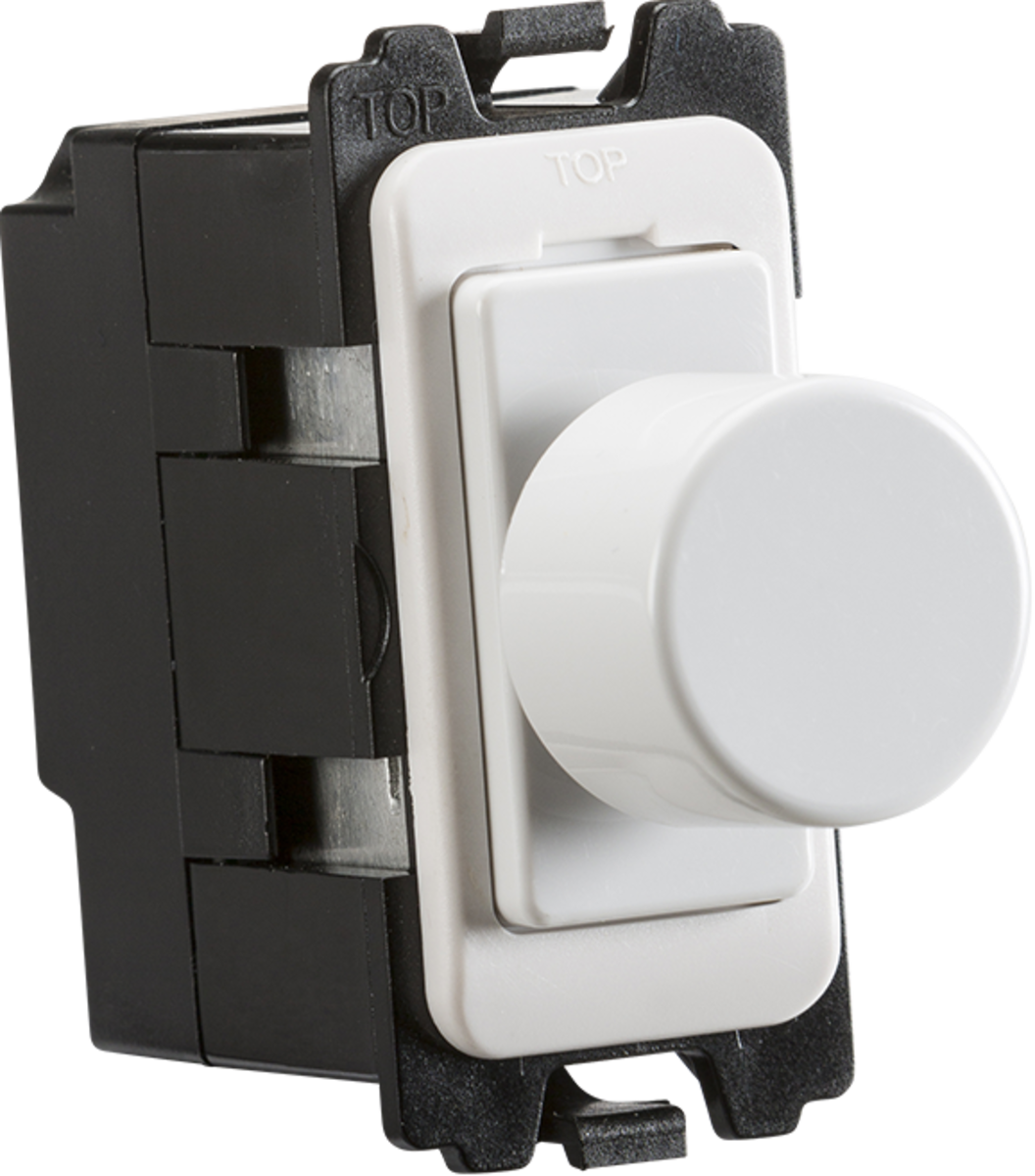

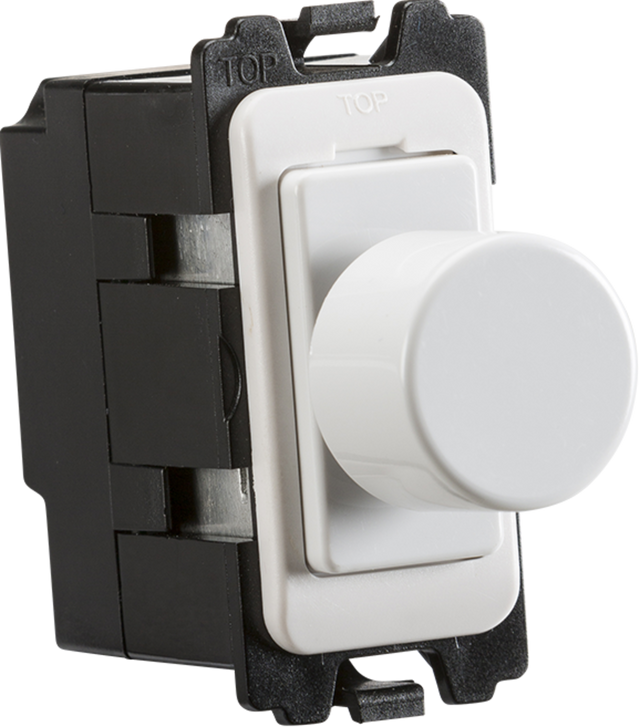

Knightsbridge: CUGM14, 2-Way LED Dimmer Module, 40-400W for Incandescent, 5-100W for LED, Leading Edge, White
About this product
This Knightsbridge 2-way dimmer module is designed for use with the curved grid system only. It features:
- Push on/off operation
- 40-400W rating for incandescent lamps
- 5-100W rating for LED lamps
- Leading edge technology
- Front mounting grid module
- Available in a white finish
- Safety compliance: IP20
Compatibility Check: Please check with the lamp manufacturer for compatibility. It is recommended to use a maximum of 10-12 lamps per grid dimmer to prevent inrush current problems.
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | White |
|---|---|
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |

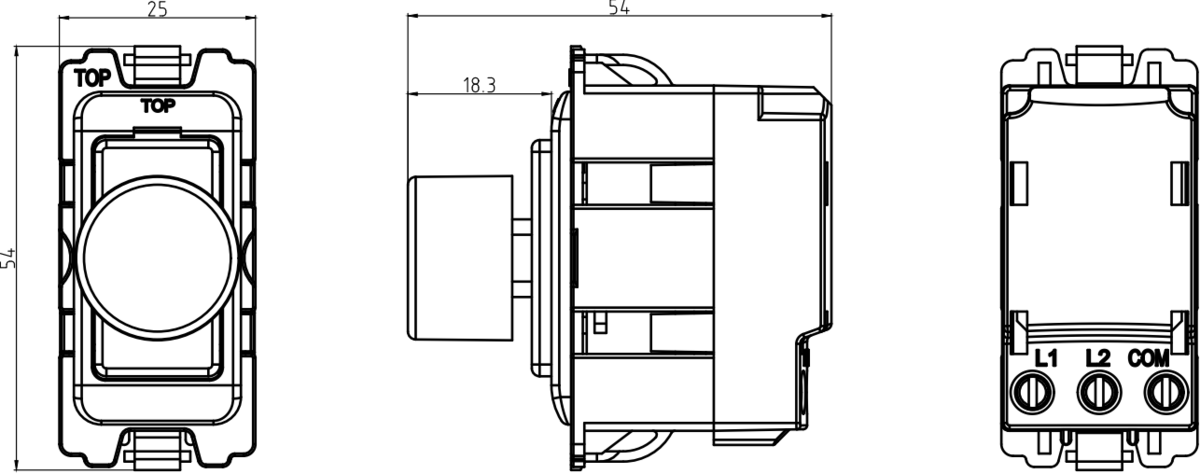

Dimensions
| Depth | 55 mm |
|---|---|
| Width | 25 mm |
| Height | 55 mm |
| Recessed Depth | 32 mm |
| Min. Mounting Box Depth | 35mm |
Wiring-accessories
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
|---|
2-way 40-400W (5-100W LED) Leading Edge Dimmer Module features







Knightsbridge: CUGM14, 2-Way LED Dimmer Module, 40-400W for Incandescent, 5-100W for LED, Leading Edge, White
