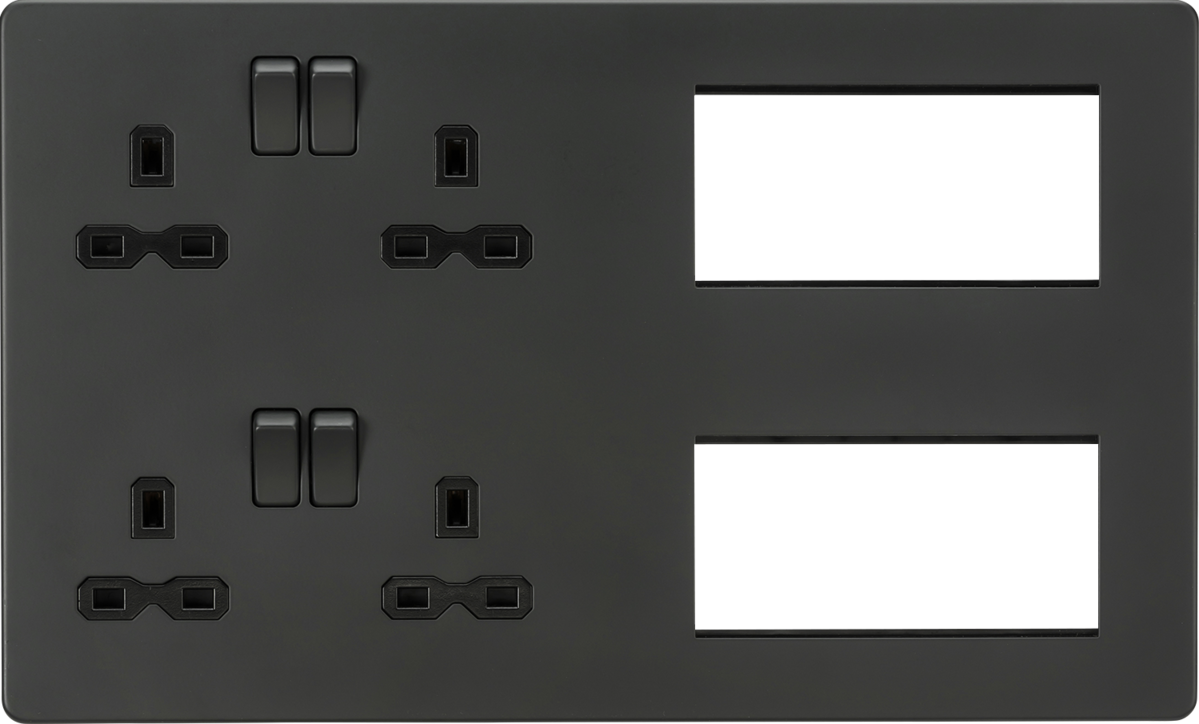

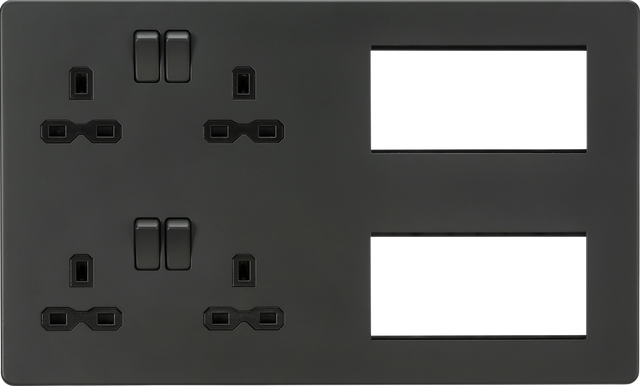

Screwless Multimedia Combination Plate - Anthracite
Essential for any major upgrade, renovation or new build. The Screwless Multimedia Combination Plate allows for a power and bespoke signal distribution solution to be combined in one area.
Compatible with our extensive range of modular inserts this plate can be configured to suit your requirements, be it Satellite TV, DAB, Telecoms, Networking or even USB Charging.
- Double Pole Switches
- 2 x 2G Double Sockets with Twin Earth
- Space for up to 8 x Euro module inserts (25 x 50mm)
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Anthracite |
IP Rating | IP20 |
Construction | SPCC Steel |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 30.9 mm |
---|---|
Width | 297.5 mm |
Height | 179.5 mm |
Projection | 9.7 mm |
Plate Depth | 4.5 mm |
Recessed Depth | 21.2 mm |
Min. Mounting Box Depth | 47mm |
Wiring-accessories
Earth Terminal | Yes |
---|
Screwless Multimedia Combination Plate - Anthracite features

Screwless Multimedia Combination Plate, Anthracite, 2G Double Sockets, Up to 8 Modular Inserts, 230V, 13A, SFR298AT
