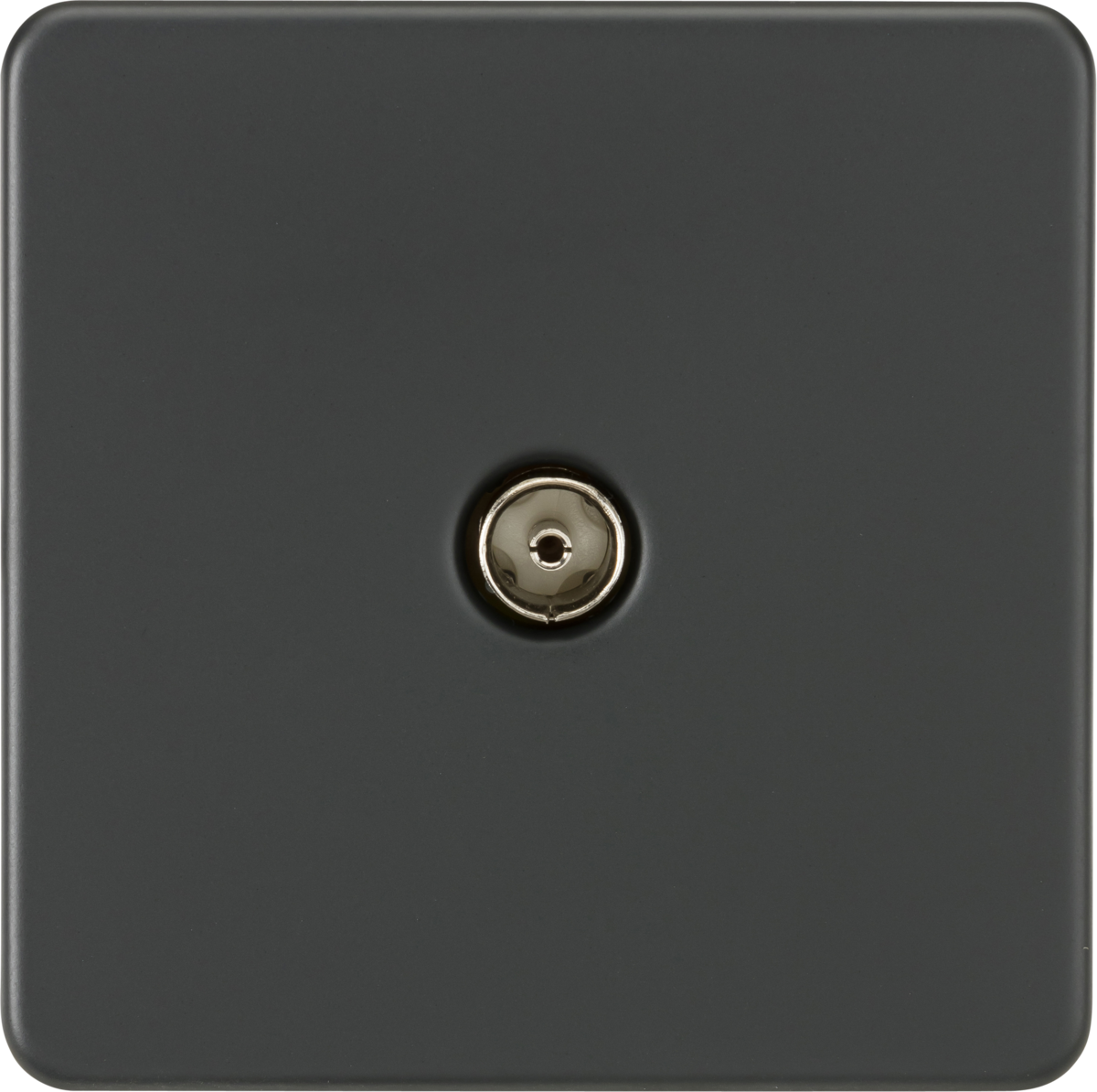

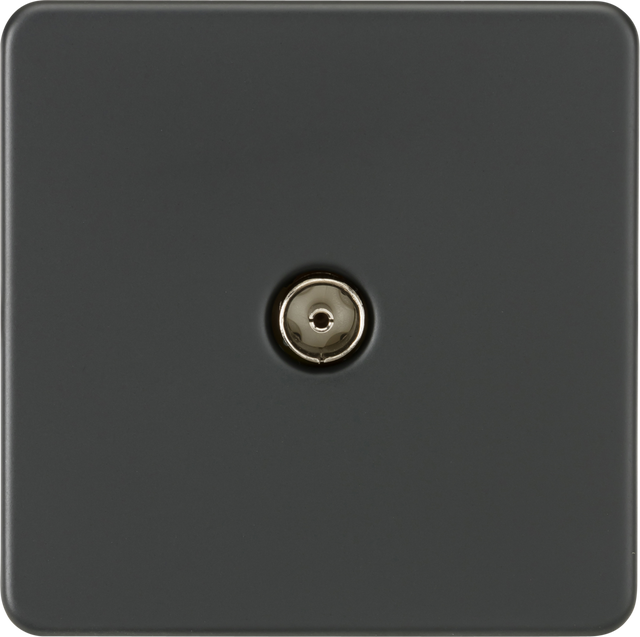

TV Outlet Non-Isolated Anthracite
Screwless Design
£
6
52
(Incl. VAT)
RRP: £7.24
WME Care
About this product
The TV Outlet (Non-Isolated) in Anthracite is an ideal solution for standard TV/Coax connections. It features a flawless screwless design, ensuring a modern aesthetic.
- Coaxial TV outlet
- Non-isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm
£
6
52
WME Care
FAST delivery by Order within
Get breakdown support
Warranty plans available. See terms
Technical Details
Specifications
Finish
Anthracite
IP Rating
IP20
Construction
SPCC Steel

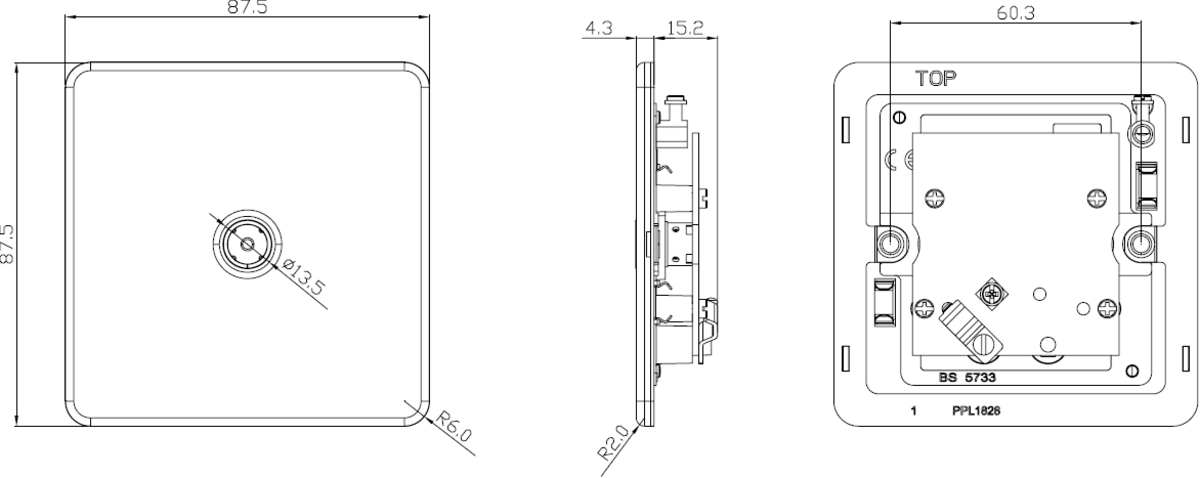

Dimensions
Depth
19.5 mm
Width
87.5 mm
Height
87.5 mm
Projection
4.3 mm
Plate Depth
4.3 mm
Recessed Depth
15.2 mm
Min. Mounting Box Depth
25mm
Wiring-accessories
Terminal
Clamp & Screw Terminal
Earth Terminal
Yes
TV Connection Type
Female
Specifications
Finish | Anthracite |
---|---|
IP Rating | IP20 |
Construction | SPCC Steel |
Dimensions
Depth | 19.5 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 15.2 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Clamp & Screw Terminal |
---|---|
Earth Terminal | Yes |
TV Connection Type | Female |
TV Outlet Non-Isolated Anthracite features

Anthracite Screwless TV Outlet, Coaxial Connection, Non-Isolated, BS5733 Certified, 87.5mm x 87.5mm, SF0100AT
