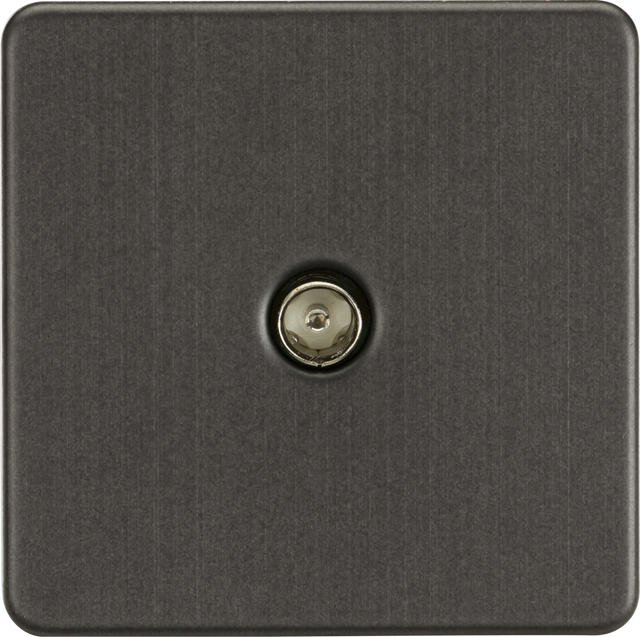

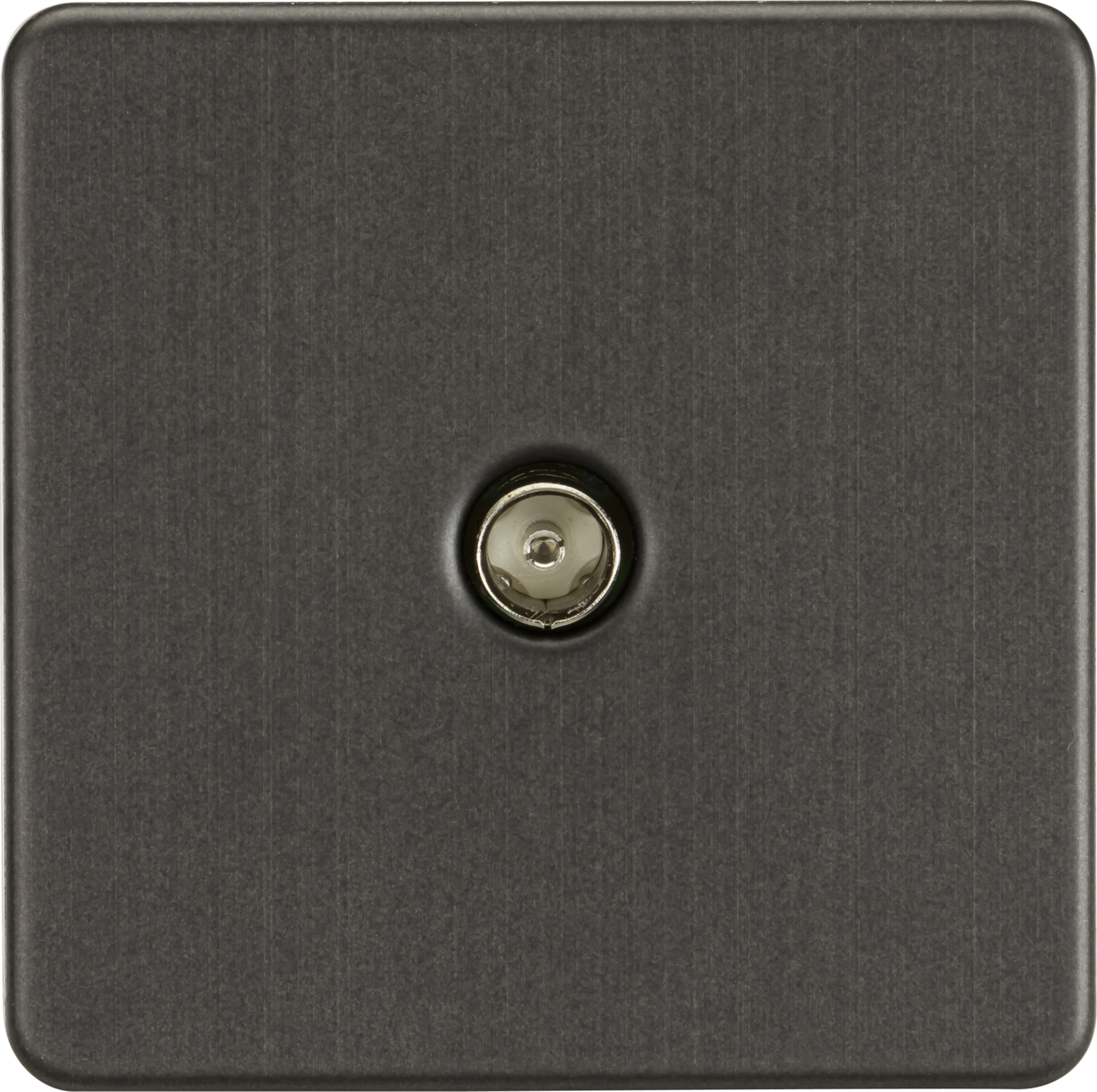

Smoked Bronze Screwless TV Outlet
Introducing our premium TV Outlet in a contemporary Smoked Bronze finish. This outlet is designed specifically for standard TV/Coax connections and features a sleek screwless design that enhances any installation.
- Coaxial TV outlet (non-isolated)
- Flawless screwless low profile design with built-in gasket
- Meets BS5733 standards for durability and safety
- Minimum mounting box depth of 25mm required
Perfect for both DIY and professional installation, this unit is not only a functional choice but also a stylish addition to any room.
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Smoked Bronze |
---|---|
IP Rating | IP20 |
Construction | 201 Stainless steel |

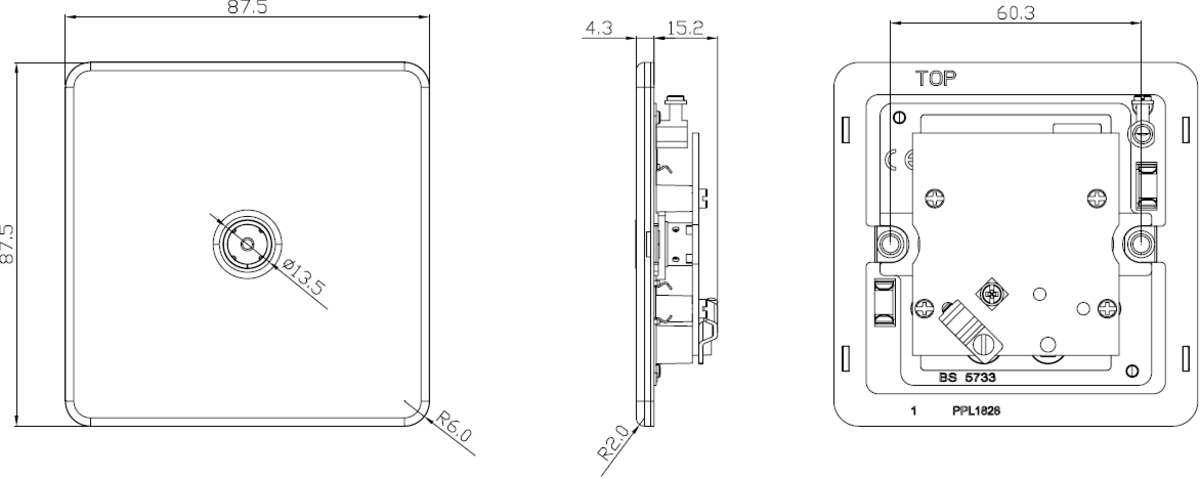

Dimensions
Depth | 19.5 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 15.2 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Clamp & Screw Terminal |
---|---|
Earth Terminal | Yes |
TV Connection Type | Female |
Smoked Bronze Screwless TV Outlet features

Smoked Bronze Screwless TV Outlet, Non-Isolated, 1 Gang, Coaxial Connection, BS5733 Certified, SF0100SB
