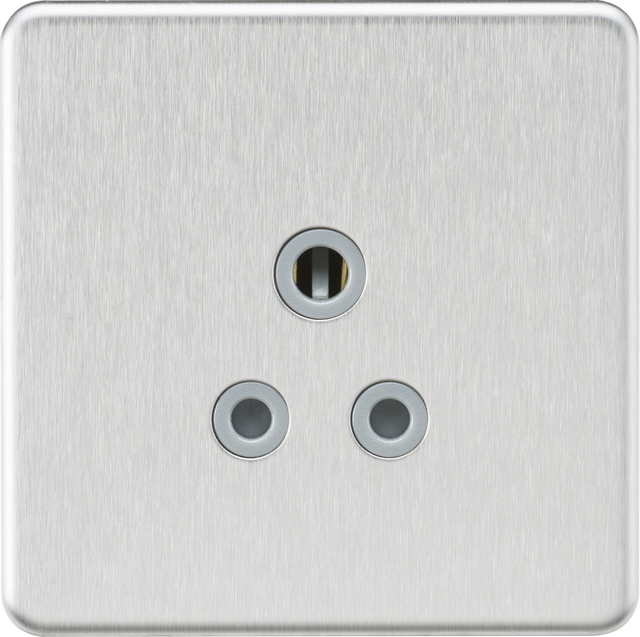

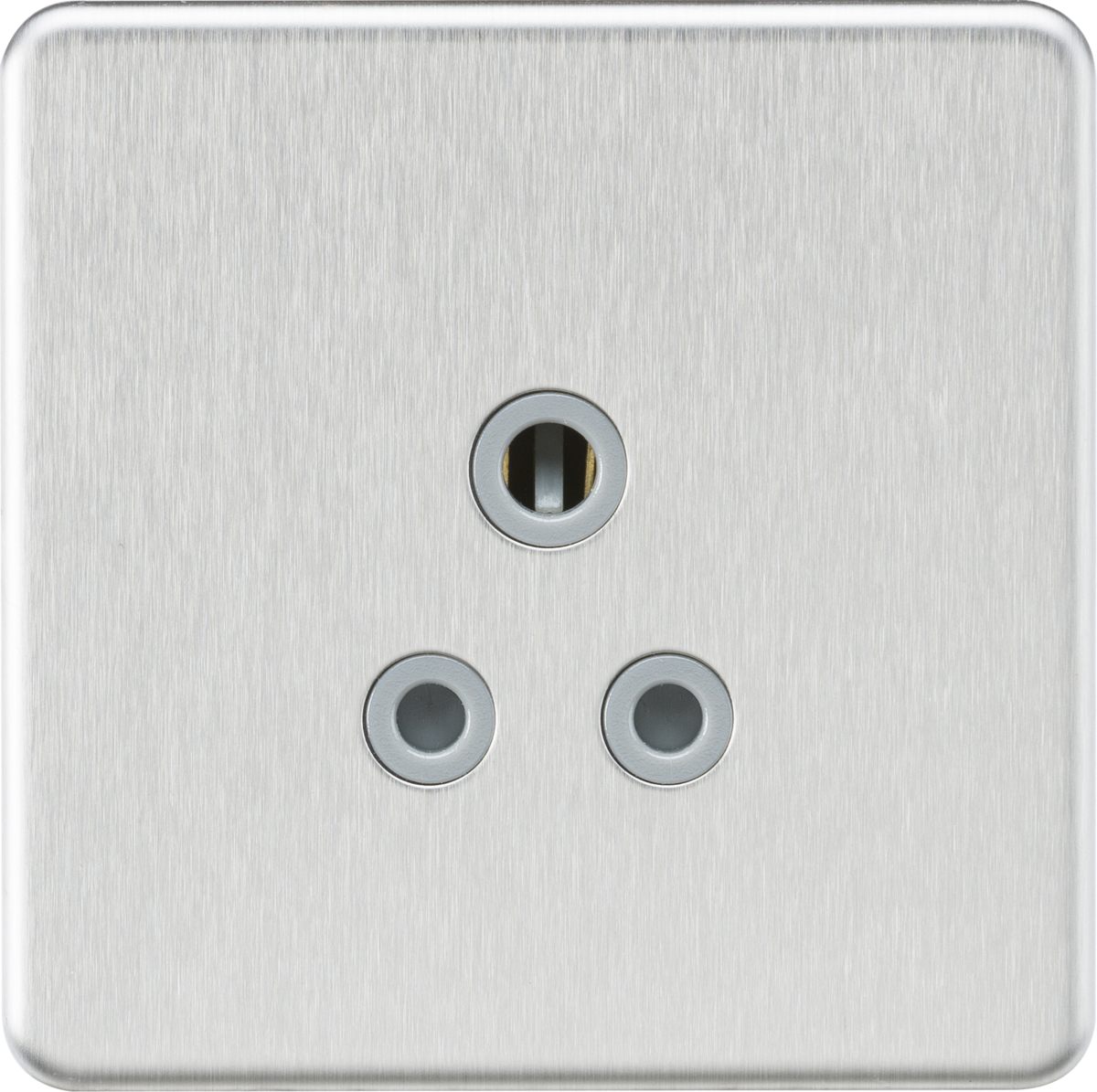

5A Unswitched Round Socket - Brushed Chrome
The 5A Unswitched Round Socket in Brushed Chrome with Grey Insert combines style with functionality, making it an ideal choice for custom lighting solutions.
- 5A round pin socket
- Unswitched design for safety and convenience
- Screwless low profile with built-in gasket for a sleek finish
- Certified to BS 546 for peace of mind
- Requires a minimum mounting box depth of 25mm
Perfect for both DIY projects and professional installations. Adheres to UK compliance standards and offers reliable performance.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

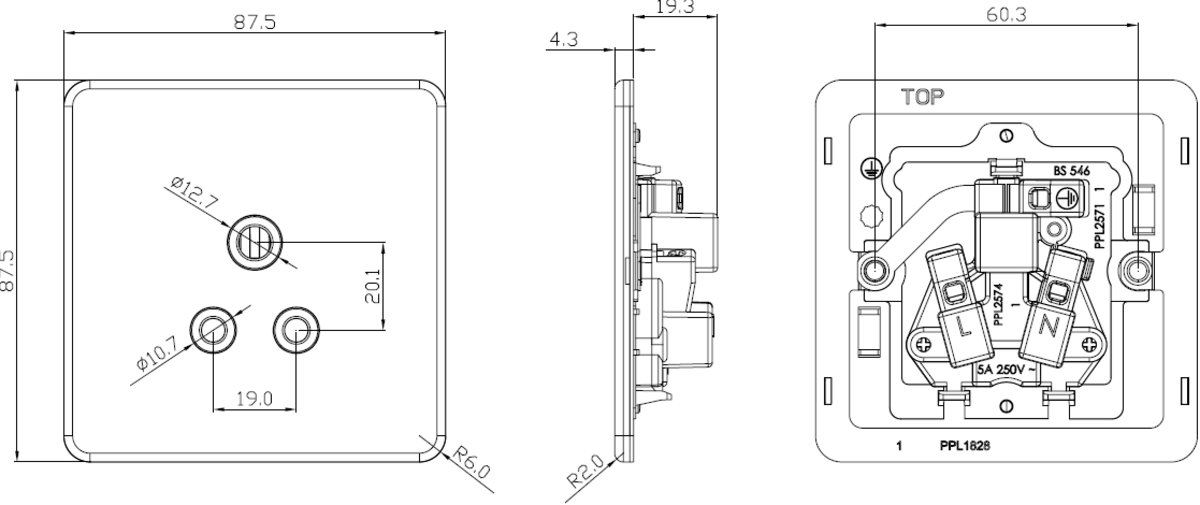

Dimensions
Depth | 23.6 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 19.3 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
5A Unswitched Round Socket - Brushed Chrome features

5A Unswitched Round Socket, Brushed Chrome Finish, Grey Insert, Low Profile, BS 546 Certified, 230V, SF5ABCG
