Knightsbridge: SF5AMW, 5A Unswitched Round Socket, Matt White, Screwless Design, BS 546 Certified, 230V, 87.5mm x 87.5mm x 23.6mm
About this product
The 5A Unswitched Round Socket in a sleek Matt White finish is ideal for customised lighting solutions.
- 5A round pin socket for reliable use
- Unswitched design for user convenience
- Screwless low profile design with a built-in gasket, ensuring aesthetic appeal
- Certified to BS 546 for safety and compliance
- Minimum mounting box depth of 25mm for easy installation
This socket is perfect for both DIY and commercial contractor applications, enhancing the look of any interior while meeting UK/EU compliance standards.
Specifications
Dimensions
Wiring-accessories
Specifications
| Class | I |
|---|---|
| Finish | Matt White |
| IP Rating | IP20 |
| Construction | SPCC Steel |
| Primary Voltage | 230V 50Hz |

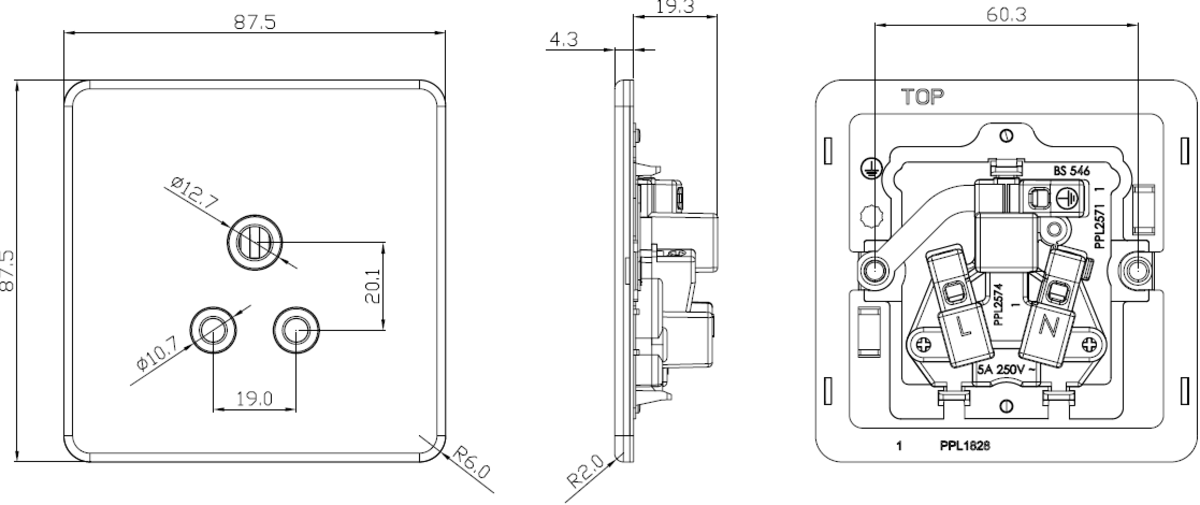

Dimensions
| Depth | 23.6 mm |
|---|---|
| Width | 87.5 mm |
| Height | 87.5 mm |
| Projection | 4.3 mm |
| Plate Depth | 4.3 mm |
| Recessed Depth | 19.3 mm |
| Min. Mounting Box Depth | 25mm |
Wiring-accessories
| Earth Terminal | Yes |
|---|
5A Unswitched Round Pin Socket - Matt White features
