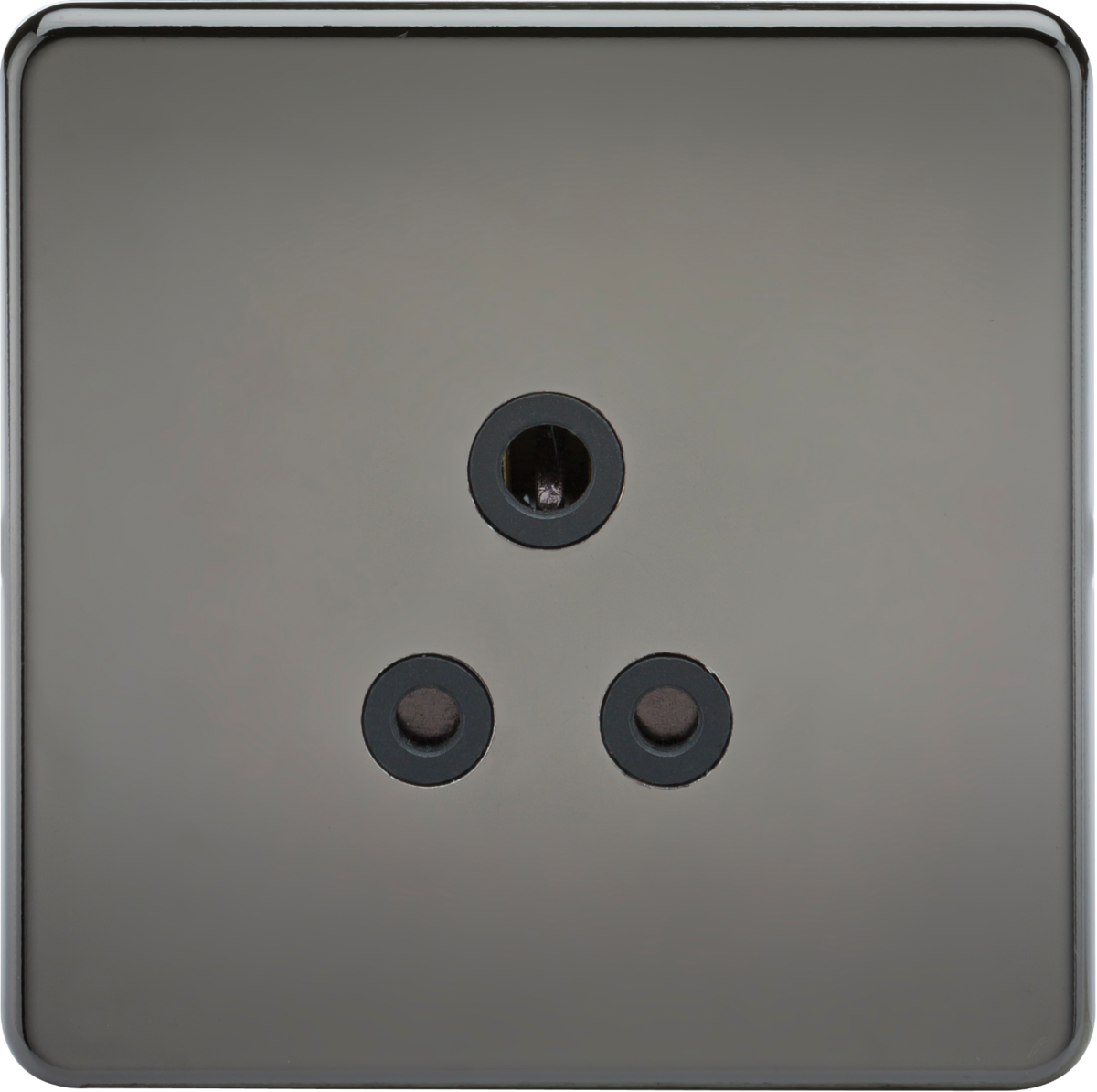

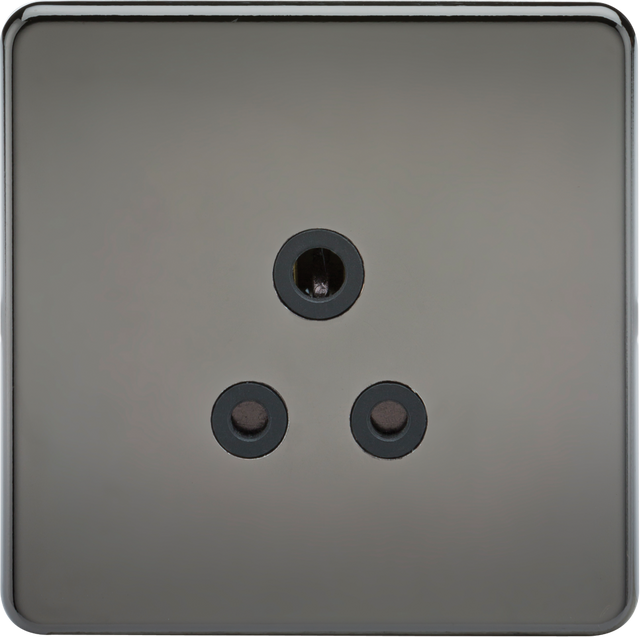

Black Nickel 5A Unswitched Socket - Screwless Design
Introducing the 5A Unswitched Socket in Black Nickel with Black Insert, designed for modern lighting solutions.
- 5A round pin socket
- Unswitched for flexibility
- Screwless low profile design with built-in gasket
- Certified to BS 546 for safety and compliance
- Minimum mounting box depth of 25mm
This socket is ideal for residential and commercial installations, offering a sleek finish that complements contemporary decor.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Black Nickel |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

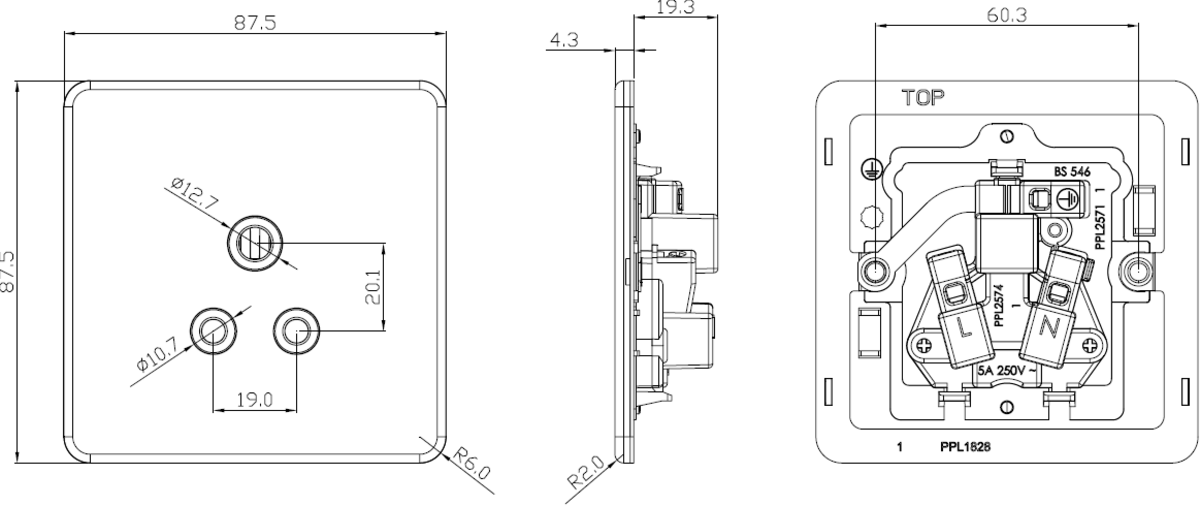

Dimensions
Depth | 23.6 mm |
---|---|
Width | 87.5 mm |
Height | 87.5 mm |
Projection | 4.3 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 19.3 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Earth Terminal | Yes |
---|
Black Nickel 5A Unswitched Socket - Screwless Design features

5A Unswitched Socket, Black Nickel with Black Insert, Screwless Design, BS 546 Certified, 230V, SF5ABN
