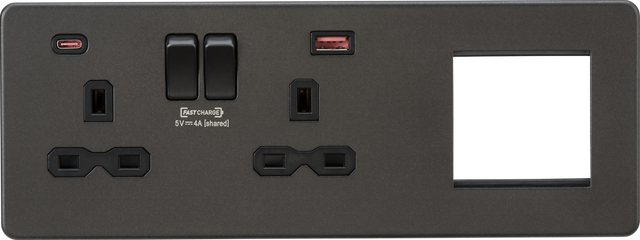

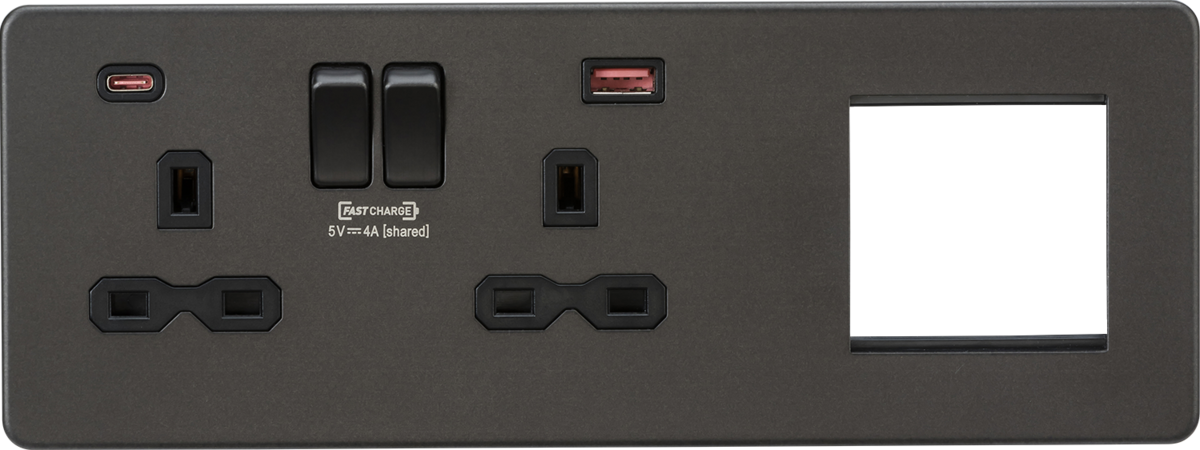

Screwless USB Double Socket with Dual Type A+C
This 13A 2G DP Socket with Dual USB A+C is essential for any major upgrade, renovation, or new build. The Screwless Socket and 2G Modular Combination Plate allows for a power, fast charge USB and bespoke modular solutions to be combined in one area.
- Fast Charging: Capable of delivering a 0-50% charge to compatible USB devices in under 30 mins.
- Two USB Options: Offers legacy USB-A for older phones and the latest USB-C for modern devices.
- Modular Compatibility: Can be configured to suit your requirements with our extensive range of modular inserts.
Important Notes:
- Only use certified USB cables for safety and optimum performance.
- The device controls the power being drawn, not the socket. Most compatible devices will only activate fast charge between 0-70% battery power.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Smoked Bronze |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |

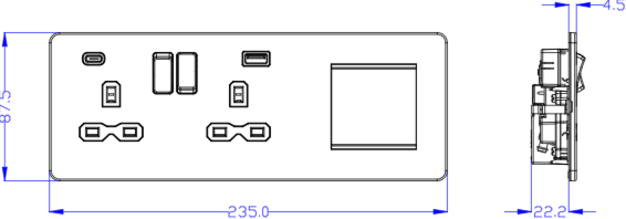

Dimensions
Depth | 31.7 mm |
---|---|
Width | 235 mm |
Height | 87.5 mm |
Projection | 9.5 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 22.2 mm |
Min. Mounting Box Depth | 35mm |
Wiring-accessories
Fastcharge | Yes |
---|---|
Earth Terminal | Yes |
Screwless USB Double Socket with Dual Type A+C features

13A 2G DP Socket with Dual USB A+C, Screwless Design, Smoked Bronze Finish, 230V 50Hz, SFR992LSB
