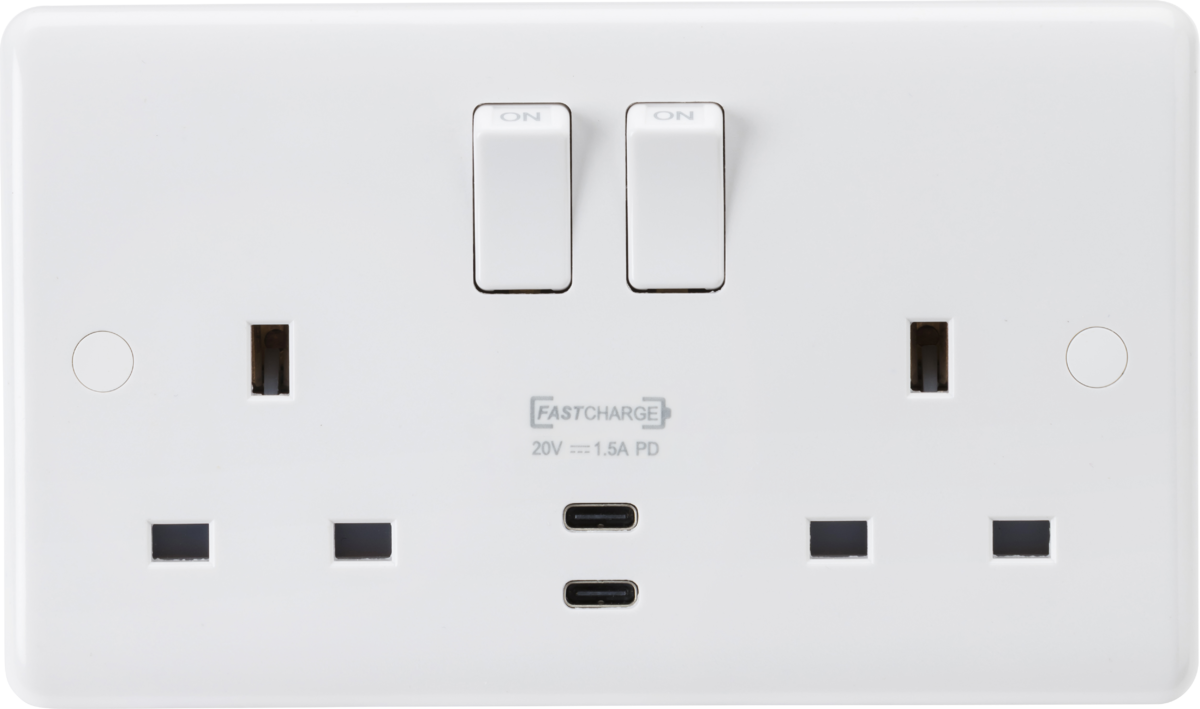

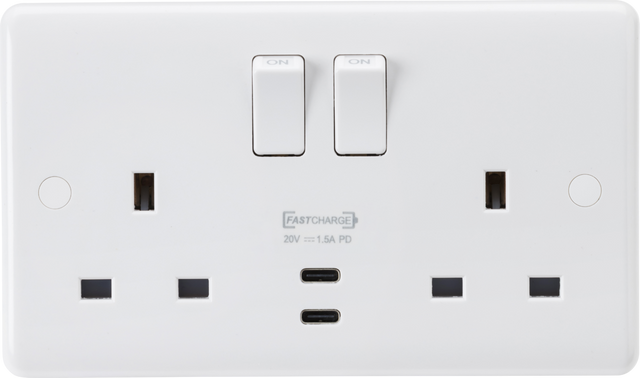

13A 2G DP Switched Socket with Dual USB-C
The 13A 2G DP Switched Socket with built-in Dual USB-C charging ports offers a sleek design with gentle contours and rounded edges. Here are some key features:
- 13A rated
- Double Pole operation for additional safety
- Fast charging capabilities with a maximum output of 30W
- Supports Quick Charge (QC), USB-PD, and PPS
- Easy installation with top access to captive terminals
- Anti-microbial properties tested to ISO 22196:2011
Compliance with UK regulations is ensured. Always use certified USB cables for safety and compatibility. A minimum mounting box depth of 25-35mm is required, dependent on wiring conditions.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Thermoset resin |
Primary Voltage | 230V 50Hz |
Dimensions
Width | 147 mm |
---|---|
Height | 86 mm |
Projection | 7 mm |
Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
Terminal | Captive |
---|---|
Fastcharge | Yes |
Earth Terminal | Yes |
Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
13A 2G DP Switched Socket with Dual USB-C features

13A 2G DP Switched Socket with Dual USB-C Charging, 30W Fast Charge, White, CU9930
