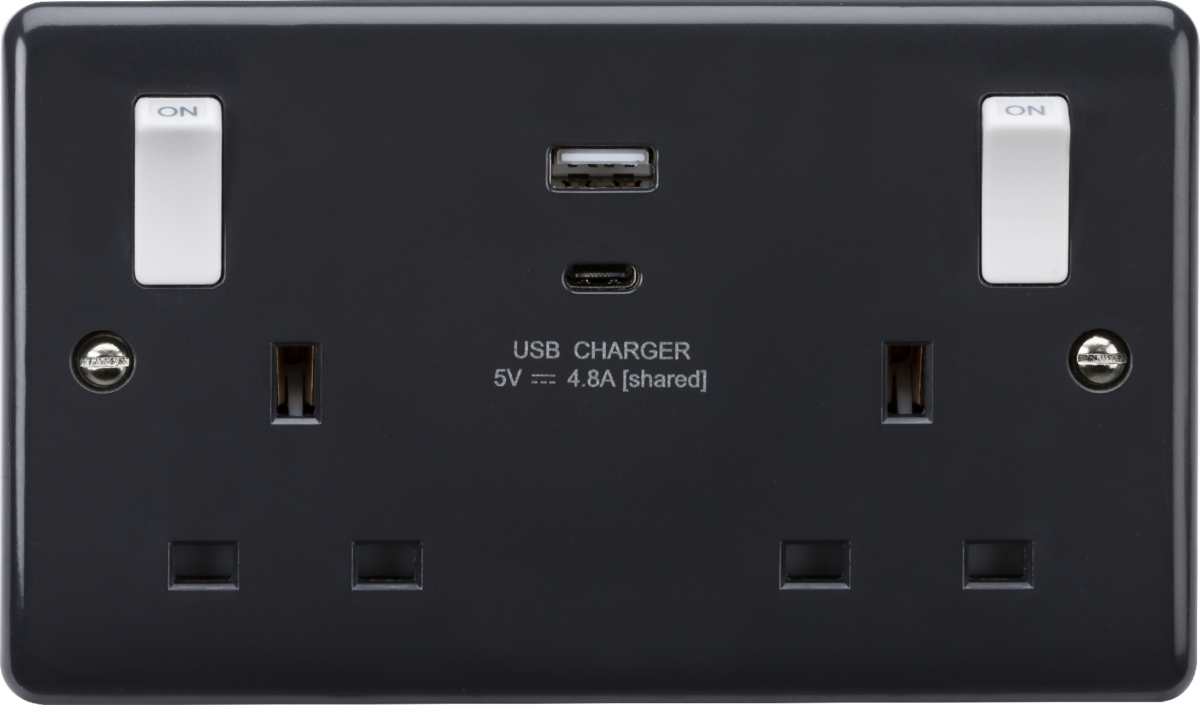

13A 2G Switched Socket with Dual USB
The Curved Edge range has been expanded to include a range of wiring accessories that comply with current Building Regulations Part M.
It is recommended that switches contrast with the front plate which in turn contrasts with the wall. This range satisfies both recommendations with a Light Reflectance Value (LRV) of approx. 8.9 (Part M recommends a contrast of 30% LRF between front plate and wall).
- Inherent Anti-microbial properties – 3rd party tested
- Certified to all relevant British Safety standards
Specifications
Dimensions
Wiring-accessories
Specifications
Finish | Anthracite |
---|---|
IP Rating | IP20 |
Construction | Thermoset resin |
Primary Voltage | 230V 50Hz |

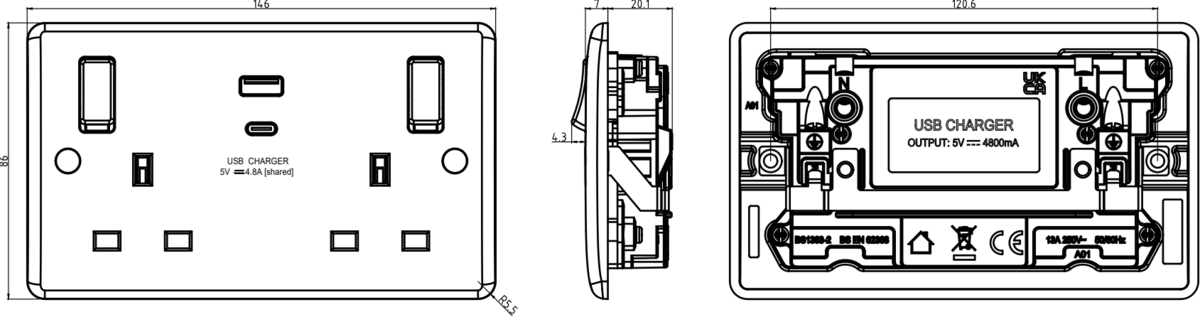

Dimensions
Width | 146 mm |
---|---|
Height | 86 mm |
Projection | 7 mm |
Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
Earth Terminal | Yes |
---|---|
Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
13A 2G Switched Socket with Dual USB features

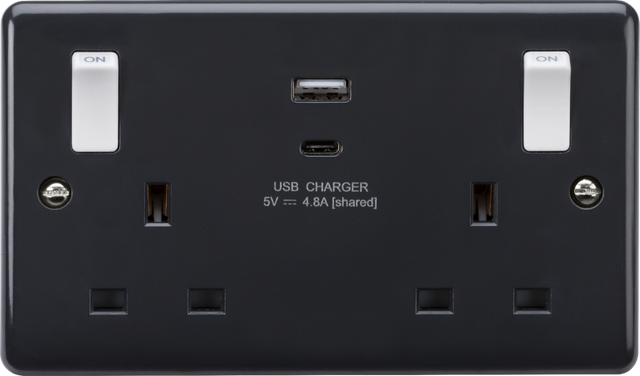

13A 2G Switched Socket with Dual USB A+C, Anthracite Finish, Part M Compliant, 230V, PM9002
