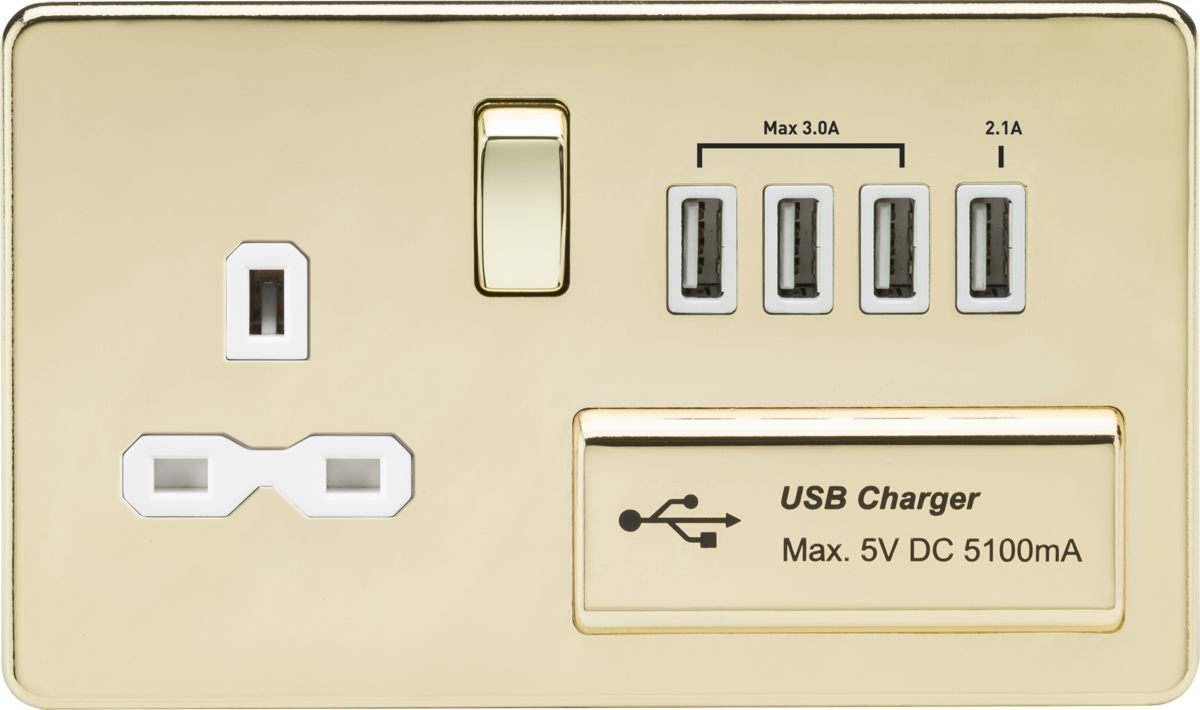

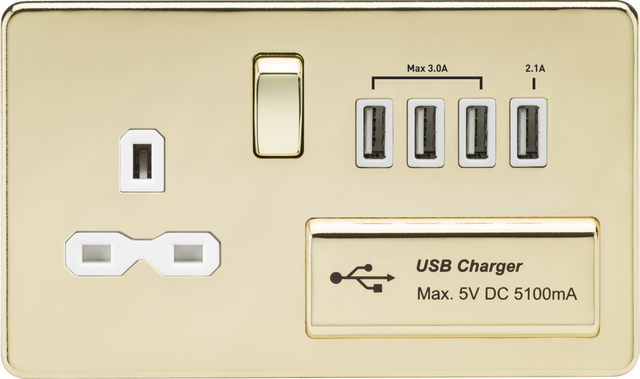

Polished Brass USB Socket & Charger
The 13A Switched Socket with Quad USB-A is the ideal solution for multiple users, combining a standard socket with a Quad USB charger.
- Rated at 5V DC 5.1A (shared)
- Perfect for coffee shops, foyers, receptions, and hotel rooms
- Screwless low profile design with built-in gasket
- Certified to BS1363-2 and EMC certified
- Minimum mounting box depth: 25-35mm (dependent on wiring conditions)
Always use certified USB cables for safety and compatibility.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Polished Brass |
IP Rating | IP20 |
Construction | 201 Stainless steel |
Primary Voltage | 230V 50Hz |
Dimensions
Depth | 30.3 mm |
---|---|
Width | 147.5 mm |
Height | 87.5 mm |
Projection | 9.5 mm |
Plate Depth | 4.3 mm |
Recessed Depth | 20.8 mm |
Min. Mounting Box Depth | 25-35mm (dependent on wiring conditions) |
Wiring-accessories
Earth Terminal | Yes |
---|
Polished Brass USB Socket & Charger features

13A Polished Brass Switched Socket with Quad USB Charger, Screwless Design, BS1363-2 Certified, 5V 5.1A, SFR7USB4PBW
